26 PNEG-1832 72' Dura-Lok Plank and Support Manual
6. Layouts
72'-14" Rail Spacing Layout

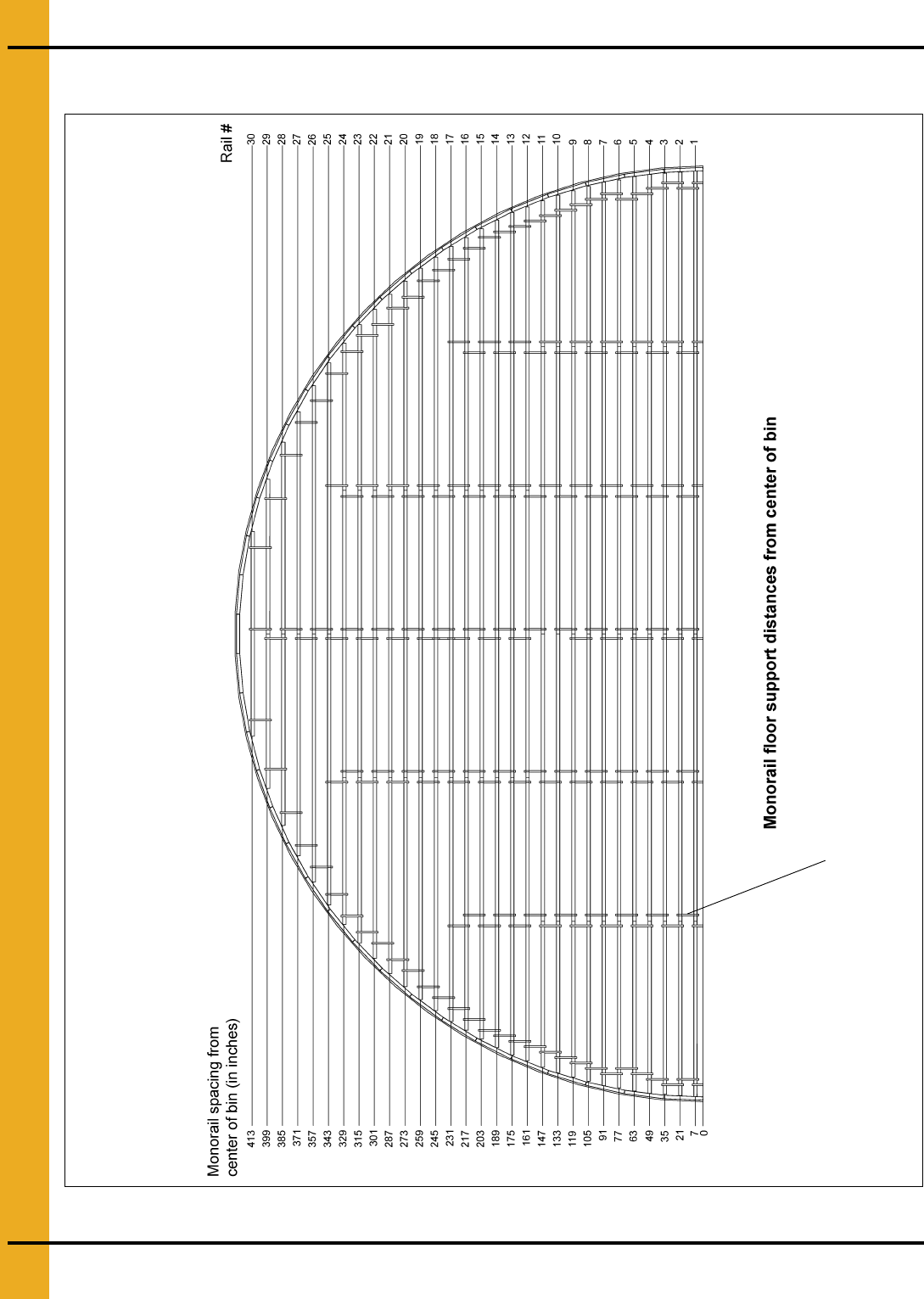

Figure 6A 72' Diameter 14" Rail Spacing
NOTE: This depicts monorail spacings only. Leg spacing is dependant
on eave height. See Page 18 for leg and rail spacing chart.
Tie bar (See Page 15 for
installation detail.)
