6. Layouts

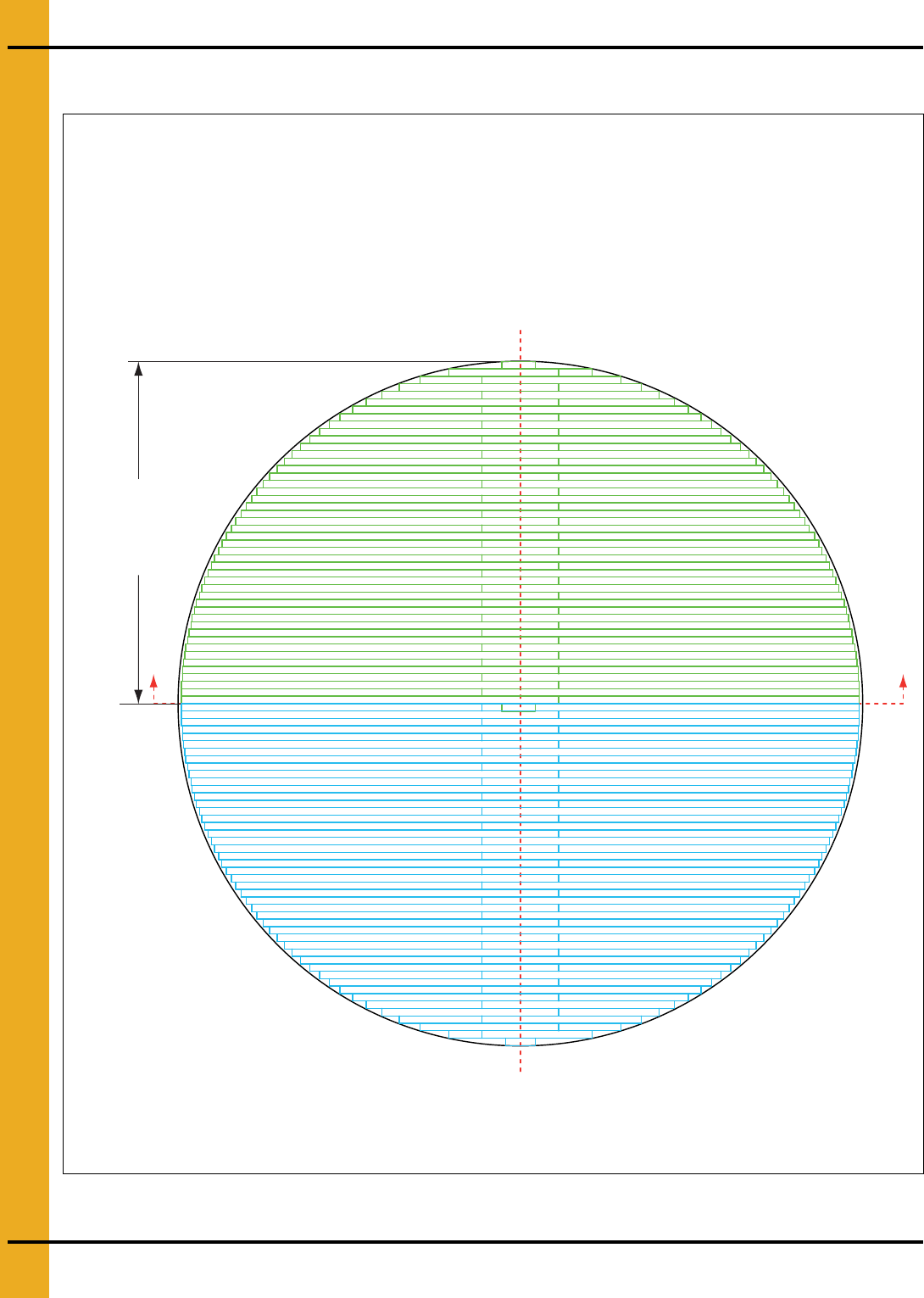

54' Floor Bundle Layout
Figure 6O 54' Plank Layout Bundles
NOTE: The 54' floor is split up into two (2) bundles, two (2) of which are identical to each other. The split of the
floor is staggered from one 7" plank to the next. The bundle is arranged so that the “A” plank is installed together
with the “B” plank.
Bundle A
Bundle B
26'-83" Critical
starting
dimension
for first plank
