6. Layouts

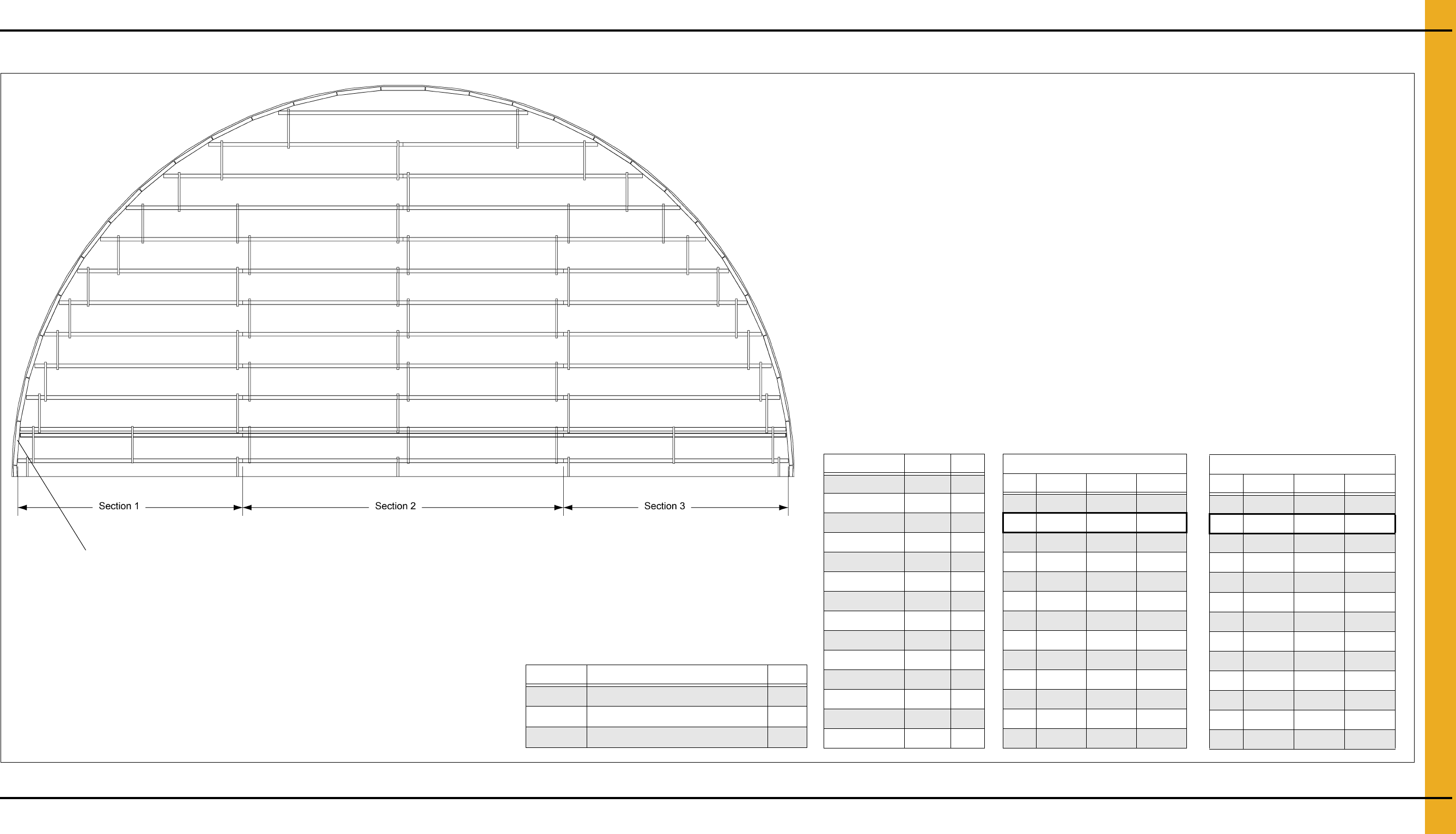

54'-26" Monorail Spacing Layout
Figure 6N 54' Diameter Bin with 26" Monorail Spacing
Part # Description Qty
FL-404-26 26" Monorail Tie Bar 110
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 80
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 450
54' Diameter 26" Spacing
Measurement in Inches
Rail # Section 1 Section 2 Section 3
1 185 264 185
* 2 183 264 183
3 183 264 183
4 178 264 178
5 171 264 171
6 163 264 163
7 151 264 151
8 136 264 136
9 249 249 0
10 228 228 0
11 197 197 0
12 160 160 0
13 205 0 0
16.46 m Diameter 66.04 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2 Section 3
1 469.9 670.56 469.9
* 2 464.82 670.56 464.82
3 464.82 670.56 464.82
4 452.12 670.56 452.12
5 434.34 670.56 434.34
6 414.02 670.56 414.02
7 383.54 670.56 383.54
8 345.44 670.56 345.44
9 632.46 632.46 0
10 579.12 579.12 0
11 500.38 500.38 0
12 406.4 406.4 0
13 520.7 0 0
NOTE: Fifty five (55) total outer perimeter 3' monorail
pieces. See Page 17 for leg support details.
* NOTE: This special monorail run is used
to support the floor plank at the split.
Bill of Materials
Part # Length Qty
A-22MONO 264 16
A-20.75MONO 249 4
A-19MONO 228 4
A-17.08MONO 205 2
A-16.4MONO 197 4
A-15.41MONO 185 4
A-15.25MONO 183 8
A-14.83MONO 178 4
A-14.25MONO 171 4
A-13.58MONO 163 4
A-13.3MONO 160 4
A-12.58MONO 151 4
A-11.3MONO 136 4
A-3MONO 36 73
