6. Layouts

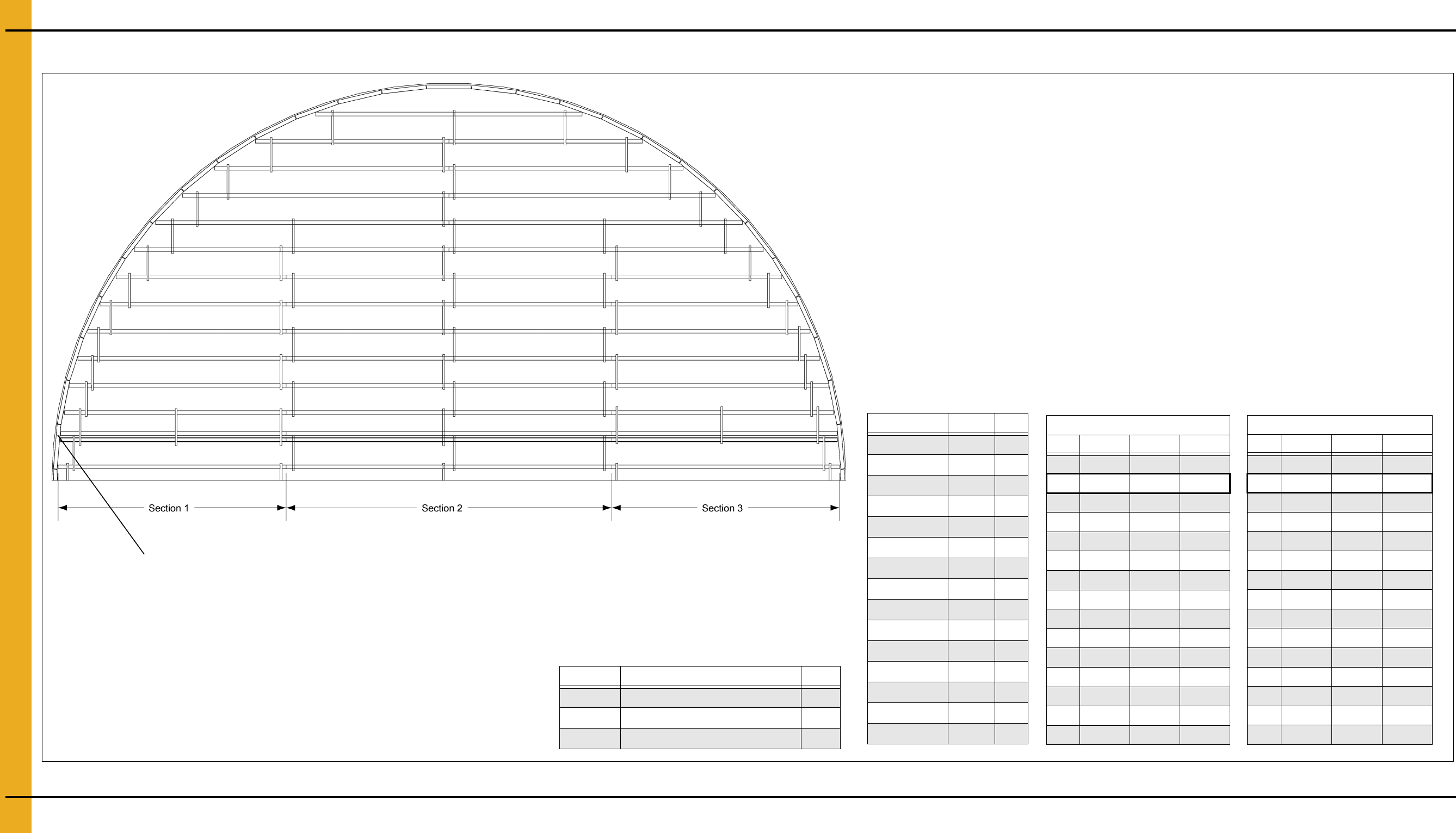

54'-22" Monorail Spacing Layout
Figure 6K 54' Diameter Bin with 22" Monorail Spacing
Part # Description Qty
FL-404-22 22" Monorail Tie Bar 130
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 80
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 530
Bill of Materials
Part # Length Qty
A-22MONO 264 18
A-21.25MONO 255 4
A-19.83MONO 238 4
A-18MONO 216 6
A-15.83MONO 190 4
A-15.41MONO 185 4
A-15.25MONO 183 8
A-15MONO 180 4
A-14.67MONO 176 4
A-14.08MONO 169 4
A-13.42MONO 161 4
A-13.1MONO 157 4
A-12.58MONO 151 4
A-11.5MONO 138 4
A-3MONO 36 73
54' Diameter 22" Spacing
Measurement in Inches
Rail # Section 1 Section 2 Section 3
1 185 264 185
* 2 183 264 183
3 183 264 183
4 180 264 180
5 176 264 176
6 169 264 169
7 161 264 161
8 151 264 151
9 138 264 138
10 255 255 0
11 238 238 0
12 216 216 0
13 190 190 0
14 157 157 0
15 216 0 0
16.46 m Diameter 55.88 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2 Section 3
1 469.9 670.56 469.9
* 2 464.82 670.56 464.82
3 464.82 670.56 464.82
4 457.2 670.56 457.2
5 447.04 670.56 447.04
6 429.26 670.56 429.26
7 408.94 670.56 408.94
8 383.54 670.56 383.54
9 350.52 670.56 350.52
10 647.7 647.7 0
11 604.52 604.52 0
12 548.64 548.64 0
13 482.6 482.6 0
14 398.78 398.78 0
15 548.64 0 0
NOTE: Fifty five (55) total outer perimeter 3' monorail
pieces. See Page 17 for leg support details.
* NOTE: This special monorail run is used
to support the floor plank at the split.
