6. Layouts

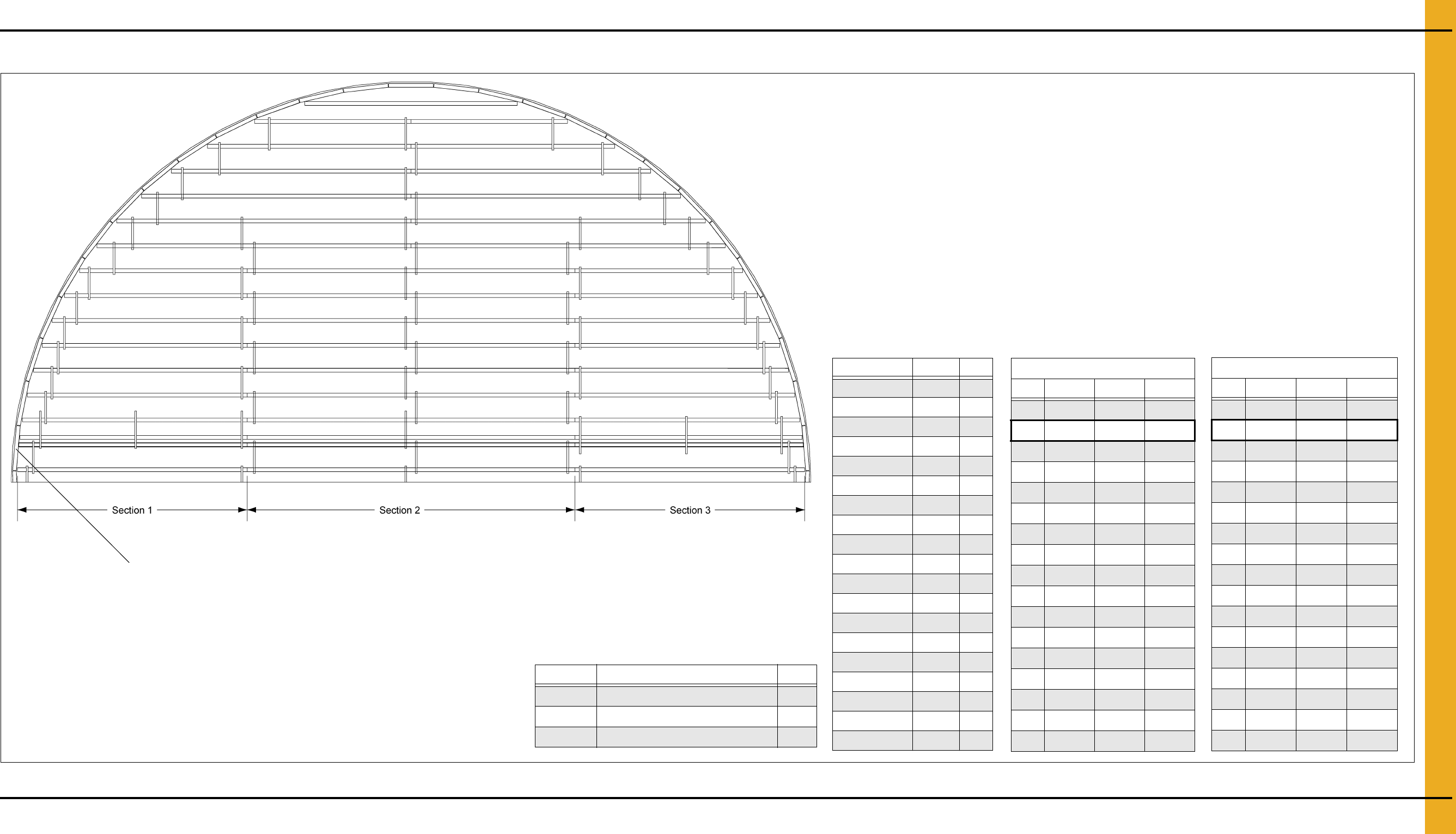

54'-20" Monorail Spacing Layout
Figure 6J 54' Diameter Bin with 20" Monorail Spacing
Part # Description Qty
FL-404-1 20" Monorail Tie Bar 140
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 80
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 540
Bill of Materials
Part # Length Qty
A-22MONO 264 20
A-21.08MONO 253 4
A-19.75MONO 237 4
A-18.08MONO 217 4
A-16.08MONO 193 4
A-15.41MONO 185 4
A-15.3MONO 184 4
A-15.25MONO 183 4
A-15.08MONO 181 4
A-14.75MONO 177 4
A-14.4MONO 172 4
A-14.25MONO 171 2
A-13.75MONO 165 4
A-13.7MONO 164 4
A-13.1MONO 157 4
A-12.25MONO 147 4
A-11.25MONO 135 4
A-10.5MONO 126 4
A-3MONO 36 73
54' Diameter 20" Spacing
Measurement in Inches
Rail # Section 1 Section 2 Section 3
1 185 264 185
* 2 184 264 184
3 183 264 183
4181 264 181
5 177 264 177
6172 264 172
7 165 264 165
8157 264 157
9 147 264 147
10 135 264 135
11 253 253 0
12 237 237 0
13 217 217 0
14 193 193 0
15 164 164 0
16 126 126 0
17 171 0 0
16.46 m Diameter 50.80 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2 Section 3
1 469.9 670.56 469.9
* 2 467.36 670.56 467.36
3 464.82 670.56 464.82
4 459.74 670.56 459.74
5 449.58 670.56 449.58
6 436.88 670.56 436.88
7 419.1 670.56 419.1
8 398.78 670.56 398.78
9 373.38 670.56 373.38
10 342.9 670.56 342.9
11 642.62 642.62 0
12 601.98 601.98 0
13 551.18 551.18 0
14 490.22 490.22 0
15 416.56 416.56 0
16 320.04 320.04 0
17 434.34 0 0
NOTE: Fifty five (55) total outer perimeter 3' monorail
pieces. See Page 17 for leg support details.
* NOTE: This special monorail run is used
to support the floor plank at the split.
