34 PNEG-1830 54' Dura-Lok Plank and Support Manual
6. Layouts

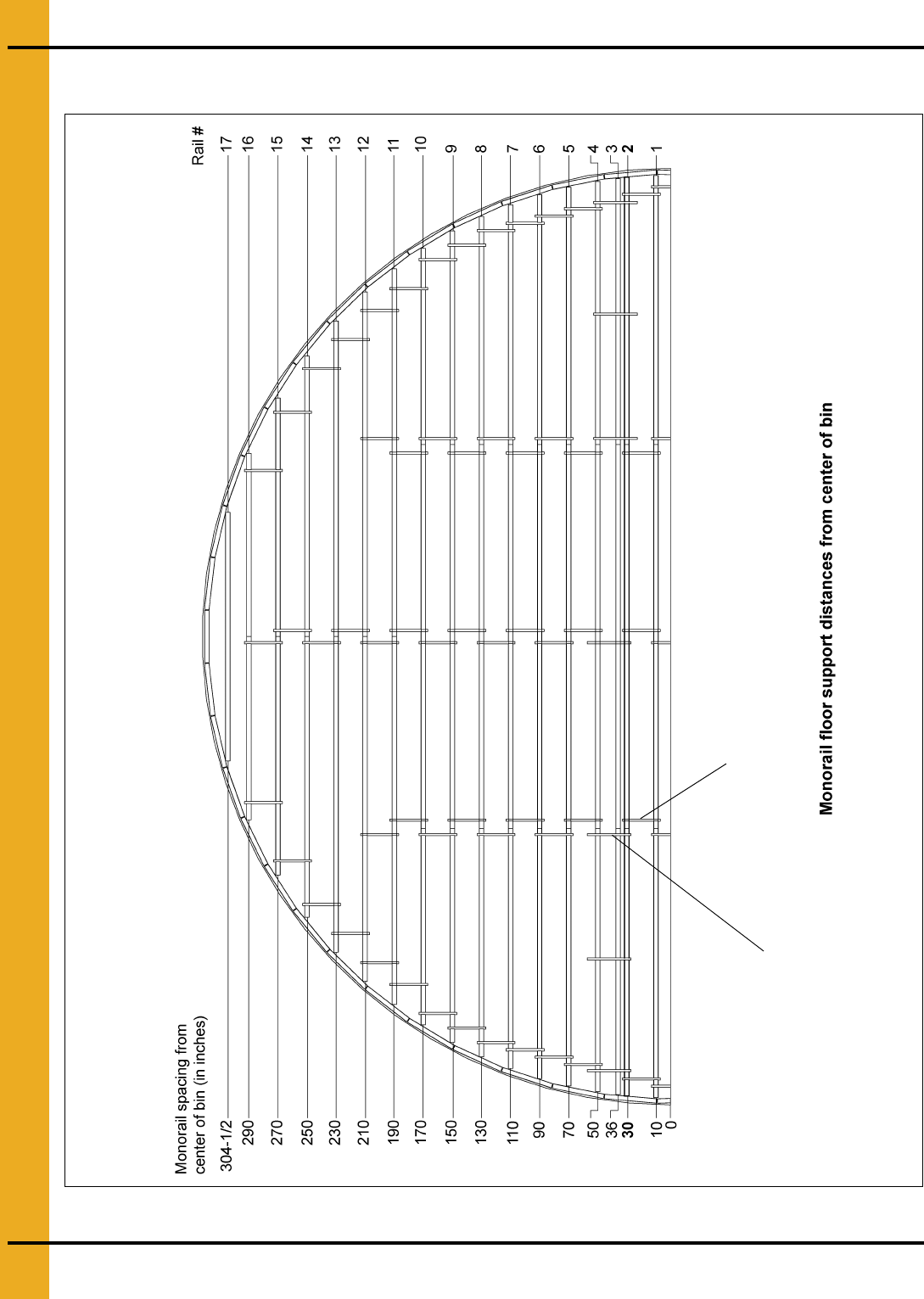

54'-20" Rail Spacing Layout
Figure 6I 54' Diameter 20" Rail Spacing
Tie bar (See Page 15 for
installation detail.)
Tie strap (See Page 16
for installation detail.)
NOTE: This depicts monorail spacings only. Leg spacing is dependant
on eave height. See Page 18 for leg and rail spacing chart.
