6. Layouts
54'-16" Monorail Spacing Layout

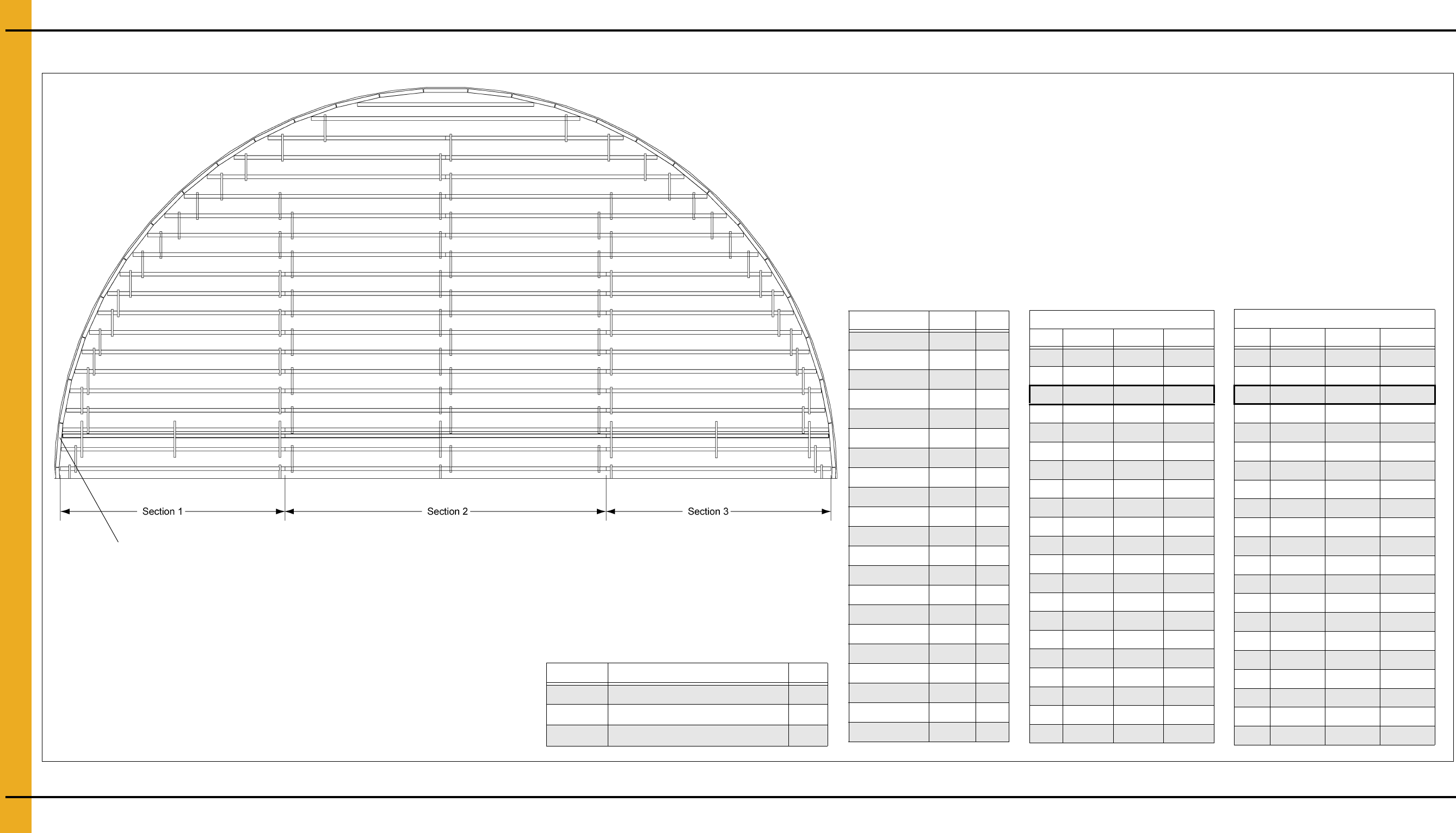

Figure 6C 54' Diameter Bin with 16" Monorail Spacing
Part # Description Qty
FL-404-16 16" Monorail Tie Bar 180
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 80
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 650
Bill of Materials
Part # Length Qty
A-22MONO 264 24
A-21.42MONO 257 4
A-20.42MONO 245 4
A-19.25MONO 231 4
A-18.42MONO 221 2
A-17.9MONO 215 4
A-16.3MONO 196 4
A-15.41MONO 185 4
A-15.3MONO 184 4
A-15.25MONO 183 8
A-15MONO 180 4
A-14.75MONO 177 4
A-14.5MONO 174 4
A-14.42MONO 173 4
A-13.91MONO 167 4
A-13.42MONO 161 4
A-12.83MONO 154 4
A-12.17MONO 146 8
A-12.1MONO 145 2
A-11.3MONO 136 4
A-3MONO 36 73
54' Diameter 16" Spacing
Measurement in Inches
Rail # Section 1 Section 2 Section 3
1 185 264 185
2 184 264 184
* 3 183 264 183
4 183 264 183
5 180 264 180
6 177 264 177
7 173 264 173
8 167 264 167
9 161 264 161
10 154 264 154
11 146 264 146
12 136 264 136
13 257 257 0
14 245 245 0
15 231 231 0
16 215 215 0
17 196 196 0
18 174 174 0
19 146 146 0
20 221 0 0
21 145 0 0
16.46 m Diameter 40.64 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2 Section 3
1 469.9 670.56 469.9
2 467.36 670.56 467.36
* 3 464.82 670.56 464.82
4 464.82 670.56 464.82
5 457.2 670.56 457.2
6 449.58 670.56 449.58
7 439.42 670.56 439.42
8 424.18 670.56 424.18
9 408.94 670.56 408.94
10 391.16 670.56 391.16
11 370.84 670.56 370.84
12 345.44 670.56 345.44
13 652.78 652.78 0
14 622.3 622.3 0
15 586.74 586.74 0
16 546.1 546.1 0
17 497.84 497.84 0
18 441.96 441.96 0
19 370.84 370.84 0
20 561.34 0 0
21 368.3 0 0
NOTE: Fifty five (55) total outer perimeter 3' monorail pieces.
See Page 17 for leg support details.
* NOTE: This special monorail run is used
to support the floor plank at the split.
