6. Layouts
54'-15" Monorail Spacing Layout

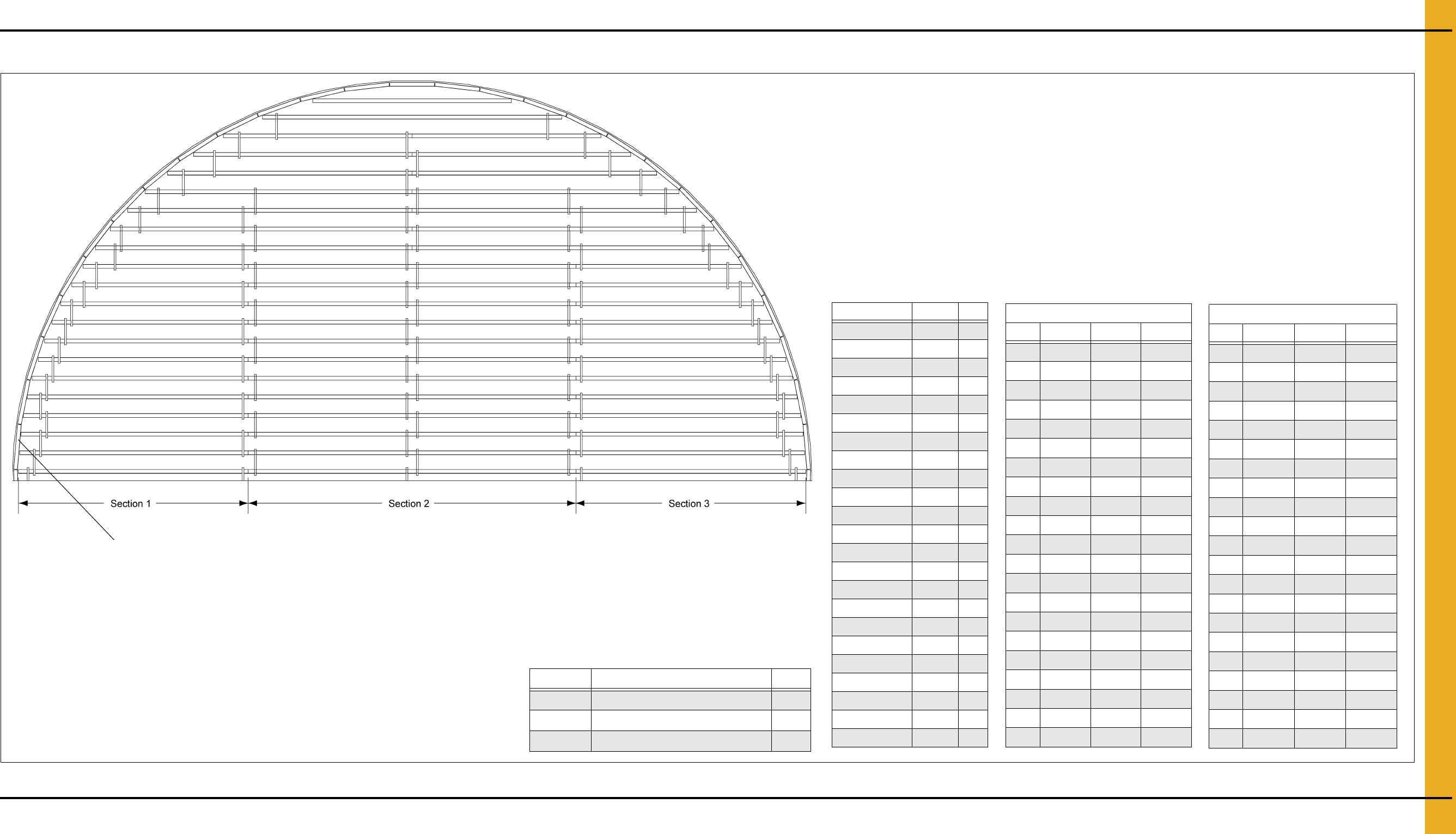

Figure 6B 54' Diameter Bin with 15" Monorail Spacing
Part # Description Qty
FL-404-15 15" Monorail Tie Bar 190
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 660
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 60
NOTE: Fifty five (55) total outer perimeter 3' monorail pieces.
See Page 17 for leg support details.
16.46 m Diameter 38.10 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2 Section 3
1 469.9 670.56 469.9
2 467.36 670.56 467.36
3 464.82 670.56 464.82
4 459.74 670.56 459.74
5 452.12 670.56 452.12
6 441.96 670.56 441.96
7 429.26 670.56 429.26
8 416.56 670.56 416.56
9 401.32 670.56 401.32
10 383.54 670.56 383.54
11 360.68 670.56 360.68
12 337.82 670.56 337.82
13 647.7 647.7 0
14 617.22 617.22 0
15 581.66 581.66 0
16 546.1 546.1 0
17 500.38 500.38 0
18 447.04 447.04 0
19 386.08 386.08 0
20 612.14 0 0
21 406.4 0 0
54' Diameter 15" Spacing
Measurement in Inches
Rail # Section 1 Section 2 Section 3
1 185 264 185
2 184 264 184
3 183 264 183
4 181 264 181
5 178 264 178
6 174 264 174
7 169 264 169
8 164 264 164
9 158 264 158
10 151 264 151
11 142 264 142
12 133 264 133
13 255 255 0
14 243 243 0
15 229 229 0
16 215 215 0
17 197 197 0
18 176 176 0
19 152 152 0
20 241 0 0
21 160 0 0
Bill of Materials
Part # Length Qty
A-22MONO 264 24
A-21.25MONO 255 4
A-20.25MONO 243 4
A-20.08MONO 241 2
A-19.08MONO 229 4
A-17.9MONO 215 4
A-16.41MONO 197 4
A-15.41MONO 185 4
A-15.3MONO 184 4
A-15.25MONO 183 4
A-15.08MONO 181 4
A-14.83MONO 178 4
A-14.67MONO 176 4
A-14.5MONO 174 4
A-14.08MONO 169 4
A-13.7MONO 164 4
A-13.3MONO 160 2
A-13.2MONO 158 4
A-12.7MONO 152 4
A-12.58MONO 151 4
A-11.83MONO 142 4
A-11.08MONO 133 4
A-3MONO 36 73
