33'-22" Monorail Spacing Layout

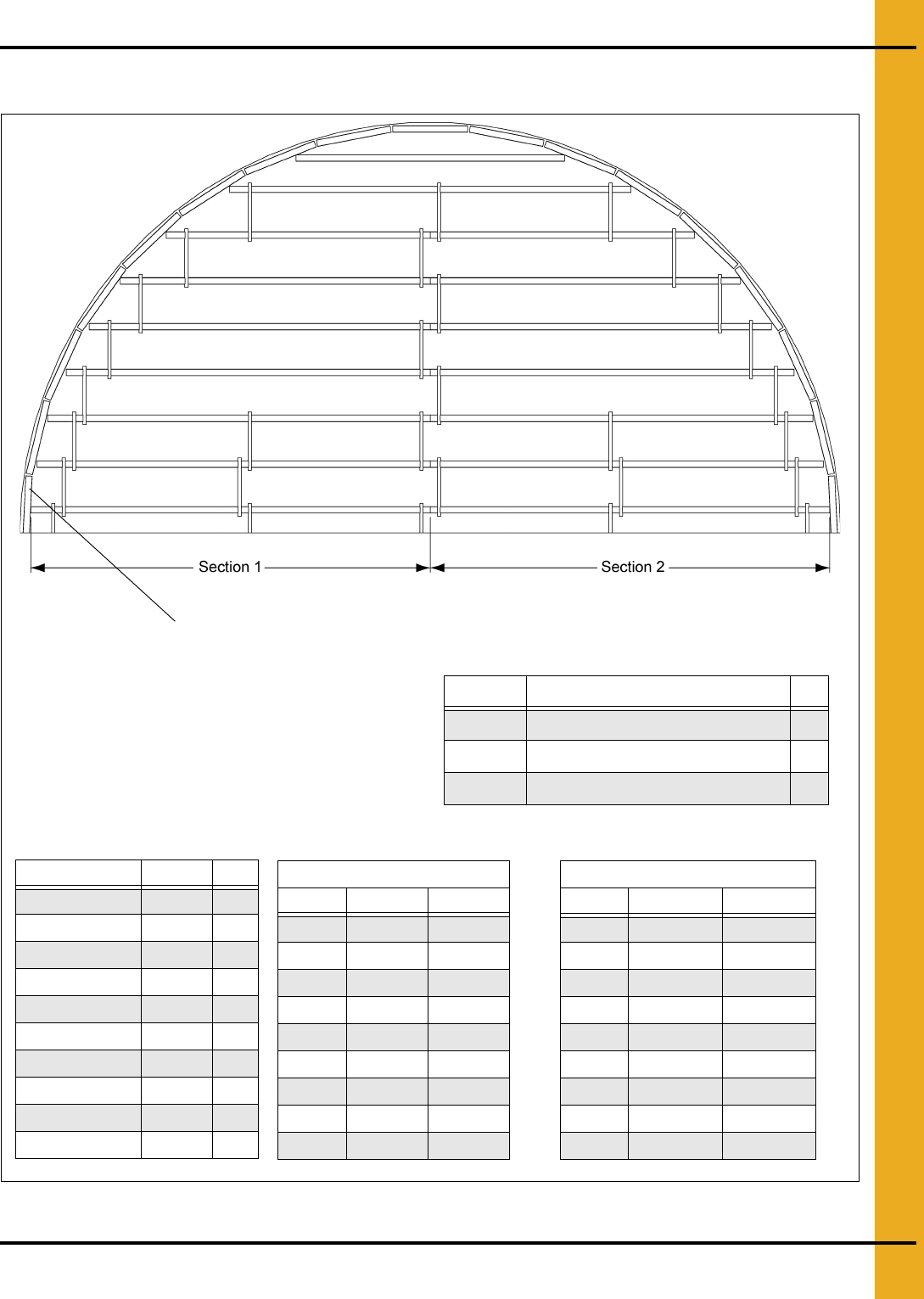

Figure 6J 33' Diameter Bin with 22" Monorail Spacing
NOTE: Thirty three (33) total outer perimeter 3' monorail
pieces. See Page 17 for leg support details.
Bill of Materials
Part # Length Qty
A-16.08MONO 193 2
A-16MONO 192 4
A-15.75MONO 189 4
A-15.3MONO 184 4
A-14.58MONO 176 4
A-13.7MONO 164 4
A-12.42MONO 149 4
A-10.75MONO 129 2
A-10.58MONO 127 4
A-3MONO 36 50
33' Diameter 22" Spacing
Measurement in Inches
Rail # Section 1 Section 2
1 192 192
2 189 189
3 184 184
4 175 175
5 164 164
6 149 149
7 127 127
8 193 0
9 129 0
Part # Description Qty
FL-404-22 22" Monorail Tie Bar 60
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 270
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 40
10.058 m Diameter 55.88 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2
1 487.68 487.68
2 480.06 480.06
3 467.36 467.36
4 444.5 444.5
5 416.56 416.56
6 378.46 378.46
7 322.58 322.58
8 490.22 0
9 327.66 0
