6. Layouts
34 PNEG-1816 33' Dura-Lok Plank and Support Manual
33'-22" Rail Spacing Layout

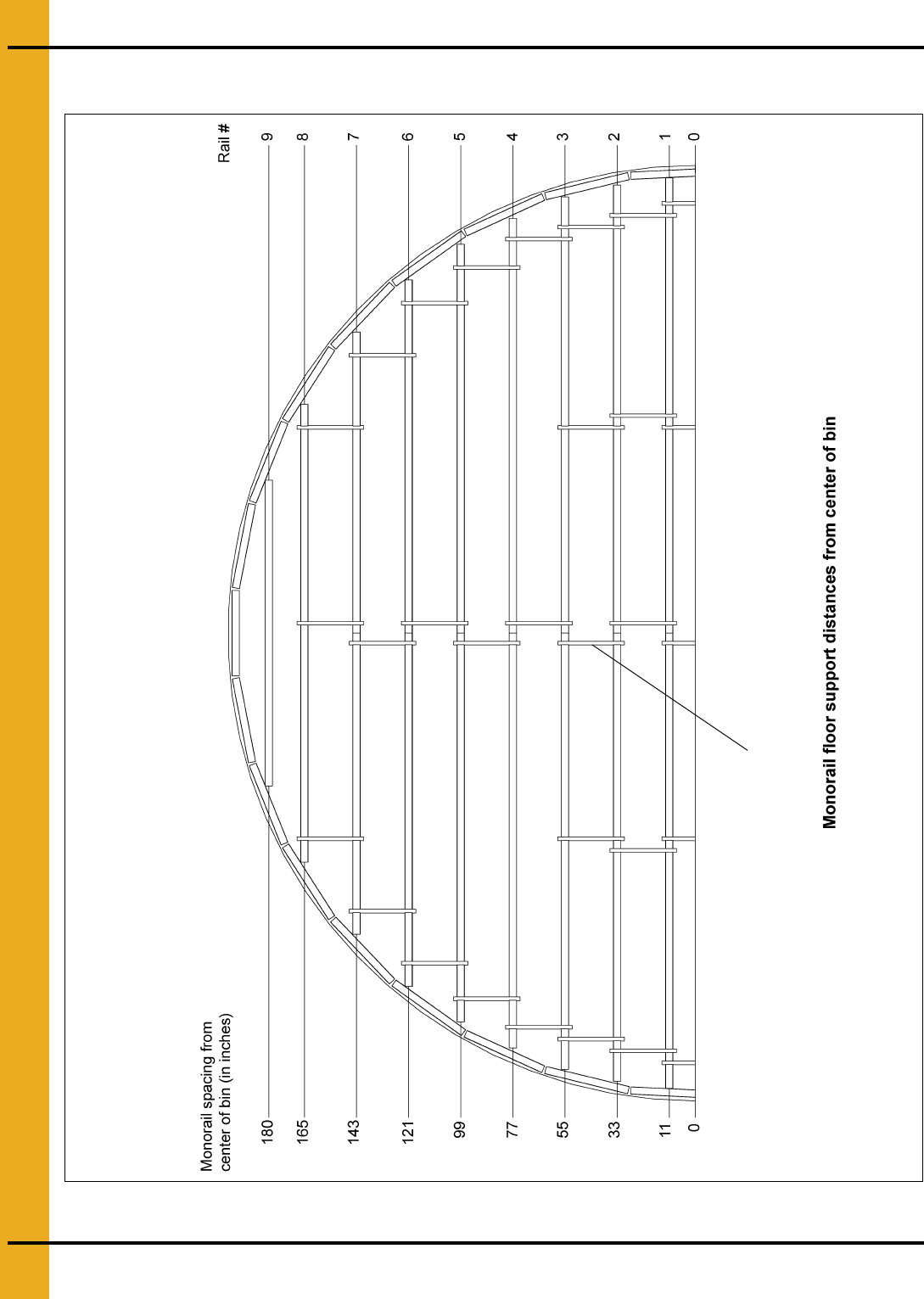

Figure 6I 33' Diameter 22" Rail Spacing
NOTE: This depicts monorail spacings only. Leg spacing is dependant
on eave height. See Page 18 for leg and rail spacing chart.
Tie bar (See Page 15 for
installation detail.)
