6. Layouts
PNEG-1816 33' Dura-Lok Plank and Support Manual 33
33'-20" Monorail Spacing Layout

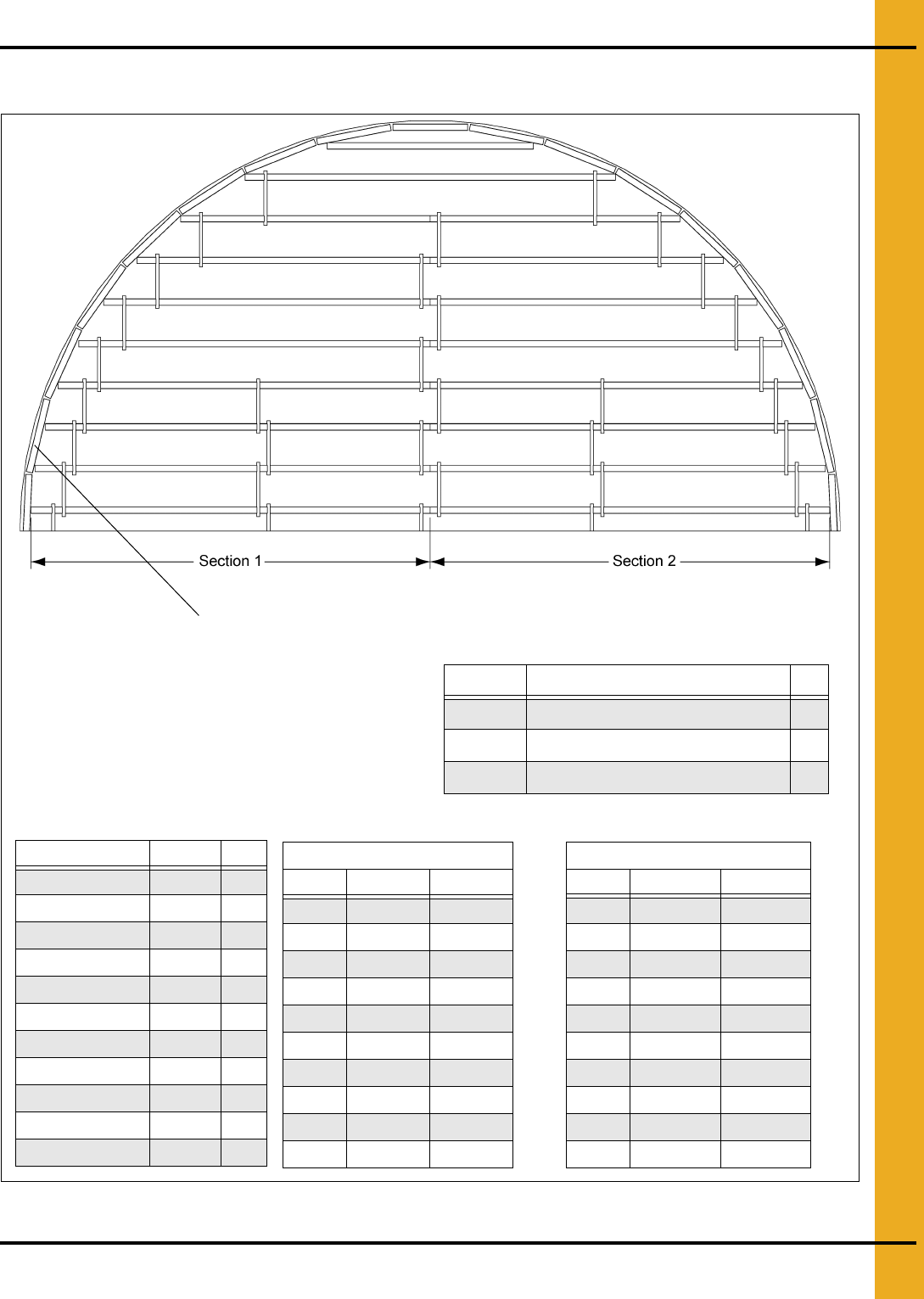

Figure 6H 33' Diameter Bin with 20" Monorail Spacing
NOTE: Thirty three (33) total outer perimeter 3' monorail
pieces. See Page 17 for leg support details.
Bill of Materials
Part # Length Qty
A-16MONO 192 4
A-15.83MONO 190 4
A-15.41MONO 185 4
A-14.9MONO 179 4
A-14.83MONO 178 2
A-14.08MONO 169 4
A-13.1MONO 157 4
A-11.8MONO 141 4
A-10MONO 120 4
A-8.25MONO 99 2
A-3MONO 36 50
33' Diameter 20" Spacing
Measurement in Inches
Rail # Section 1 Section 2
1 192 192
2190190
3 185 185
4179179
5 169 169
6157157
7 141 141
8120120
9 178 0
10 99 0
Part # Description Qty
FL-404-1 20" Monorail Tie Bar 70
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 270
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 40
10.058 m Diameter 50.8 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2
1 487.68 487.68
2 482.6 482.6
3 469.9 469.9
4 454.66 454.66
5 429.26 429.26
6 398.78 398.78
7 358.14 358.14
8 304.8 304.8
9 452.12 0
10 251.46 0
