6. Layouts
32 PNEG-1816 33' Dura-Lok Plank and Support Manual

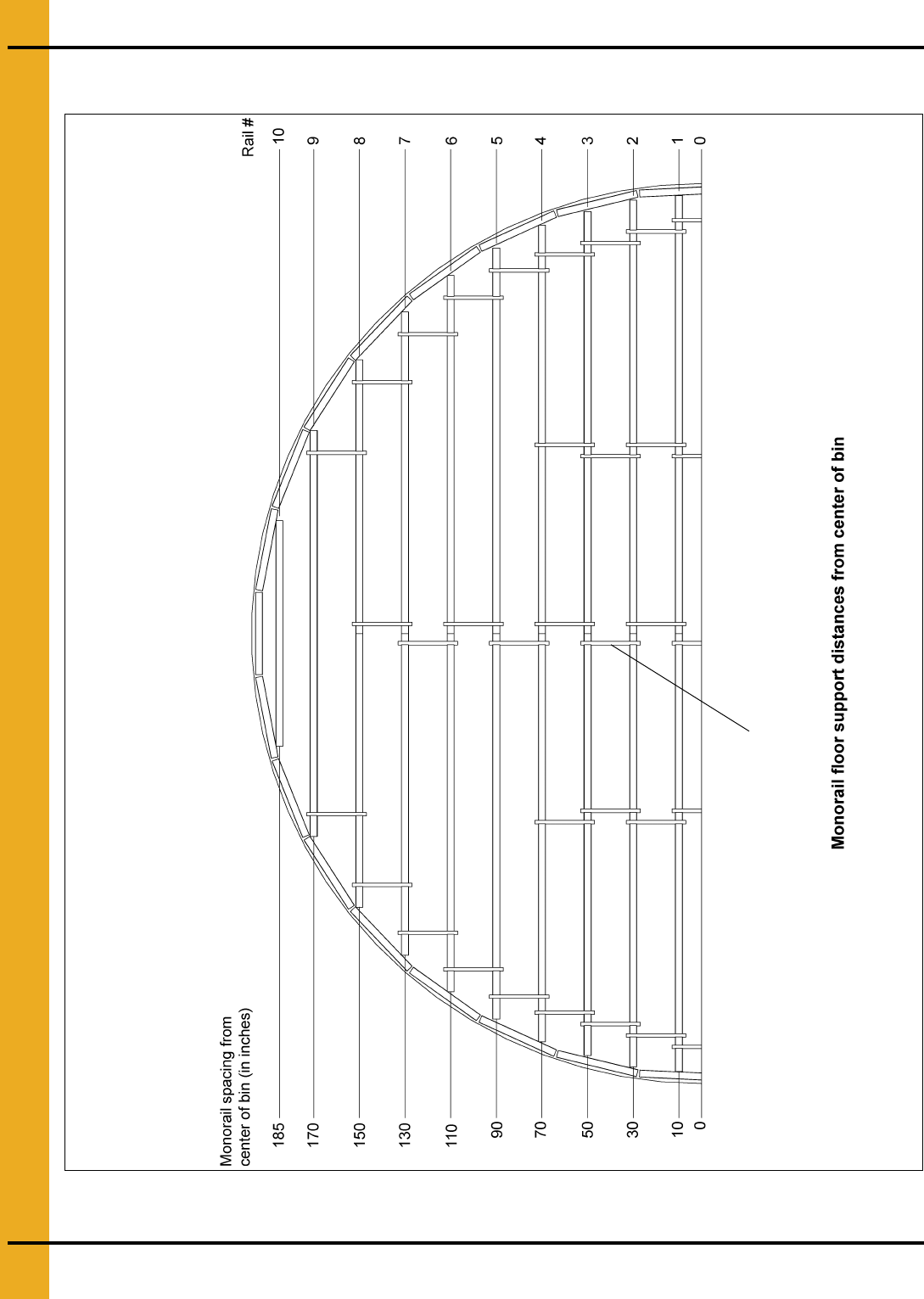

33'-20" Rail Spacing Layout
Figure 6G 33' Diameter 20" Rail Spacing
NOTE: This depicts monorail spacings only. Leg spacing is dependant
on eave height. See Page 18 for leg and rail spacing chart.
Tie bar (See Page 15 for
installation detail.)
