PNEG-1816 33' Dura-Lok Plank and Support Manual 29
33'-17" Monorail Spacing Layout

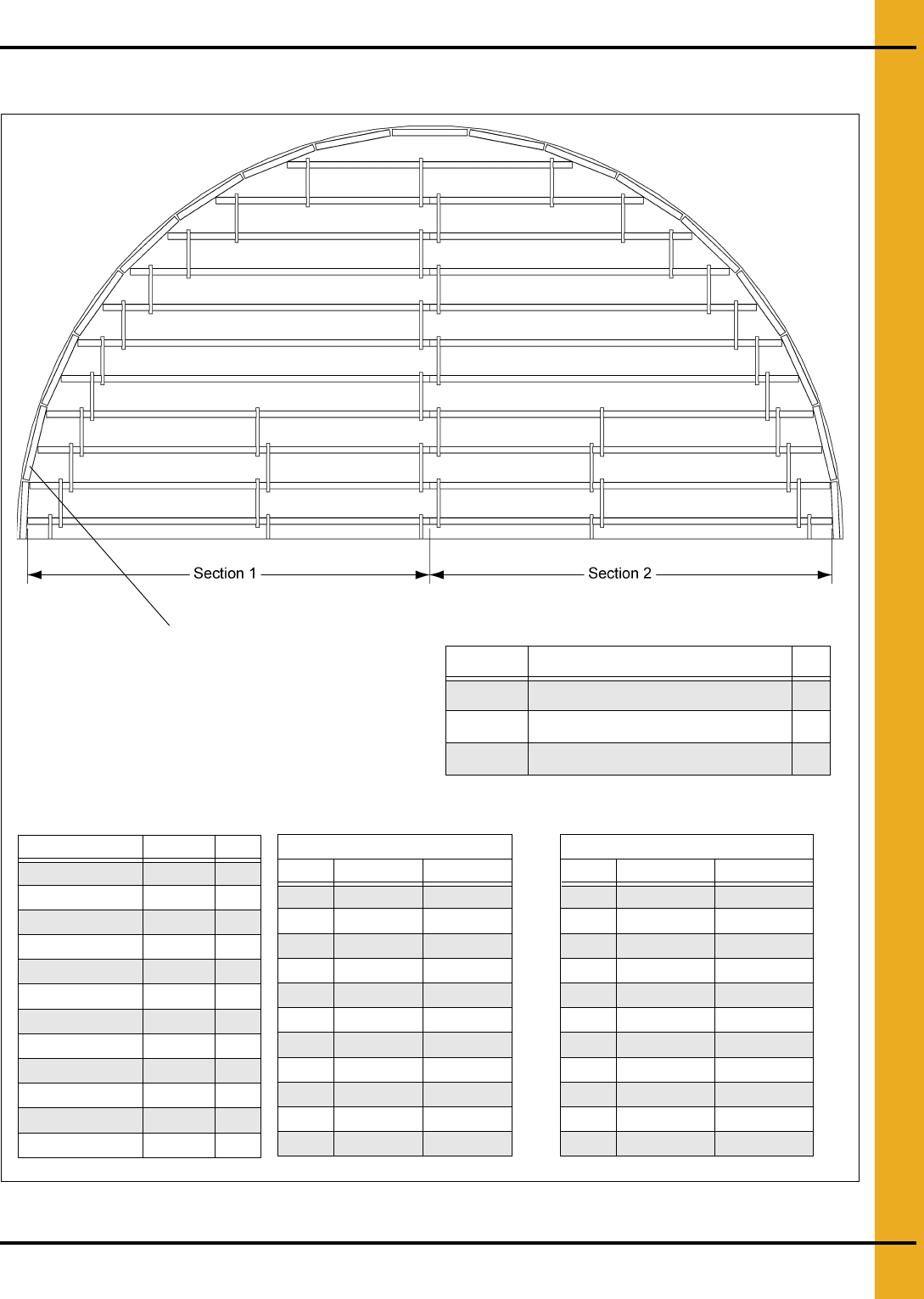

Figure 6D 33' Diameter Bin with 17" Monorail Spacing
NOTE: Thirty three (33) total outer perimeter 3' monorail
pieces. See Page 17 for leg support details.
Bill of Materials
Part # Length Qty
A-16MONO 192 4
A-15.91MONO 191 4
A-15.58MONO 187 4
A-15.25MONO 183 4
A-14.67MONO 176 4
A-14MONO 168 4
A-13MONO 156 4
A-11.92MONO 143 4
A-11.3MONO 136 2
A-10.4MONO 125 4
A-8.5MONO 102 4
A-3MONO 36 50
33' Diameter 17" Spacing
Measurement in Inches
Rail # Section 1 Section 2
1 192 192
2 191 191
3 187 187
4 183 183
5 176 176
6 168 168
7 156 156
8 143 143
9 125 125
10 102 102
11 136 0
Part # Description Qty
FL-404-17 17" Monorail Tie Bar 90
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 300
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 40
10.058 m Diameter 43.18 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2
1 487.68 487.68
2 485.14 485.14
3 474.98 474.98
4 464.82 464.82
5 447.04 447.04
6 426.72 426.72
7 396.24 396.24
8 363.22 363.22
9 317.5 317.5
10 259.08 259.08
11 345.44 0
