BOOM TRUNION PIN: Grease Daily (1) CYLINDERS: Grease Daily (14) MPEP Contains Moly N LG 1 No. 2 REAR AXLE PIVOT: Grease Daily REAR AXLE LINKAGE: Grease Daily (15) RADIATOR: Check Level Daily 3 gal. Water-3 gal. Anti-freeze FUEL TANK: Fill Daily 40 gal. #2 Diesel NOTE: See Service Manual For Complete Details FORM NO. HE 28327

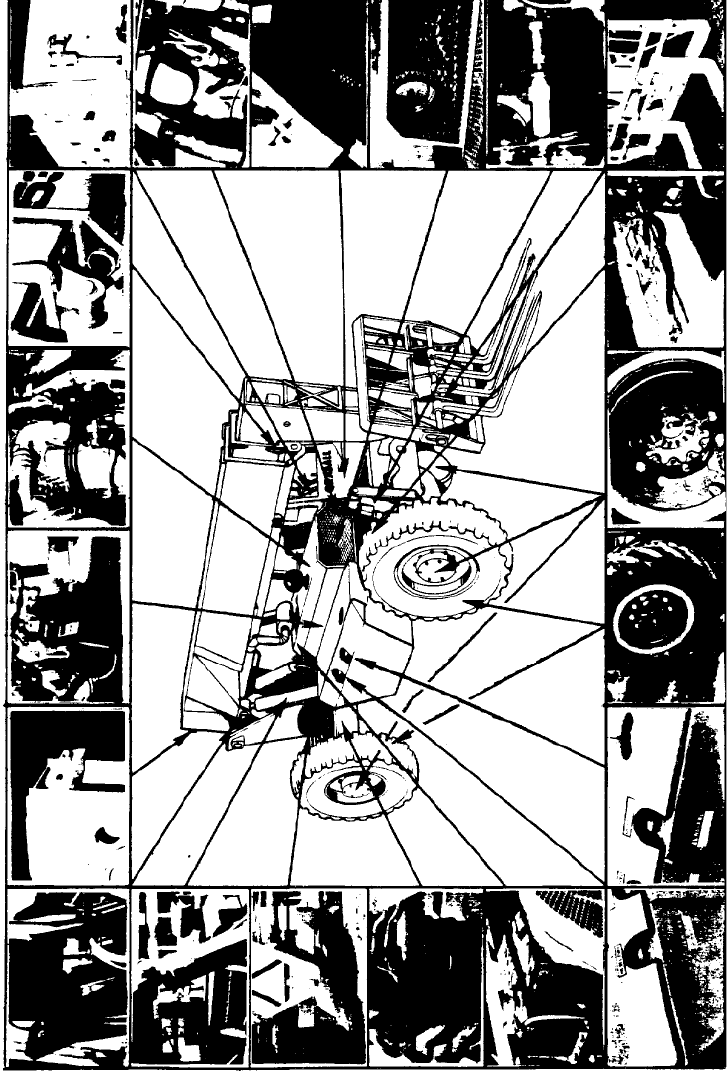

GRADALL HANDLER 534B PREVENTIVE MAINTENANCE
MASTER BRAKE CYL. Check Weekly 1 qt. Brake Fluid SAE J-1703 or J-70C TRANSMISSIONS: Check Level Daily Change Yearly - 5 gal. AFT-FM Dextron Qualified Change Filter 6 Months BRAKES: Test Weekly Adjust as Required AIR CLEANER ELEMENT: Clean - Three Weeks Change - Six Months DRIVE SHAFT: Grease Every Two Weeks TILT CARRIAGE: Grease Daily - Slide Bars & Manual Quick - Switch
HYDRAULIC RESERVOIR: Check Level Daily Inspect Oil - Yearly Change Filter - Yearly Oil Specs - See Manual
TIRES: Check Pressure Weekly 55 psi.
BATTERY: Check Level Weekly
FRONT & REAR AXLES: Check Level Weekly Change Lube Six Months Multi-Purpose Gear Lube API GL-5 Torque Per Manual
GRAD GRAD GRAD GRAD
GRAD
ALLALL ALLALL
ALL
New Philadelphia, OH 44663
®
Hydraulic Equipment
BOOM CABLE: Tighten Weekly 75 ft. lbs.
FUEL FILTER: Change - Three Months
CRANKCASE OIL: Check Level Daily Change Monthly 7½ qt. - SAE 30W Cahnge Oil Filter Monthly
Follow Manufacturers Recommendations
BOOM BEARINGS: Grease Daily (6) Check Wear Two Weeks Lube Rear Sheaves
