-27-

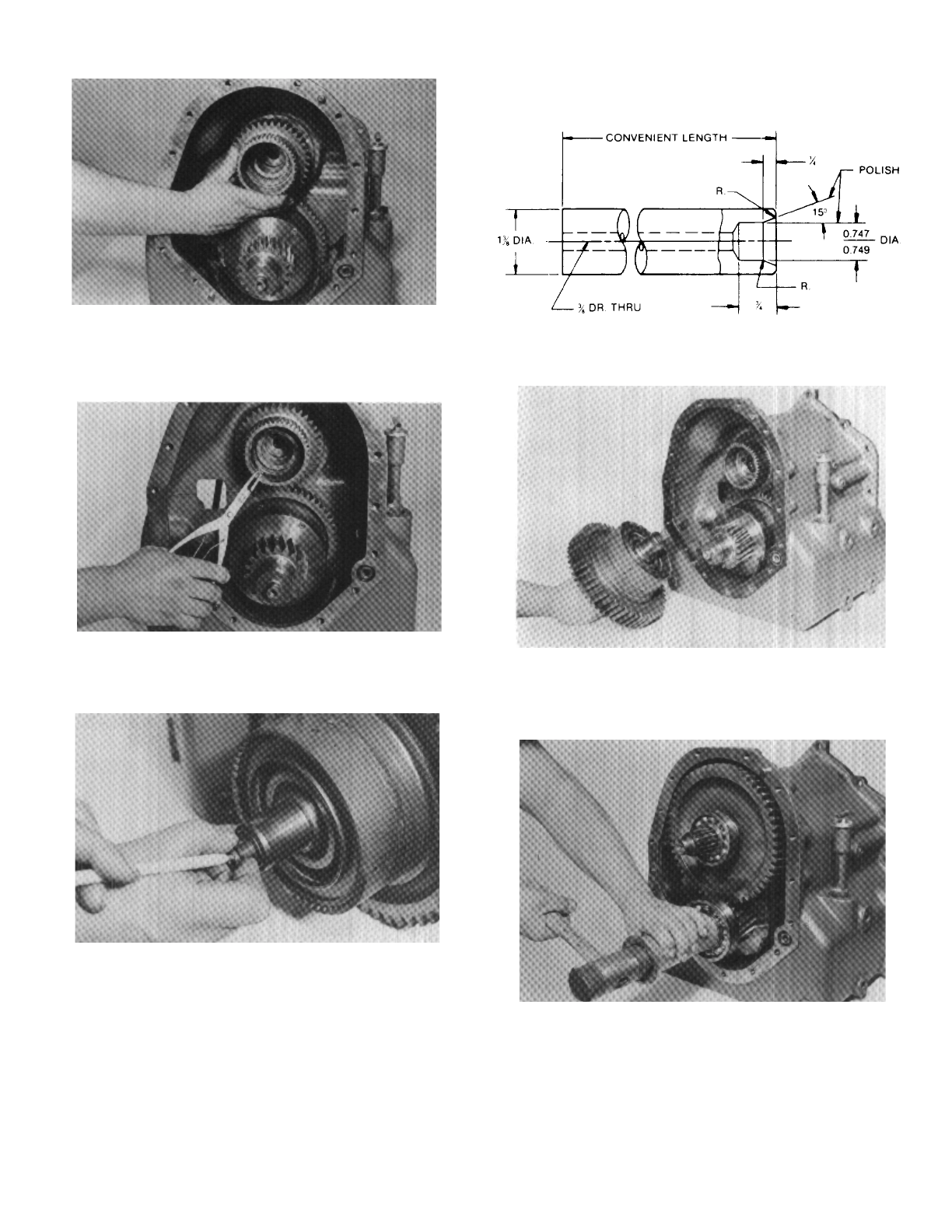

Figure 150
Install new oil sealing ring on output shaft. NOTE:
New ring must be sized before shaft can be assembled
in transmission housing.
A sizing tool can be made for ease of sizing oil
seal ring. See Figure 151.
Figure 149
Install gear retainer ring
Figure 151
Oil sealing ring tool.
Figure 153
Install low clutch rear bearing.
The 2 speed trasmission will not have a clutch on
the output shaft.
Figure 148
Locate gear and clutch disc hub on forward clutch
shaft. NOTE: The 2 speed transmission will have
Only a gear and not a clutch disc hub on it.
Figure 152
Install output shaft and 3rd speed clutch.
