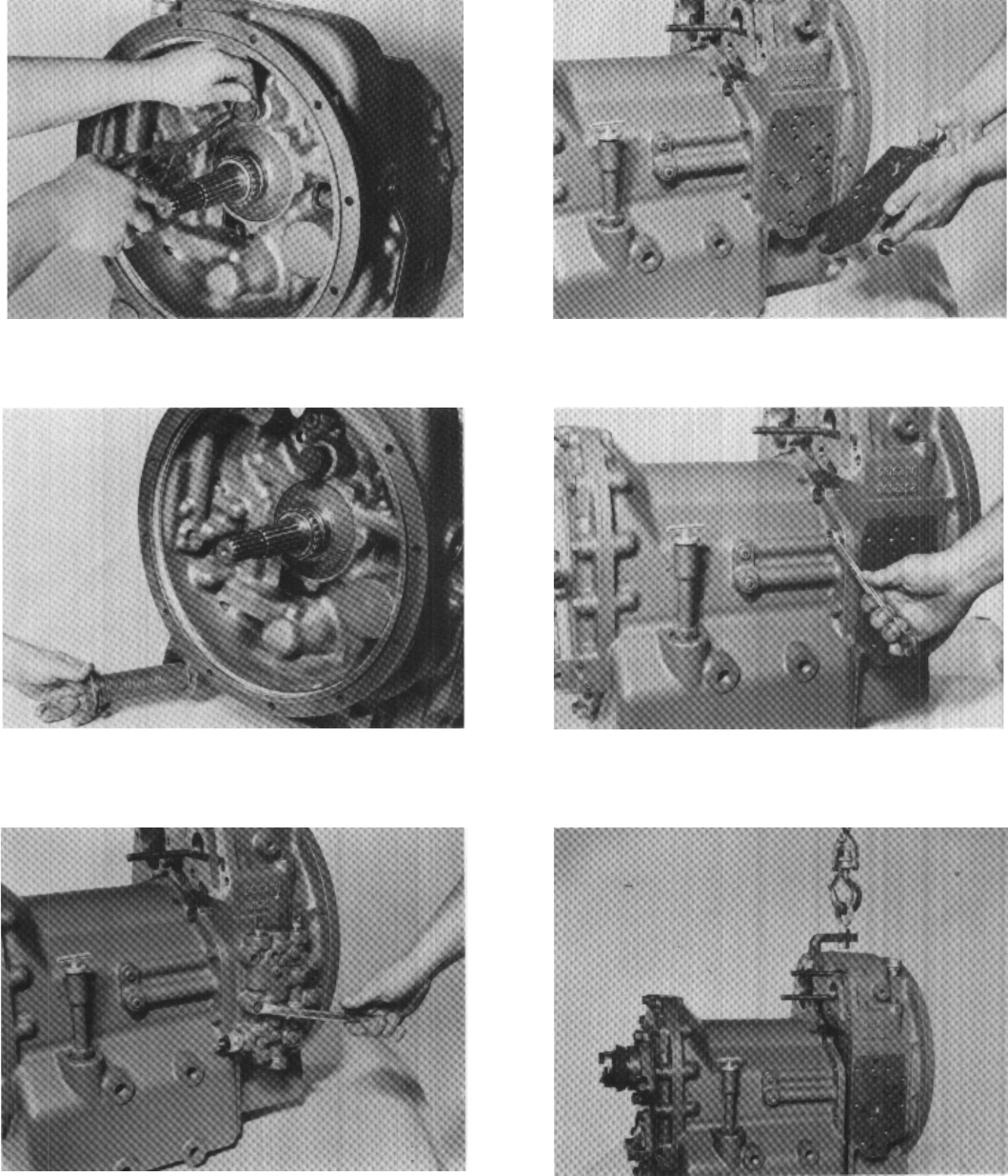

Figure 27
Remove idler stub shaft locating ring.
Figure 28
Remove sump screen assembly.
Figure 29
Remove control cover bolts and washers.
Figure 31
Remove bolts securing transmission case to converter
housing.
Figure 32
Support converter housing with a chain hoist
-6-
Figure 30
Remove control valve assembly. Use caution as not
to lose detent springs and balls.
