Decals (cont.)

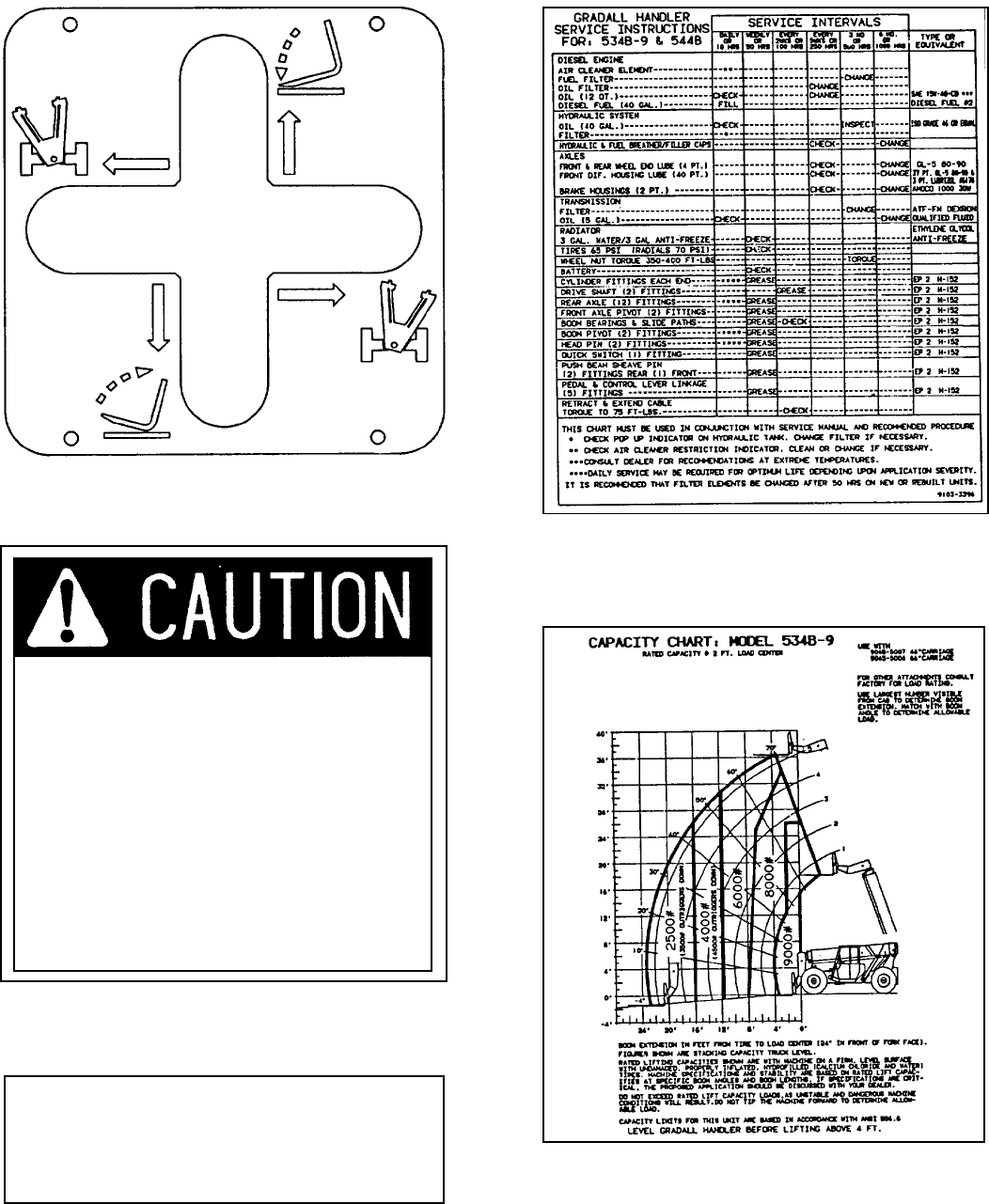

Located on Dashboard
Part No. 9103-3341
FOR LONGER TURBOCHARGER
LIFE,IDLE ENGINE AT LEAST
I MINUTE AFTER START-UP
AND BEFORE SHUT-DOWN.
TO PREVENT ENGINE RING
GEAR DAMAGE, WAIT 10
SECONDS AFTER ENGINE
STOPS BEFORE ATTEMPTING
TO RESTART.
FOR OPTIMUM CONTROL AND BRAKE
LIFE, US LOW GEAR WHEN
DESCENDING STEEP GRADES.
Located on Dashboard
Part No. 9103-3443
WHEN TRAVELLING AT HIGH SPEEDS
FOR OVER 2 MILES, DISENGAGE
REAR HUBS BY REVERSING SMALL
COVER PLATE AT HUB CENTER.
9103-3418
Located on Dashboard
Part No. 9103-3418
Located on Left Cab Wall
Part No. 9103-3396
534B-9
9103-3395
Located on Mudguard
Part No. 9103-3395
