OPERATOR’S CAB
The standard cab is open on three sides and includes
an overhead guard to provide protection from
falling objects.
Never operate the handler unless the
overhead guard is in place and in good
condition.
A fully enclosed cab with windows and a lockable
door is available as an option. The cab door can be
sure the door is fully secured when operating the
handler.
The operator’s seat is equipped with a seat belt and
includes fore and aft adjustment to compensaste for
variations in operator size. The adjustment
release/lock lever is located beneath front edge of
seat. Wear seat belt at all times.
An optional windshield wiper is available for use
with enclose cabs. An ON/OFF control switch is
located on the wiper motor.
A variable speed defroster fan is available for use
with enclose cabs. An ON/OFF control switch and
speed control are located on the base of the fan.
An optional variable speed heater fan is available for
use with units equipped with a heater. An ON/OFF/
SPEED CONTROL knob is located on the dash-
board.Hot water to the heater can be controlled by a
valve at the engine.

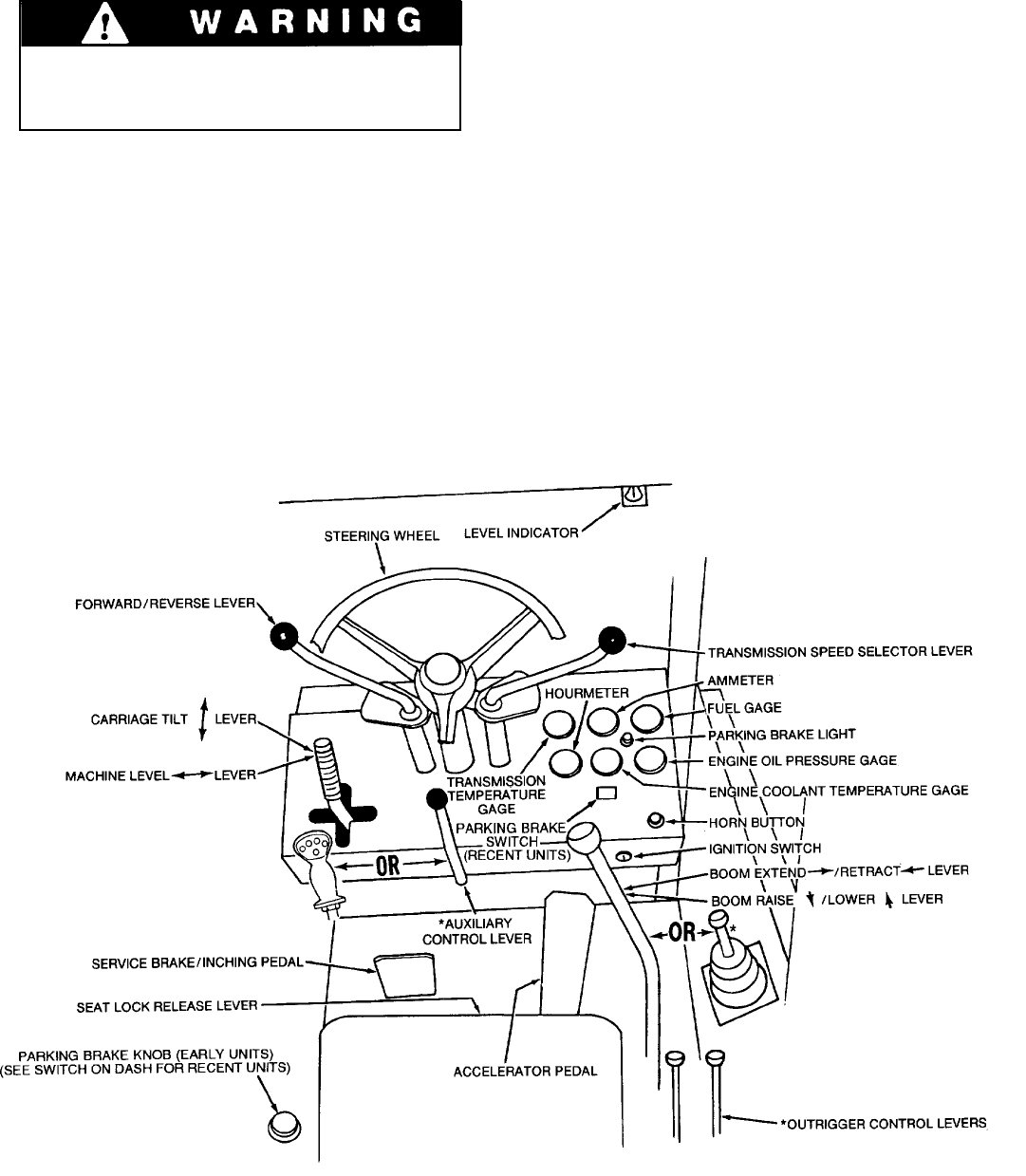

CONTROL AND INSTRUMENT IDENTIFICATION
*Items preceded by an asterisk are optional and may not be furnished on your handler
10
