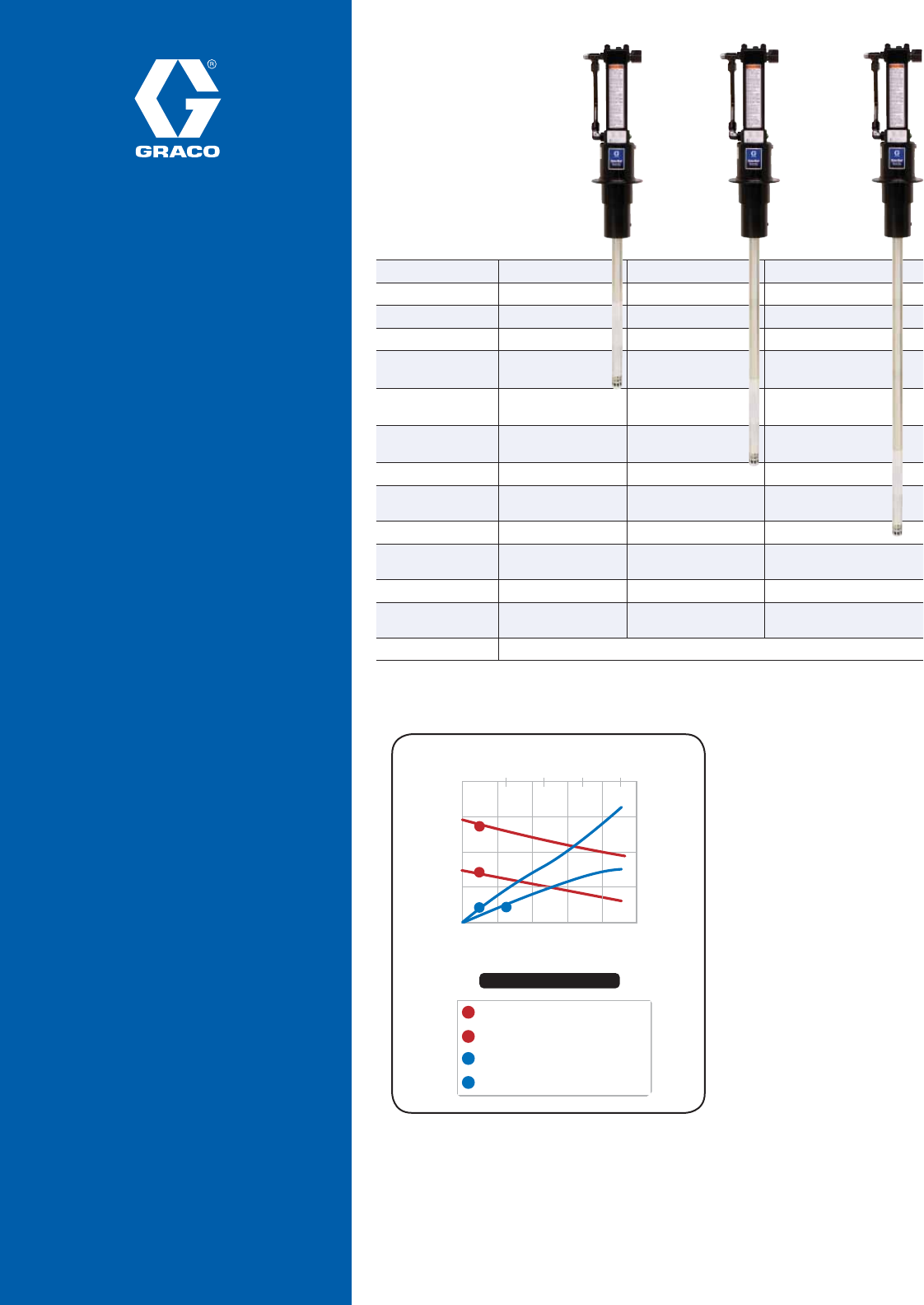

Technical Specifi cations
DYNA-STAR 10:1 PUMPS
Part Number 247540 247443 247450
Drum Size 60 lb (27 kg) 120 lb (55 kg) 400 lb (180 kg)
Overall Pump Length 33.9 in (861 mm) 41.5 in (1054 mm) 48.5 in (1232 mm)
Pump Lower Length 19.75 in (501 mm) 26.75 in (679 mm) 33.75 in (857 mm)
Maximum Hydraulic
Input Pressure
600 psi (41 bar) 600 psi (41 bar) 600 psi (41 bar)
Maximum Hydraulic
Fluid Input Volume
3 gpm (11.4 lpm) 3 gpm (11.4 lpm) 3 gpm (11.4 lpm)
Maximum Flow
Output Rate
1.1 lb/min (0.5 kg/min) 1.1 lb/min (0.5 kg/min) 1.1 lb/min (0.5 kg/min)
Maximum CPM 60 60 60
Maximum Fluid
Output Pressure
7500 psi (517 bar) 7500 psi (517 bar) 7500 psi (517 bar)
Hydraulic Supply Inlet 3/4"–16 JIC (37º Flare) 3/4"–16 JIC (37º Flare) 3/4"–16 JIC (37º Flare)
Hydraulic Return
Outlet
3/4" npt 3/4" npt 3/4" npt
Fluid Outlet 1/2" npt 1/2" npt 1/2" npt
Maximum Incoming
Hydraulic Fluid Temp.
200ºF (93ºC) 200ºF (93ºC) 200ºF (93ºC)
312350 Manual for 247540, 247443, 247450
8000
(552)
6000
(414)
4000
(276)
2000
(138)
0
1.5
(1.1)
2.0
(1.5)
1.0
(0.7)
0.5
(0.4)
0.0
0.25 0.50 0.75 1.00 1.25
(0.11) (0.23) (0.34) (0.45) (0.57)
cycles/min
Pressure - PSI (bar)
Input Hydraulic Horsepower (kw)
60 0153045
B
C
D
A
Test Fluid: NLGI #1 grade grease
Flowrate–lb per min (kg per min)
600 psi hydraulic inlet pressure
A
300 psi hydraulic inlet pressure
B
Hp (600 psi hydraulic input)
C
Hp (300 psi hydraulic input)
D
TYPICAL PUMP PERFORMANCE
