User's Manual

Module and Kit Accessories
247700 Follower plate for 60 lb (27 kg) and 90 lb (41 kg) modules
244023 Level indicator for 60 lb (27 kg) and 90 lb (41 kg) modules*
24B591 GLC 4400, 12/24 VDC controller
115124 Pressure switch
Graco
®
Quality by Design

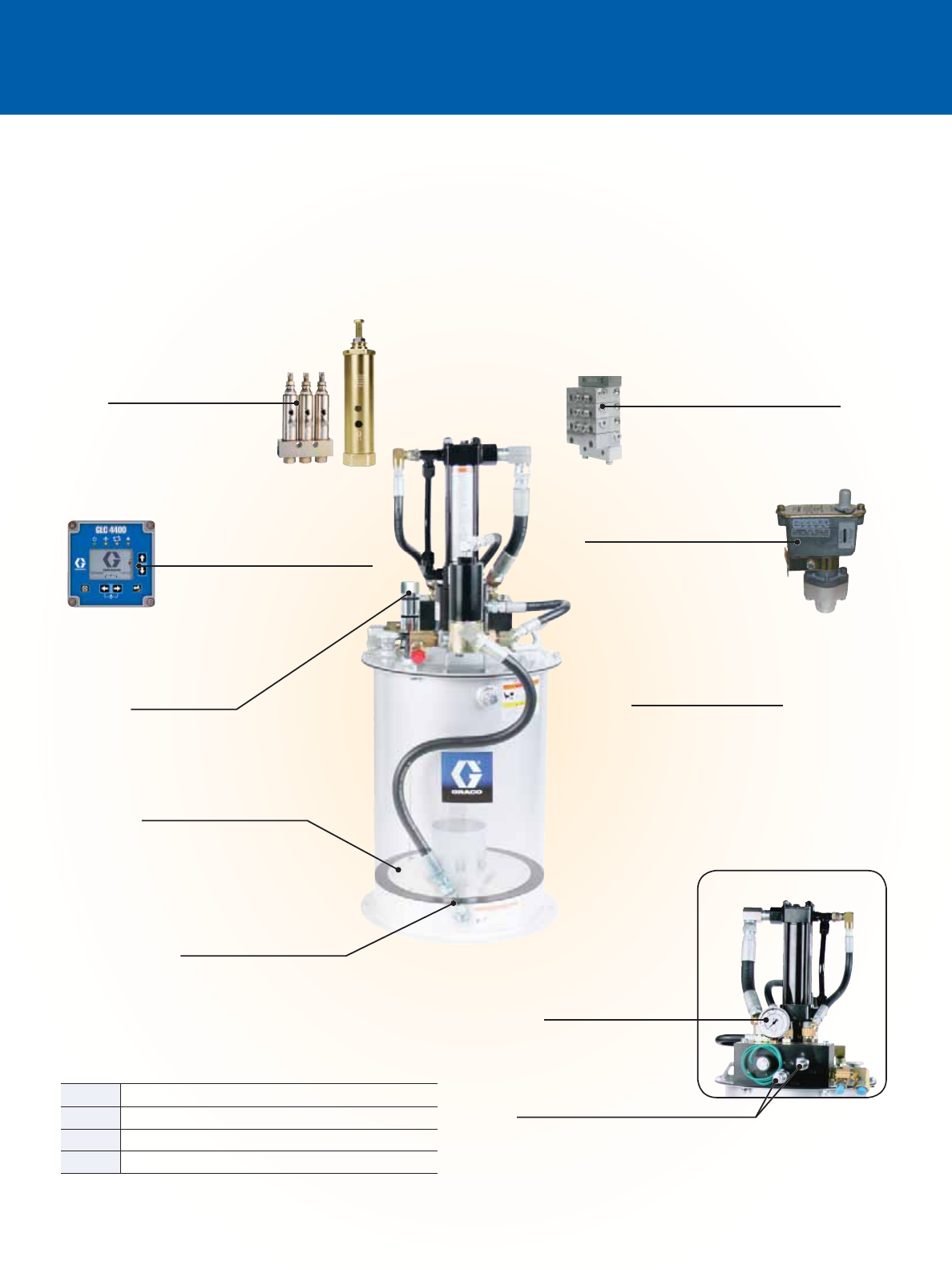

Pressure Switch
Lets the controller know when optimum
system pressure is reached ensuring
complete lubrication cycle
Field-Proven Graco Fire-Ball
®
Grease Pump Lower
Double-acting piston design—the industry
standard for long life
Level Indicator
• Positive, at-a-glance indication of
reservoir lubrication level
• Auto shut-down when low level
is reached
Follower Plate
Innovative design forces grease into
the pump for consistent operation
Center-Feed
Vent and Refill Port
Located below follower plate for
trouble-free venting and refilling
Pressure and Flow Control
Ability to adjust pressure and flow puts
you in control
Rugged Digital Controller
Full featured performance—time- or
pressure-based control to monitor reservoir
levels and system pressure
Detail of back side of module assembly.
Built-In Gauge
Conveniently monitor hydraulic
output pressure
Trabon
®
Divider Valve Assembly
• Accurately meters lubrication to each point
• Add performance indicators to ensure vital
components have been lubricated
Heavy-duty construction and mining equipment rely on fresh lubricant to fl ush contaminants from critical pivot points.
An automatic lubrication system from Graco provides constant lube replenishment, preventing expensive and catastrophic
component failures. Divider valves and injectors accurately distribute lubricant to multiple lube points and are designed to
accept a variety of system accessories which include electronic controllers, pressure switches and level indicators.
Superior System Performance
For optimal system performance
NLGI #1 grease is recommended
GL-1 and Gl-11 Injectors
• Exclusive seal design for up to
30% longer life
• Field adjustable output for most
every application
* Follower plate 247700 required for level indicator 244023 to function
