Dyna-Star

10:1

High Ratio Hydraulically-Powered Lubrication Pump

Long-lasting, ﬂ exible design saves money and is easy to use and install

• Achieve full pressure performance by safely tapping low pressure hydraulics

• Pre-packaged modules ready-to-work with both injector and divider valve systems

• Multiple pump and accessory options for use with reﬁ nery drum and custom tank installations

• Self-lubricating for long life and reliable operation

• Ultra-quiet hydraulic motor—no need for add-on mufﬂ ers

• High efﬁ ciency motor design uses less hydraulic oil

Dyna-Star

10:1

Available Electronically Only

Summary of content (4 pages)

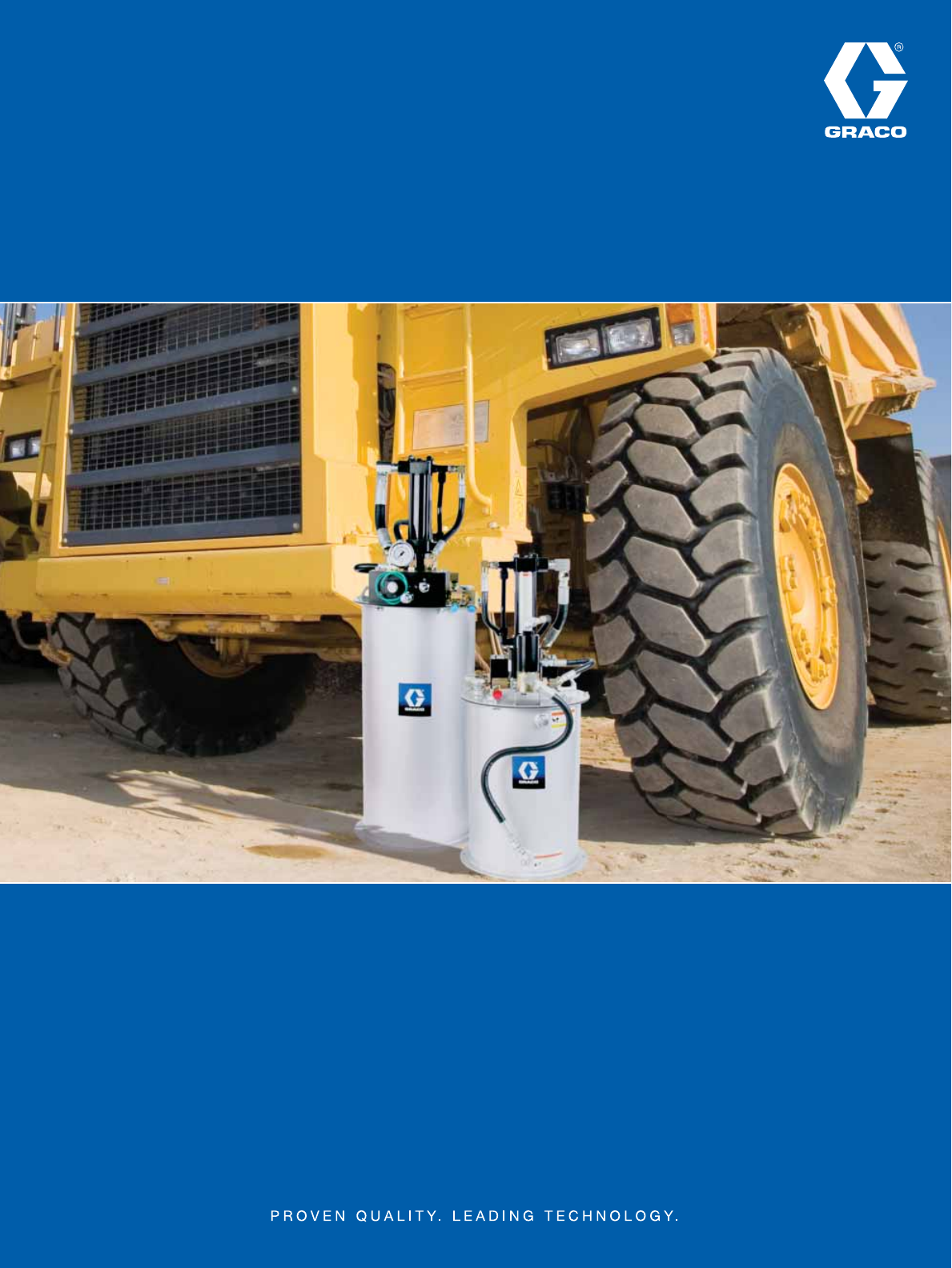

PAGE 1
Dyna-Star 10:1 ® ® High Ratio Hydraulically-Powered Lubrication Pump Available Electronically Only Long-lasting, ﬂexible design saves money and is easy to use and install • Achieve full pressure performance by safely tapping low pressure hydraulics • Pre-packaged modules ready-to-work with both injector and divider valve systems • Multiple pump and accessory options for use with reﬁnery drum and custom tank installations • Self-lubricating for long life and reliable operation • Ultra-quiet hydraulic motor
PAGE 2
Graco Quality by Design ® Superior System Performance Heavy-duty construction and mining equipment rely on fresh lubricant to ﬂush contaminants from critical pivot points. An automatic lubrication system from Graco provides constant lube replenishment, preventing expensive and catastrophic component failures.
PAGE 3
Typical Applications Mobile • Front-end loaders - 12 cu. yd. or higher • Mining trucks - 100 ton capacity or higher • Shovel fronts • Drag lines • Bucket wheel excavators Stationary • Cement plant • Jaw and gyratory crushers • Grinding mill seals • Mineral sizers • Ship loaders - slew bearings • Sludge pumps Ordering Information DYNA-STAR 10:1 MODULES AND KITS GL INJECTORS 247574 Dyna-Star 10:1 60 lb (27 kg) Pump Module - Injector - Overall height 35.15 in (842mm).
PAGE 4
Technical Speciﬁcations DYNA-STAR 10:1 PUMPS Part Number 247540 247443 247450 Drum Size 60 lb (27 kg) 120 lb (55 kg) 400 lb (180 kg) Overall Pump Length 33.9 in (861 mm) 41.5 in (1054 mm) 48.5 in (1232 mm) Pump Lower Length 19.75 in (501 mm) 26.75 in (679 mm) 33.75 in (857 mm) Maximum Hydraulic Input Pressure 600 psi (41 bar) 600 psi (41 bar) 600 psi (41 bar) Maximum Hydraulic Fluid Input Volume 3 gpm (11.4 lpm) 3 gpm (11.4 lpm) 3 gpm (11.4 lpm) Maximum Flow Output Rate 1.
