ACCESSORIES - CABLES

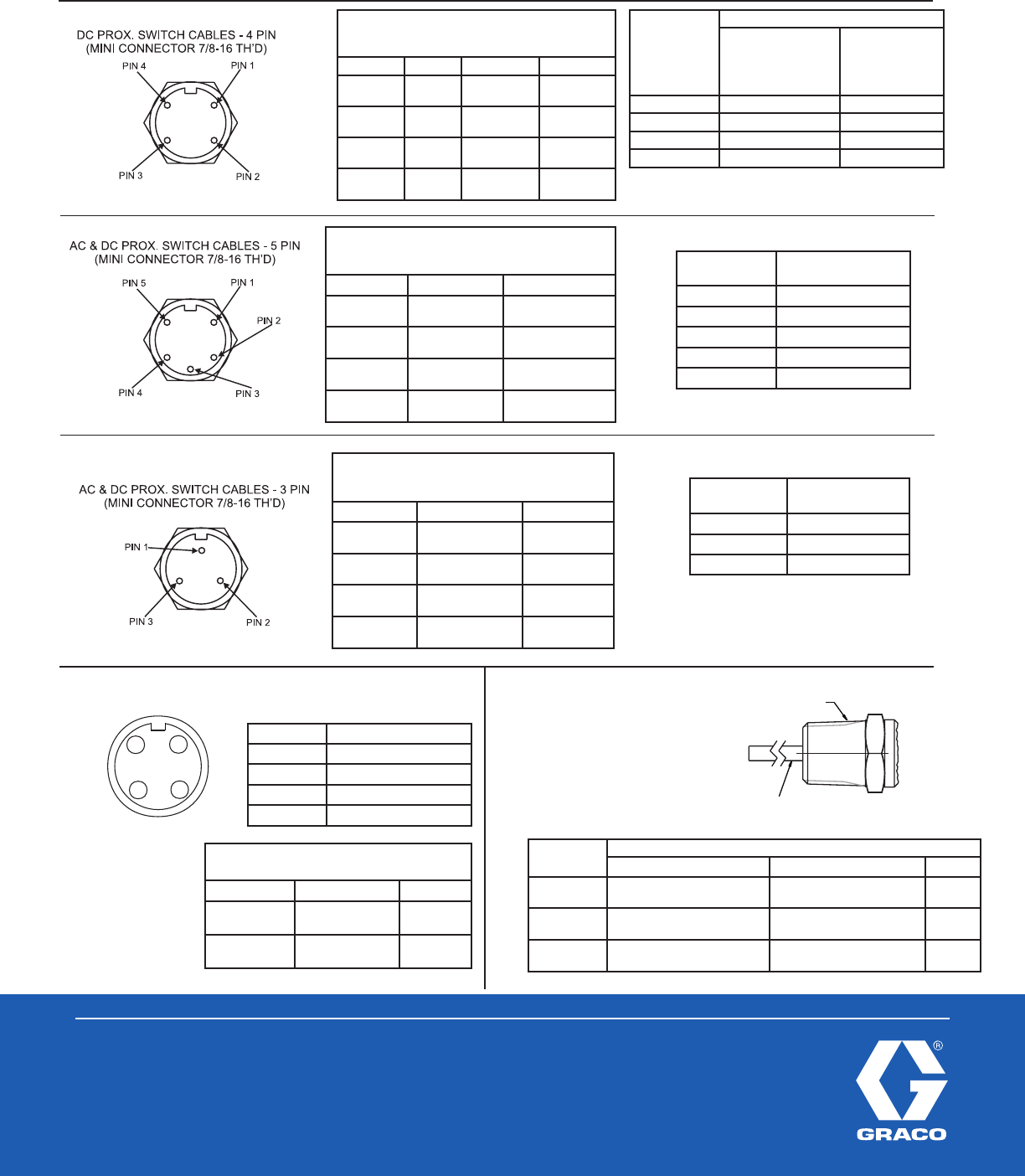

Graco offers a variety of connecting cables for use with its proximity switches. Cables are available with either straight or right-angle Mini,
or Micro connectors; with or without indicator lights and in lengths from three to twelve feet as listed in the tables below. (Pin callouts shown
below are from connecting cable).
* 1 = Sourcing * 2 = Sinking
1/2-14 NPT CONDUIT
CONNECTION
3No18AWG WIRE
CABLE6FEET LONG
EXPLOSION - PROOF
PROXIMITY SWITCHES
1
2
3
4
DC PROX. SWITCH CABLES - 4 PIN
(MICRO CONNECTOR M12 X 1 THREAD)
USA COLOR CODES
AC CABLE PIN
ASSIGNMENTS
White Pin 1 - N.O.
Red Pin 2 - Not Used
Green Pin 3 - Ground
Orange Pin 4 - Not Used
Black Pin 5 - Common
USA COLOR CODES
AC CABLE PIN
ASSIGNMENTS
Green Pin 1 - Ground
Black Pin 2 - Common
White Pin 3 - N.O.
COLOR CODES DC CABLE PIN ASSIGNMENT
Brown Pin 1 - Com. (Pwr)
White Pin 2 - Not Used
Blue Pin 3 - Ground
Black Pin 4 - N.O.
4-PIN CABLE OPTIONS
for DC-Powered Applications
Connector Part No. (Old) Cable Length
Straight
–
(570-999-590)
6.6 ft
90
O
Disc.
(570-999-600)
6.6 ft
CABLE WIRES
COLOR CODE:
EURO
DC CABLE PIN ASSIGNMENTS
PNP Cable*1
(with LED Operational
Indicators)
NPN Cable*2
(with LED
Operational
Indicators)
Black Pin 1 - N.O. Pin 1 - N.O.
Blue Pin 3 - Common Pin 2 - Common
White Pin 4 - Ground Pin 4 - Ground
Brown Pin 2 - Power Pin 3 - Power
5-PIN CABLE OPTIONS
for AC or DC-Powered Applications
(No Operational Indicators in Cables)
Connector Part N0. (Old) Cable Length
Straight
–
(570-999-180)
3 ft
Straight
558023
(570-999-160)
6 ft
Straight
558024
(570-999-170)
12 ft
90
O
558965
(570-999-390)
6 ft
3-PIN CABLE OPTIONS
for AC or DC-Powered Applications
(No Operational Indicators in Cables)
Connector Part No. (Old) Cable Length
Straight
Disc.
(570-999-070)
3 ft
Straight
558021
(570-999-080)
6 ft
Straight
558022
(570-999-090)
12 ft
90
O
Disc.
(570-999-350)
6 ft
Part No. (Old)
Wire Color For
Common Normally Open Ground
557745
(527-003-431)
Black Blue or White Red
563485
(527-006-060)
Black or Red w/Black Stripes White or Red w/White Stripes Green
564401
(527-006-150)
Black or Red w/Black Stripes White or Red w/White Stripes Green
4-PIN CABLE OPTIONS
For DC-Powered Applications
with LED Power/Operational Indicators
Connector Polarity Part No. (Old) Cable Length
Straight NPN
558968
(570-999-937)
12 ft
90
O
NPN
–
(570-999-938)
12 ft
Straight PNP
558025
(570-999-953)
12 ft
90
O
PNP
558026
(570-999-954)
12 ft
