User's Manual

Page 3
L15600

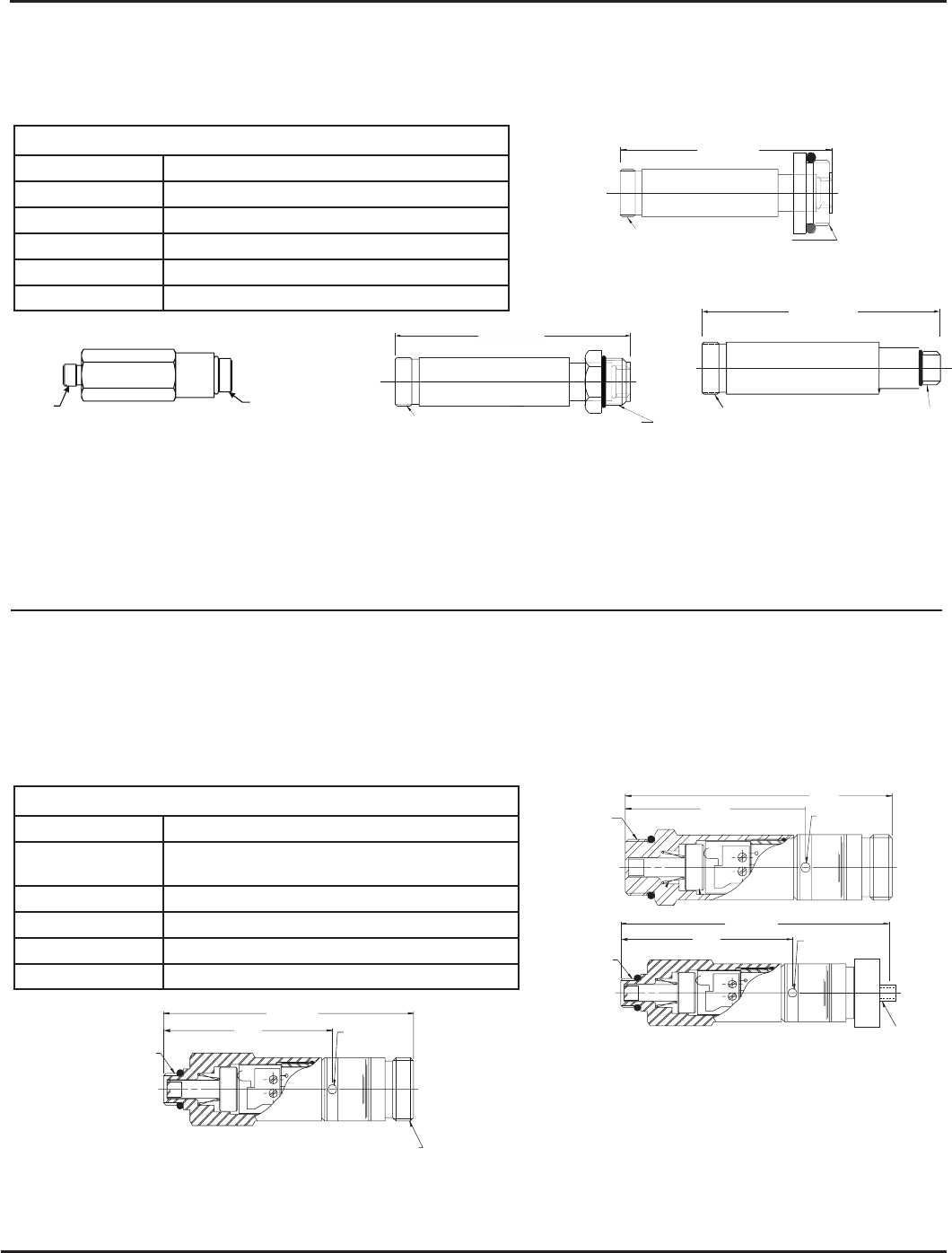

Cycle-Indicator Proximity Switches
7/16-20 THREAD
FOR MOUNTING
INTO MSP PISTON
ENCLOSURE
PORT
2.400
REF
4.35
APPROX.
LED INDICATOR
M12X1 THREAD
FOR4PIN
MICRO CONNECTOR
LUBRIQUIP
, INC.
24 VDC
PROXIMITY SWITCH
USED BY MSP, MH
TRABON
®
FS
MECH
- TYPE PROXIMITY SWITCHES - 3 PIN, 4 PIN, 5 PIN, EXPL. PROOF
7/16-20 THREAD
FOR MOUNTING
INTO MSP & MHP
PISTON ENCLOSURE
PORT
2.400
REF
3.500
APPROX.
LED INDICATOR
7/8-16 UNS THREAD
FOR BRAD HARRISON
CABLE CONNECTION
LUBRIQUIP, INC.
24 VDC
PROXIMITY SWITCH
USED BY MSP , MH
LUBRIQUIP, INC.
24 VDC
PROXIMITY SWITCH
3/4-16 THREAD
FOR MOUNTING
INTO MXP PISTON
ENCLOSURE PORT
2.400
3.500
APPROX
LED INDICATOR
TRABON
®
FSM -TYPE PROXIMITY SWITCHES - 3 PIN, 4 PIN, 5 PIN, EXPL. PROOF
7/16-20 THREAD FOR DIRECT
MOUNTING INTOMSP &MHP
PISTON ENCLOSURE PORT.
7/8-16 UNS THREAD
FOR BRAD HARRISON
CABLE CONNECTOR
(TYPICAL)
Used on MSP,MH
4.000 REF.
7/8-16 UNC THREAD
FOR BRAD HARRISON
CABLE CONNECTOR
Used on MX/MXP
3/4-16 THREAD FOR DIRECT
MOUNTING INTO MXP PISTON
ENCLOSURE PORT
4.000 REF.
4.000 REF.
1 3/8-16 THREAD.
FOR DIRECT
MOUNTING INTO
MGO PISTON
ENCLOSURE PORT
Used on MGO
7/8-16 UNC THREAD
FOR BRAD HARRISON
CABLE CONNECTOR
M12x1 4-PIN
MICRO CABLE
CONNECTION
3/4-16 THREAD
FOR DIRECT
MOUNTING INTO MXP
ENCLOSURE PORT
Used on MXP
† The FS
mech
illuminated Proximity Switches (i.e. 527-005-670) are designed to work with controllers and
PLCs which have a typical input impedance of 1500 ohms or less. Using the switch on devices which
have an input impedance about 3000 ohms or larger may cause the input to not recognize a change of
state to the closed position. If using a high impedance input, it is suggested that a 527-006-050 non
illuminated FS
mech
switch be used. If state indication is required, a connecting cable with LEDs should be
used.
SPECIFICATIONS
Material Type 303 SS Housing, Buna-N O-Ring
Electrical 2A @ 120/240 VAC, 1A @ 12-32 VDC, N.O.
Lubricant Oil or Grease
Max Cycle Rate 200 cpm (See rated life cycles in table)
Temperature Range -22ºF to 250ºF (-30ºC to 121ºC)
Max Pressure (See Table)
SPECIFICATIONS
Material Type 303 SS Housing, Viton O-Ring
†Electrical With LEDs 25mA @ 24 VDC, N.O.;
Without LEDs 1.2 VA @ 24 VDC, 5A @ 115/230 VAC, N.O.
Lubricant Oil or Grease
Max Cycle Rate 150 cpm (See rated life cycles in table)
Temperature Range -58ºF to 167ºF (-50ºC to 75ºC)
Max Pressure 7500 psi
