User's Manual

Page 2
O-Ring Seal Style"
(1)

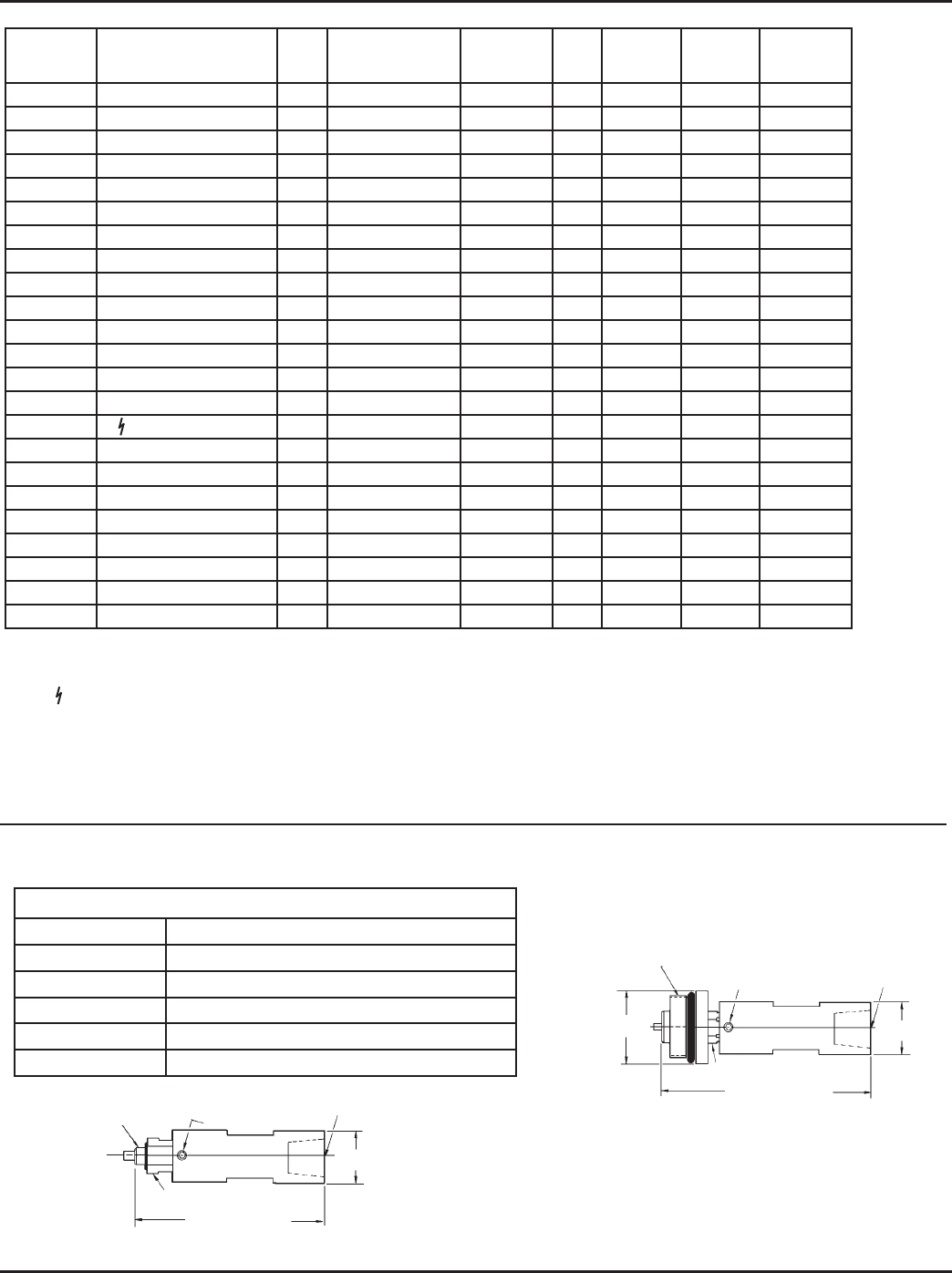

Cycle-Indicator Proximity Switches
L15600
TRABON
®
REED TYPE PROXIMITY SWITCHES
1/2 NPT
1.12 Dia.
(28.5)
Part No. – (570-155-001)
Used on MGO Divider Valves
Wrench Surface 0.62 (15.8)
4.50 Min. Adjustment
(114.3)
4.75 Max. Adjustment
(120.6)
1/4-20 Soc. Set Screw
3 Places 120
o
Apart
1.56 Dia.
(39.6)
1 3 /8-16
UN-2A
Thd.
Part No. 563427 (527-001-231)
Used on MH, MSP
Divider Valves
3.87 Min. Adjustment
(98.4)
4.12 Max. Adjustment
(104.7)
1/2 NPT
1/4-20 Soc. Set Screw
3 Places 120
o
Apart
1.12 Dia.
(28.5)
Wrench Surface 0.62 (15.8)
7/16-20 UNF-2A Thd.
(MSP & MH)
NOTE:
(1)
Cycle Indicator Proximity Switches shown in this bulletin are for use in divider valves having
O-ring sealed piston closure ports only.
Modular
Divider Type
Proximity Switch Part No.
(Old Part No.)
Prox.
Switch
Type
Operating Voltage
Cable Electric
Connection
LED
Max Cycle
Rate Per Min
Max
Pressure
Rating - psi
Rated Life -
Cycle
MGO
UL+CSA
563495 (527-007-120) FSM 10-32 VDC 4-pin CH Mini No 200 10,000** 150,000,000+
MGO
UL+CSA
564402 (527-007-160) FSM 115 VAC 5-pin BH Mini No 200 10,000* 150,000,000+
MG0 – (570-155-001) Reed 115 VAC 1/2 in NPT cond No 60 7,500 10,000,000+
MGO
UL+CSA
563970 (570-999-060) FSM 115 VAC 3-pin BH Mini No 200 3,500 150,000,000+
MGO
UL+CSA
Disc. (570-999-220) FSM 115 VAC 5-pin BH Mini No 200 3,500 150,000,000+
MXP/MX/MXO
UL+CSA
564399 (527-005-190) FSM 115 VAC 5-pin BH Mini No 200 3,500 150,000,000+
MXP/MX/MXO
UL+CSA
563476 (527-005-520) FSM 115 VAC 3-pin BH Mini No 200 3,500 150,000,000+
MXP/MX/MXO 563486 (527-006-130) FS
mech
20-32 VDC 3-pin BH Mini Yes 150 7,500 10,000,000+
MXP/MX/MXO 564400 (527-006-140) FS
mech
20-32 VDC 5-pin BH Mini Yes 150 7,500 10,000,000+
MXP/MX/MXO
CSA
NRTL
564401 (527-006-150) FS
mech
115 VAC or 10-32 VDC Expl Proof* No 150 7,500 10,000,000+
MXP/MX/MXO
UL+CSA
557752 (527-007-110) FSM 10-32 VDC 4-pin CH Mini No 200 10,000** 150,000,000+
MXP/MX/MXO
UL+CSA
558938 (527-007-140) FSM 115 VAC 5-pin BH Mini No 200 10,000** 150,000,000+
MXP/MX/MXO
UL+CSA
564403 (527-007-269) FSM 10-32 VDC 4-pin Micro No 200 10,000** 150,000,000+
MSP/MH
UL+CSA
557741 (527-003-251) FSM 115 VAC 3-pin BH Mini No 200 3,500 150,000,000+
MSP/MH 557745 (527-003-431) FSM 115 VAC Expl Proof* No 200 3,500 150,000,000+
MSP/MH
UL+CSA
557746 (527-004-111) FSM 115 VAC 5-pin BH Mini No 200 3,500 150,000,000+
MSP/MH
UL+CSA
557747 (527-004-112) FSM 10-32 VDC 4-pin CH Mini No 200 3,500 150,000,000+
MSP/MH 563477 (527-005-670) FS
mech
20-32 VDC 5-pin BH Mini Yes 150 7,500 10,000,000+
MSP/MH 563478 (527-005-690) FS
mech
20-32 VDC 3-pin BH Mini Yes 150 7,500 10,000,000+
MSP/MH 563484 (527-006-050) FS
mech
115 VAC or 10-32 VDC 5-pin BH Mini No 150 7,500 10,000,000+
MSP/MH
CSA
NRTL
563485 (527-006-060) FS
mech
115 VAC or 10-32 VDC Expl Proof* No 150 7,500 10,000,000+
MSP/MH 563427 (527-001-231) Reed 115 VAC or 10-32 VDC 1/2 in NPT cond No 60 7,500 10,000,000+
MSP/MH 563501 (527-007-273) FS
mech
20-32 VDC 4-pin Micro Yes 150 7,500 10,000,000+
UL+CSA = Approved
CSA
NRTL
= Approved for hazardous locations: Class I, Groups A, B, C & D - Division 1
= UL and CSA approved for hazardous locations: Class I, Groups A, B, C & D - Division 1; Class II, Groups E, F & G - Division 1
*Includes 6ft, 3 conductor cable, shown on page 4
**Specially developed and recommended for stamping press applications
SPECIFICATIONS
Material Aluminum HSG, SS Magnet HSG, Buna-N O-Ring
Electrical 0.5A @ 50 VDC, 10mA @ 115 VAC, N.O.
Lubricant Oil Only
Max Cycle Rate 60 cpm
Temperature Range -20ºF to 180ºF (-29ºC to 83ºC)
Max Pressure 7500 psi
