Accessory Frame Kit 24H585
3A1302D 9
Parts
Parts List
1
4
4
3
5
2
8
8
6
9

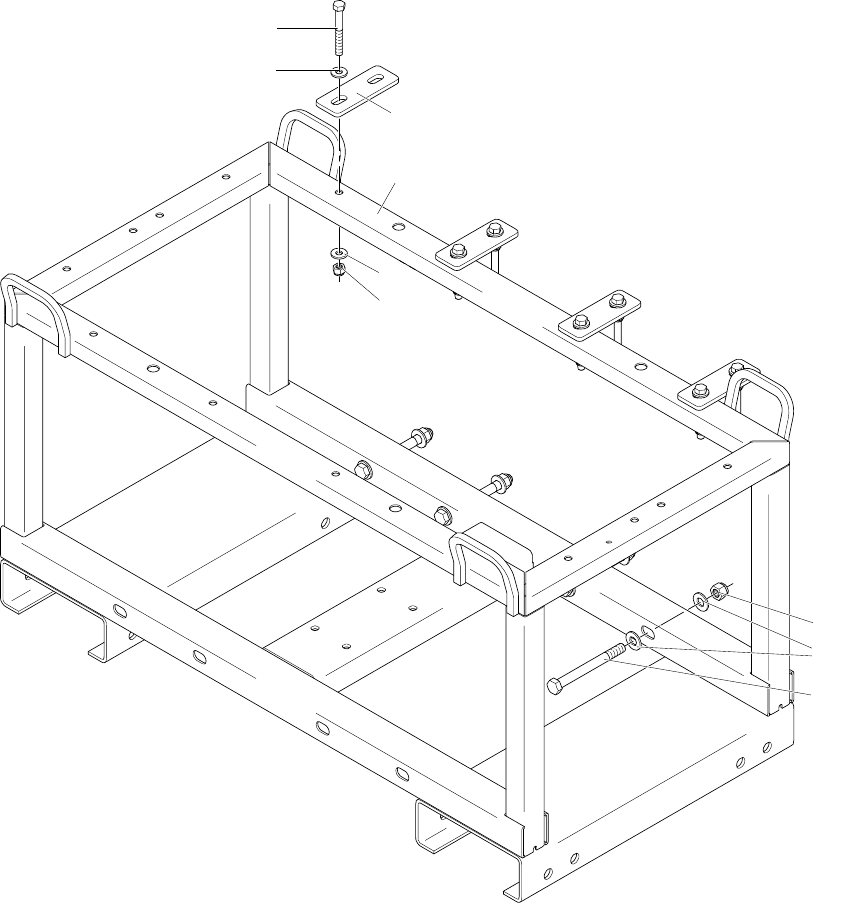

ti17164a
Ref. Part Description Qty.
1 24H826 FRAME, Roadpak accessory 1
2 24J016 STRAP, frame, painted 4
3 115211 SCREW, cap, hex HD 4
4 109570 WASHER, plain 8
5 801020 NUT, lock, hex 4
6 100454 SCREW, cap hex HD 8
8 100023 WASHER, flat 16
9 101566 NUT, lock 8
