User's Manual

33 Gallon Paint Tank Kit (24G769)
3A1302D 7

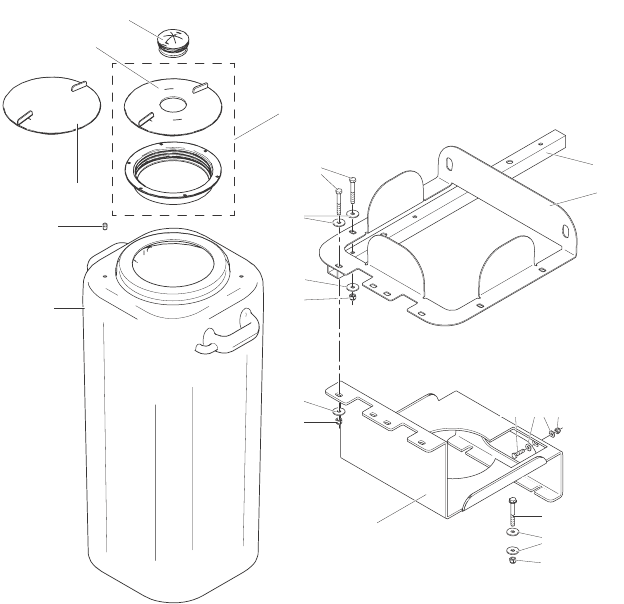

Parts
Parts List
Ref. Part Description Qty.
1 24H831 BRACKET, Roadpak paint tank,
painted
1
2 24H832 SLEEVE, Roadpak, painted 1
3 24J353 TANK, paint, with 8 in. man-way
(includes 15)
1
5 194420 GROMMET, hopper 1
6 106212 SCREW, cap, hex HD 8
7 108851 WASHER, plain 22
8 101566 NUT, lock 11
9 116935 SCREW, cap, flnghd 3
10 100527 WASHER, plain 4
11 111040 NUT, lock, insert, Nylock, 5/16 2
12 100521 SCREW, cap hex HD 2
13 107570 PLUG, pipe, square HD 1
14 24J370 SUPPORT, paint tank sleeve,
painted
1
15 16J474 COVER, with opening and bulk-
head rim
1
16 16J473 COVER, with opening 1
17 125240 COVER, without opening 1
ti17166b
1
2
14
77
7
7
7
7
66
9
8
8
8
1010
12
11
5
16
15
13
17
3
