User's Manual

33 Gallon Paint Tank Kit (24G769)
3A1302D 5
33 Gallon Paint Tank Kit (24G769)

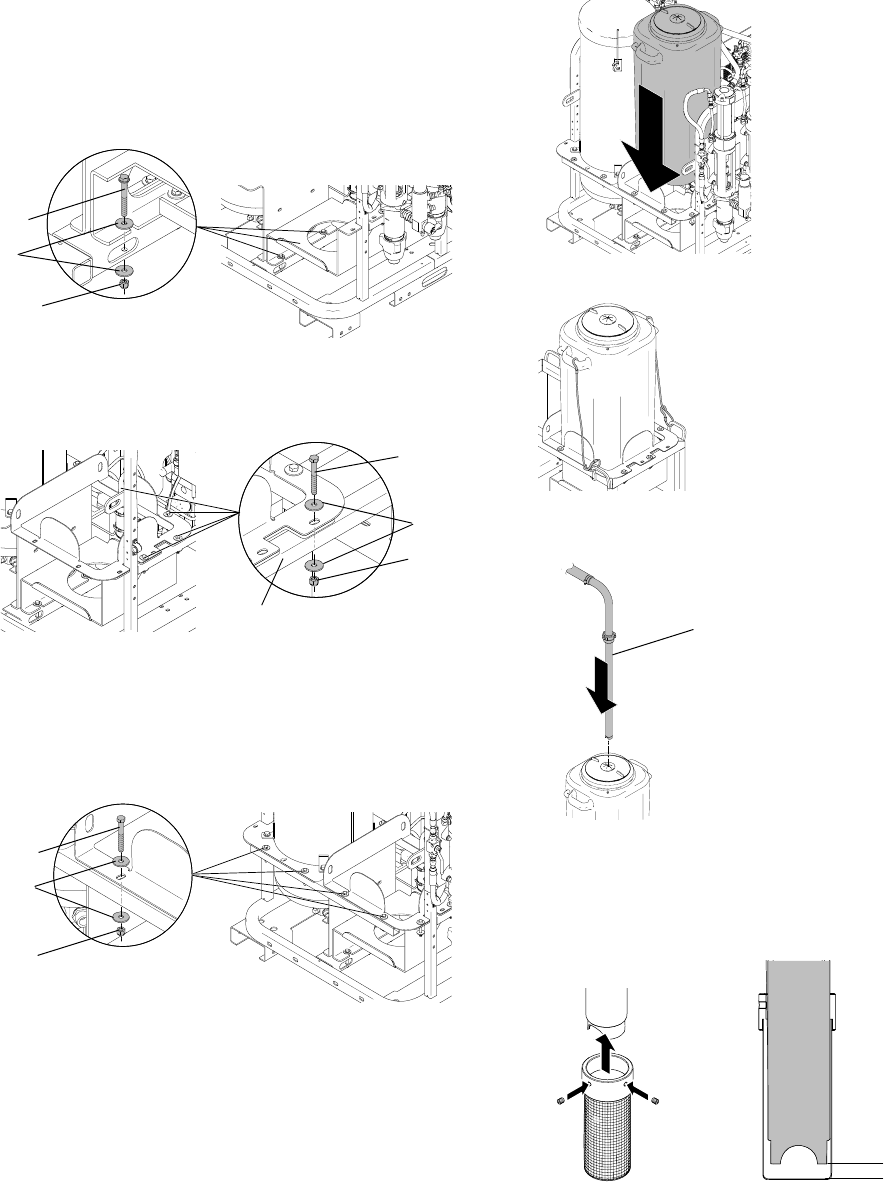

If Installing to RoadPak Frame:
1. Place paint tank bracket (1) into position on frame.
2. Install three bolts (9) and washers (7) on bottom of
support bracket (1). Thread nuts (8) onto bolts and
torque to 15 ft-lb (20.3 N•m).
3. Install four bolts (6) and washer (7) to secure sleeve
bracket (2) and support bracket (1) to the frame.
Thread nuts (8) onto bolts and torque to 15 ft-lb.
4. Install two bolts (6) and washer (7) to support bar
(14) and paint tank bracket (2). Thread nuts (8) onto
bolts and torque to 15 ft-lb (20.3 N•m). Install two
bolts (6) and washer (7) to support bar (14) and to
bead tank bracket. Thread nuts (8) onto bolts and
torque to 15 ft-lb (20.3 N•m).
5. Insert paint tank (3) into sleeve bracket.
6. Secure paint tank with tie-down straps.
7. Insert suction tube (with strainer removed) through
top grommet (5).
NOTE: Optional Bottom Feed Fittings Kit 24J149 is
available for paint tank.
8. Connect strainer onto suction set. Strainer should
be about 1/2 in. from bottom of suction set.
7
9
ti17195a
8
6
7
1
8
ti17299a
6
7
8
ti17192a
ti17189a
ti17197a
5
ti17191a
ti16553a
1/2 in.
