User's Manual

Parts
34 3A1149D
Parts
* These kits ship with software loaded. Upgrade token
16D942 is listed for reference only.
† The DGM must have a ferrite suppressor attached to
the DGM end of the long CAN cable.
1
2
2
1
4
6
5
7
3, 9, 10
1
2
11
3, 9, 10
11

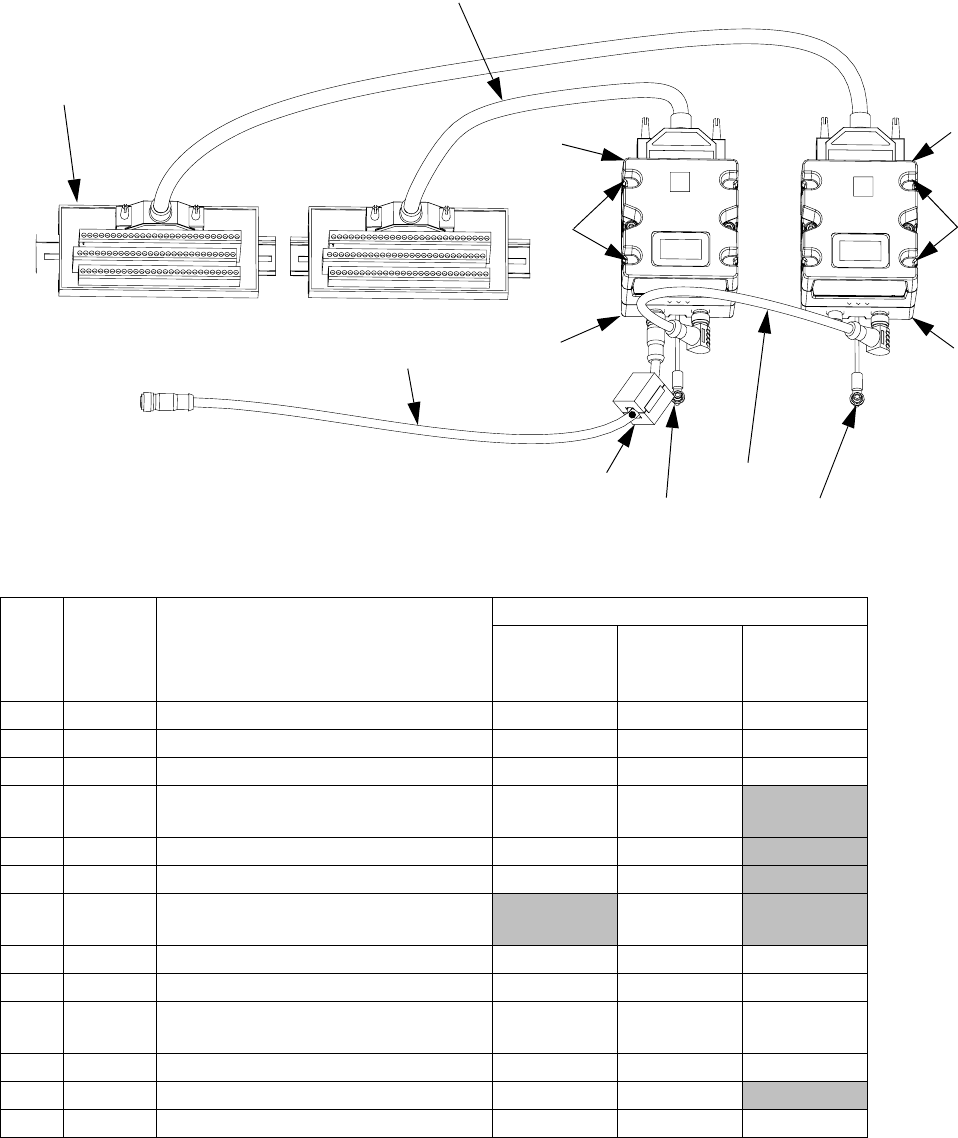

r_24f843_3A1149_1b
13
Ref Part Description
Quantity
24F843,
Single DGM
Kit
24F844,
Dual DGM
Kit
24G830,
DGM only
1 24B681 MODULE, GCA, cube, DGM 1 2 1
2 289697 MODULE, cube, GCA, base 1 2 1
3 24C476 HARNESS, wire, ground, term, 4 in. 1 2 1
4 124638 CABLE, 78 pin, 2.5 ft, D-sub, male
to female
1 2
5 123783 BOARD, DGM, 78 pin break out 1 2
6 121003 CABLE, CAN, female / female 3.0m 1 1
7 123762 CABLE, CAN, 90 x 90, female /
female, 0.5m
1
9 114993 SCREW, mach, pan wash head 1 2 1
10 102063 WASHER, lock, ext 2 4 2
11 113003 SCREW, socket head cap,
#10-32 x 0.62, stainless steel
5 10 5
12 277674 ENCLOSURE, cube door 1 2 1
13† 121901 SUPPRESSOR, box snap, ferrite 1 1
14 16D942 TOKEN, upgrade, software * * *
