Timing Diagrams
3A1149D
29
Operator Mode Dispense
F
IG

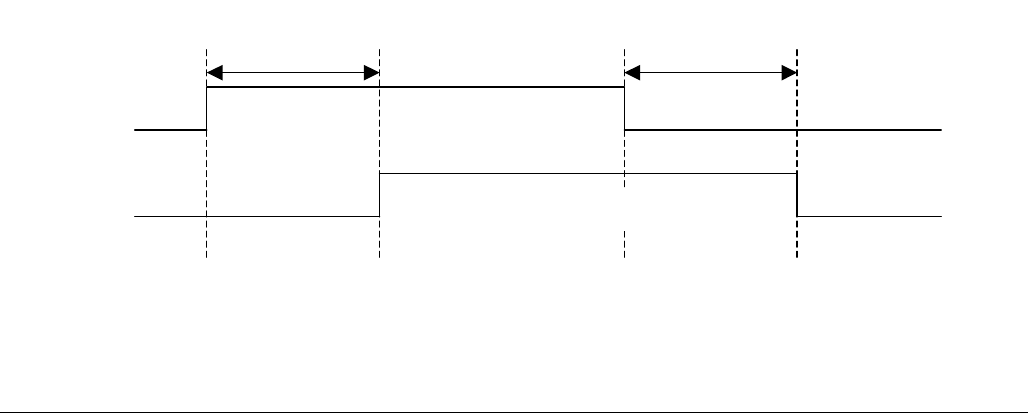

. 14: Operator Mode Dis
pense Timing Diagram
Dispense
Request
Dispense
Activity
>185 mS
>185mS
Dispensin
g
1
...
...
27
28
29
30
31
...
...
