Shot Mode Dispense
Shot Mode Dispense and Termination

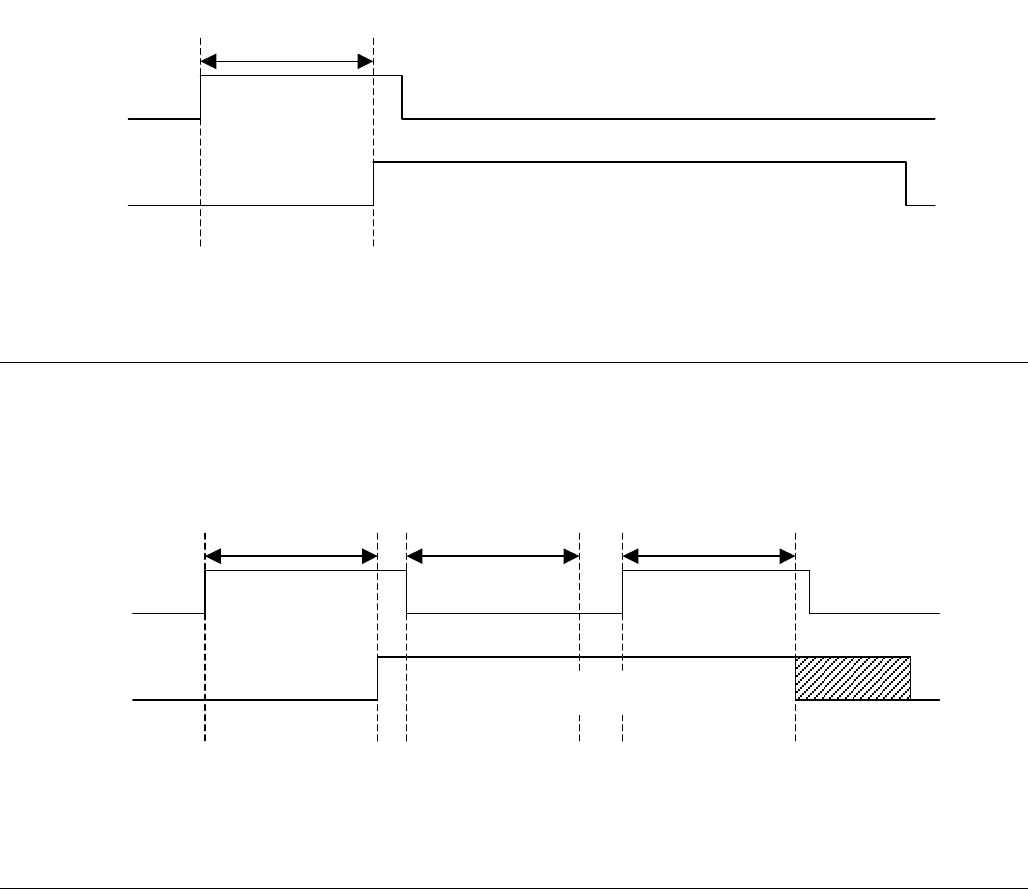

FIG. 12: Shot Mode Dispense Timing Diagram
F
IG. 13: Shot Mode Dispense Termination Timing Diagram
Dispense
Request
Dispensing
Dispense
Activity
>185 mS
Dispense
Request
Dispense
Activity
>185 mS
>185mS >185mS
Remainder of
shot not taken.
Dispensing
