User's Manual

Timing Diagrams
3A1149D 27
Change Setpoint
This procedure applies to the following functions:
• Changing the dispense pressure setpoint
• Changing the material temperature setpoint
Toggle On/Off
This diagram applies to the following functions:
• Open/Close the Dispense Valve
• Lock/Unlock the Dispense Valve
• Activate/Deactivate the Hydraulic Power Pack
F

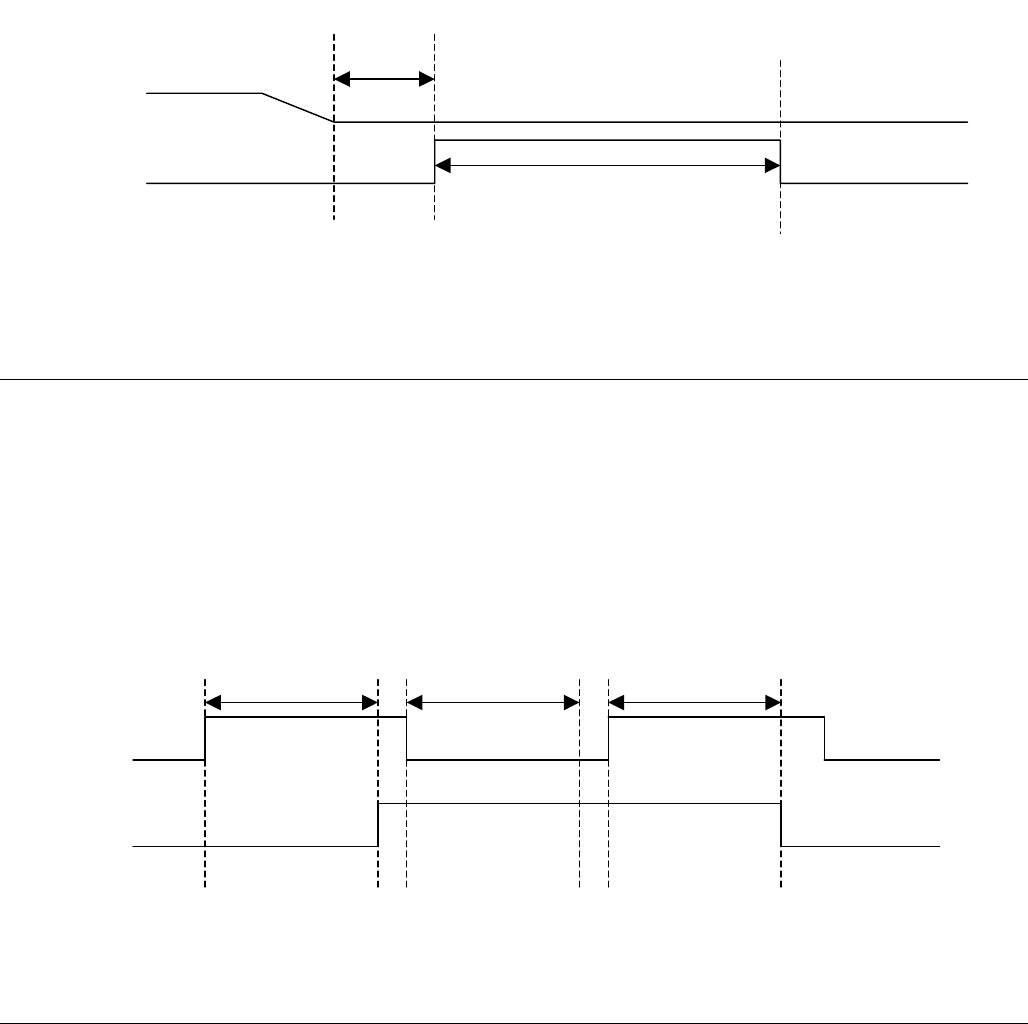

IG. 10: Change Setpoint Timing Diagram
>185 mS
10 mS
settle
Set New Value
Analog Voltage
Hold Analog Voltage
FIG. 11: Toggle On/Off Timing Diagram
Input
Signal
>185 mS
FFO NO FFO
>185 mS
Feature
Activity
>185 mS
