Timing Diagrams
26 3A1149D
System Requests
The following are system requests:
• Enabling the ADM
• Acknowledging Errors
• Parking the pump
Select an Operating Mode or Shot Number
The individual lines can change independently in any
order.

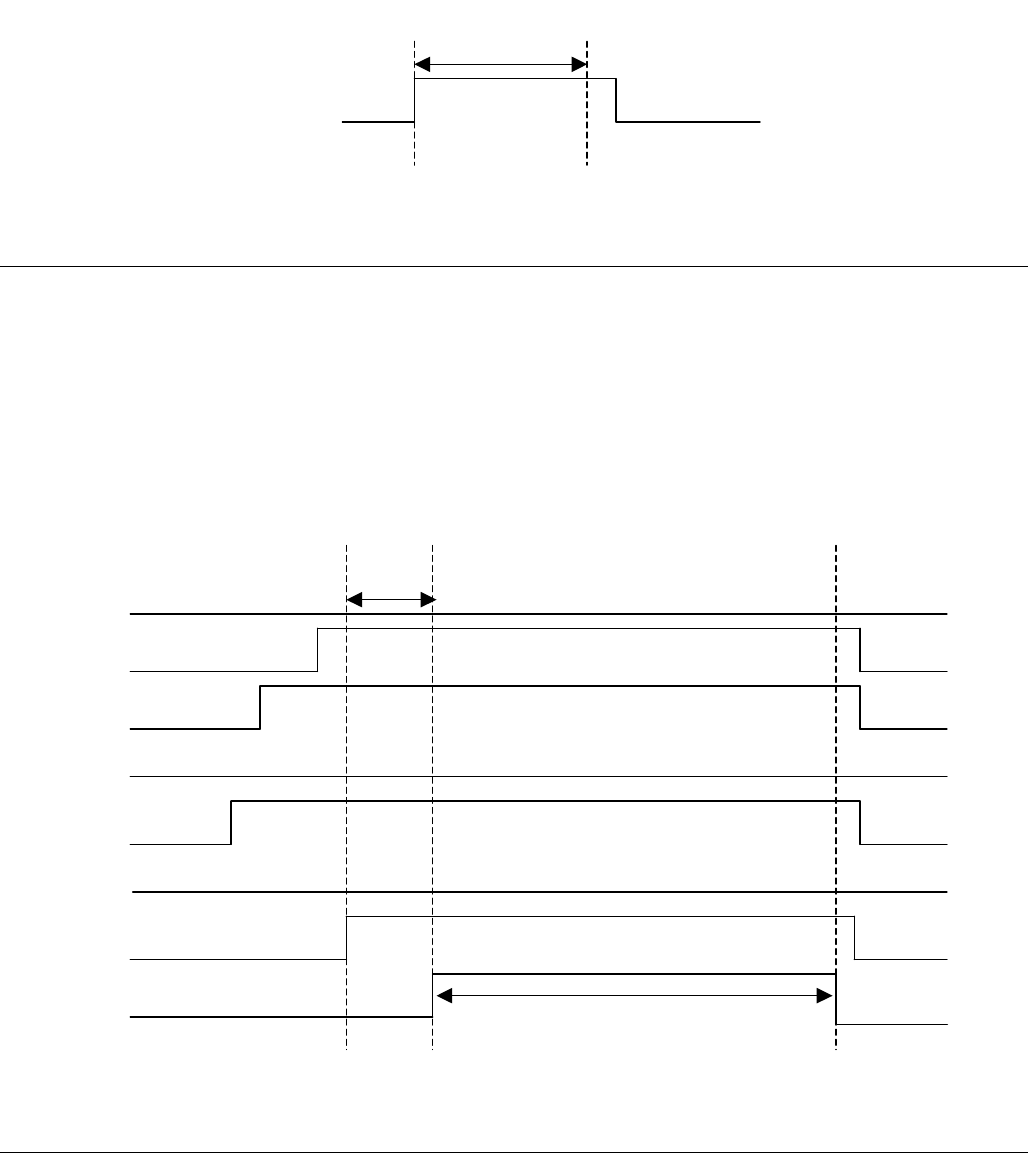

F
IG. 8: System Requests Timing Diagram
Input
Signal
>185 mS
Performing
Request
FIG. 9: Select a Shot Number Timing Diagram
>185 mS
10 mS
settle
Shot Sel 0
Shot Sel 1
Shot Sel 2
Shot Sel 3
Shot Sel 4
Shot Sel 5
Shot Sel 6
Set New
Shot Number
