Dimensions
Wetted Parts Steel, Fluorocarbon
Maximum Pressure 5076 psi (35 MPa, 350 bar)
Maximum Operating Temperature Fluorocarbon seals 350°F (177°C)
Lubricant Oil or grease up to NLGI #2
Output Volume
0.012 in
3
Inlet Threads 1/8 - 27 NPT
Outlet Adapter Threads 1/8 - 27 NPSF
Maximum Cycle Rate with Prox Switch 200 cpm
Mounting Holes Accomodate Bolt Diameter 0.25 in. (6 mm)
USP
Outlets
Length Width Thickness
Mounting
Holes A
Mounting
Holes B
inch mm inch mm inch mm inch mm inch mm
6 2.9875.72.3760.21.5038.12.5063.51.8446.7
8 2.9875.72.3760.21.5038.12.5063.51.8446.7
10 2.98 75.7 2.48 63.0 1.75 44.5 2.50 63.5 2.08 52.8
12 2.98 75.7 2.48 63.0 1.75 44.5 2.50 63.5 2.08 52.8
14 2.98 75.7 2.88 73.2 2.25 57.2 2.50 63.5 2.40 60.9
16 2.98 75.7 2.88 73.2 2.25 57.2 2.50 63.5 2.40 60.9

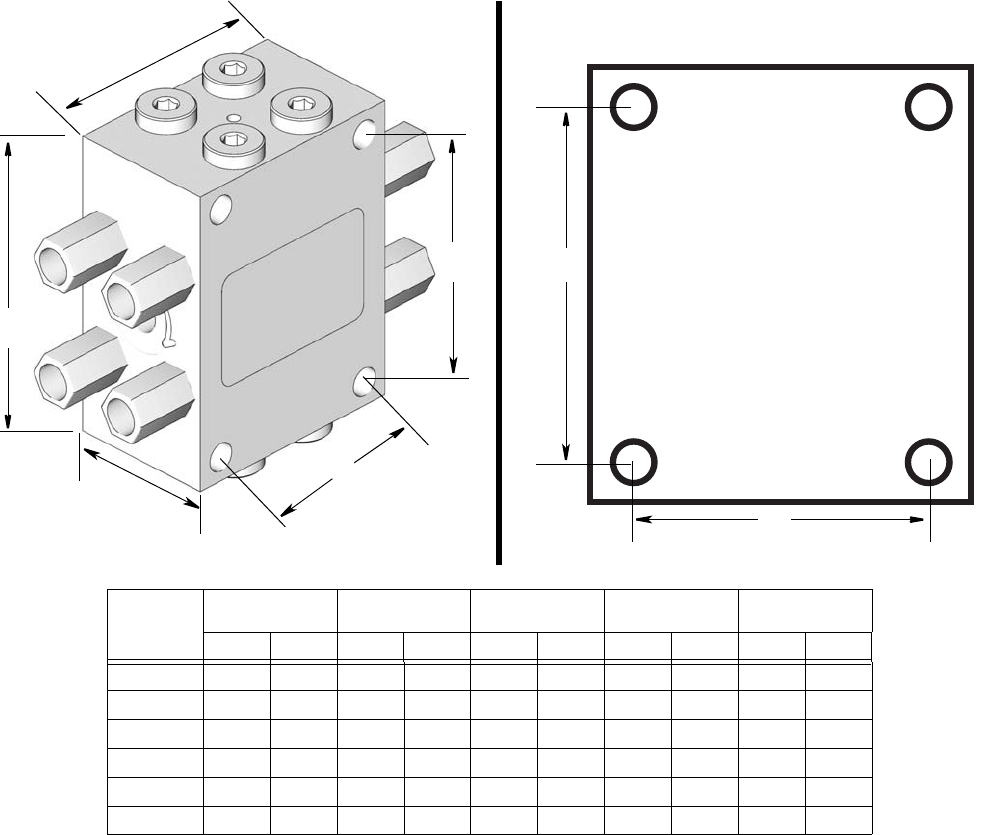

Length
Width
Thickness
A
B
Mounting Pattern
A
B
