Parts
6 3A0860F
Parts
*
2
3
1
Torque to 15 - 18 ft.-lbs (20.3 - 24.4 N.m)
1
1
Torque to 8 - 10 ft.-lbs (10.8 - 13.5 N.m)
2
2
ti14066
5
4

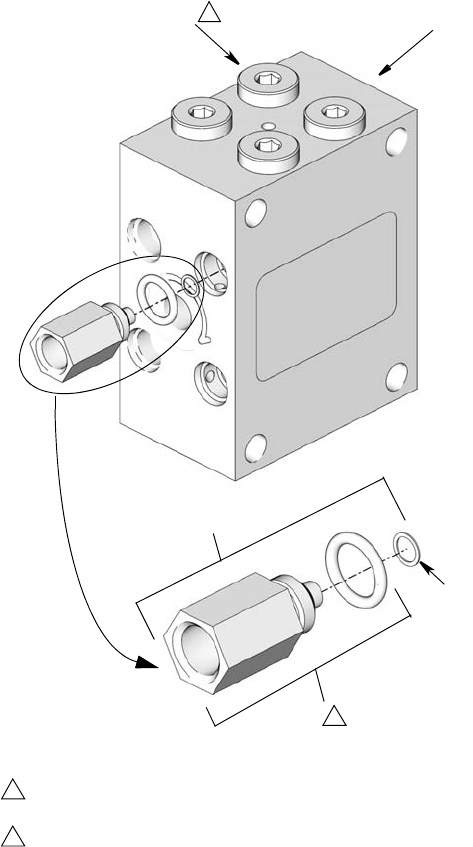

FN Part No. Description Qty
1 VALVE, 4 piston honed, models
24E406, 24E407
1
VALVE, 6 piston honed, models
24E408, 24E409
1
VALVE, 8 piston honed, models
24E410, 24E411
1
2 24E757 PLUG, w/o ring, models 24E406,
24E407
8
PLUG, w/o ring, models 24E408,
24E409
12
PLUG, w/o ring, models 24E410,
24E411
16
3 24E857 KIT, checked outlet adapter, NPSF
• Model 24E406
6
• Model 24E407
8
• Model 24E408
10
• Model 24E409
12
• Model 24E410
14
• Model 24E411
16
4 24E232 ADAPTER, outlet, NPSF
1
5 125011 SEAL, face, elastomeric
1
6 557349 PLUG, dry seal 1/8 NPTF (not
shown, shipped loose)
1
