User's Manual

Parts
333347F 95

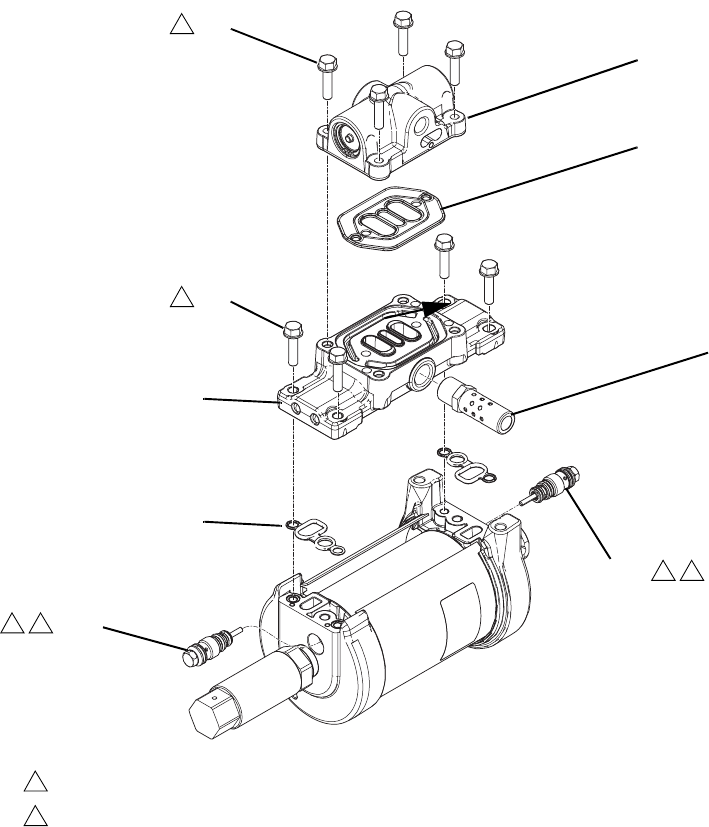

Air Motor, 24V558
- -- Not for sale.
† Included in Air Motor Valve Kit 24R026.
WLD
509
Apply water-resistant grease.
Torque to 95-105 in-lb (10.7-11.9 N•m).
1
2
505
522
507
511
511
2
513
506
512
509
4
1
21
2
Ref. Part Description Qty
505 24A579
MANIFOLD, medium, short
1
506 ---
GASKET, cover, small
2
507† ---
SEAL, air valve, manifold
1
509† ---
SCREW, m6 x 25, thread forming
8
511 ---
VALVE, pilot
2
512† ---
VALVE, air, small
1
513 15M213
MUFFLER, 3/8
1
