User's Manual

Parts
92 333347F

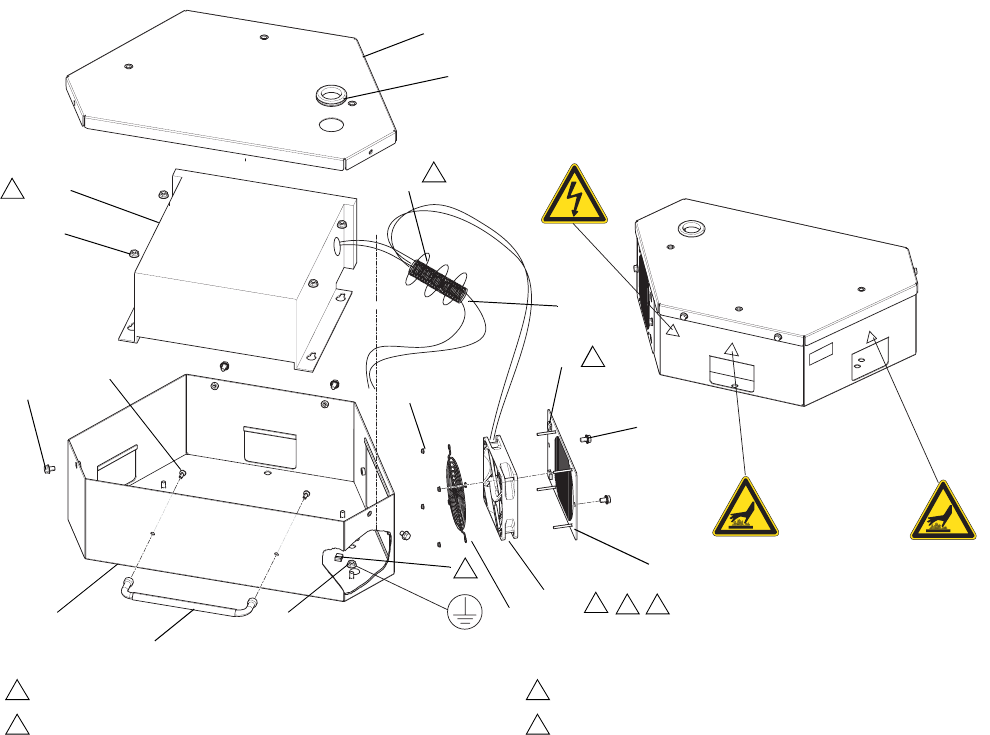

Transformer Assemblies
Transformer Assemblies
▲ Replacement Danger and Warning labels, tags, and cards
are available at no cost.
★ Included in Fan Replacement Kit 24V911.
--- Not for sale.
WLD
Mount fan with arrow pointing towards grill.
Tie down cabling from transformer and fan using cable tie onto
tie down locations. Remove excess slack and ensure cabling
does not contact fan blades.
Use nut to lock down the ground wire from transformer.
Connect black fan wire labeled (-) from transformer (153) in the
pin labeled (-). Connect red fan wire labeled (+) to the
connector coming from transformer (153).
1
2
3
4
152
160
156
157
156
161
167
154
155
1
2
151
158
157
166
166
166
161
2
2 4
153
4
170
168
168
3
Ref. Part Description Qty
151 ---
ENCLOSURE, base, 480v
1
152 ---
ENCLOSURE, top, 480v
1
153 ---
TRANSFORMER, 480v/240v,
6kva; 480V systems only
1
---
TRANSFORMER, 400v/240v,
6kva; 400V systems only
1
154 ---
GRILL, fan
1
155
★ ---
FAN, 24 vdc, 120m x 120m
1
156 115942
NUT, hex, flange head
5
157 119865
SCREW, mach, hex serrated, 1/4
x 3/8 in.
6
158 127278
NUT, keps, hex
4
160 ---
GROMMET, air fitting
1
161 125871
TIE, cable, 7.5 in.
5
162 172953
LABEL, designation
1
166
▲ 17A071
LABEL, safety, warning
1
167 ---
TUBE, corrugated, slit; 6 in.
(152.4 mm)
1
168
169
170 127754
GRILL, fan
Ref. Part Description Qty
