User's Manual

Parts
90 333347F

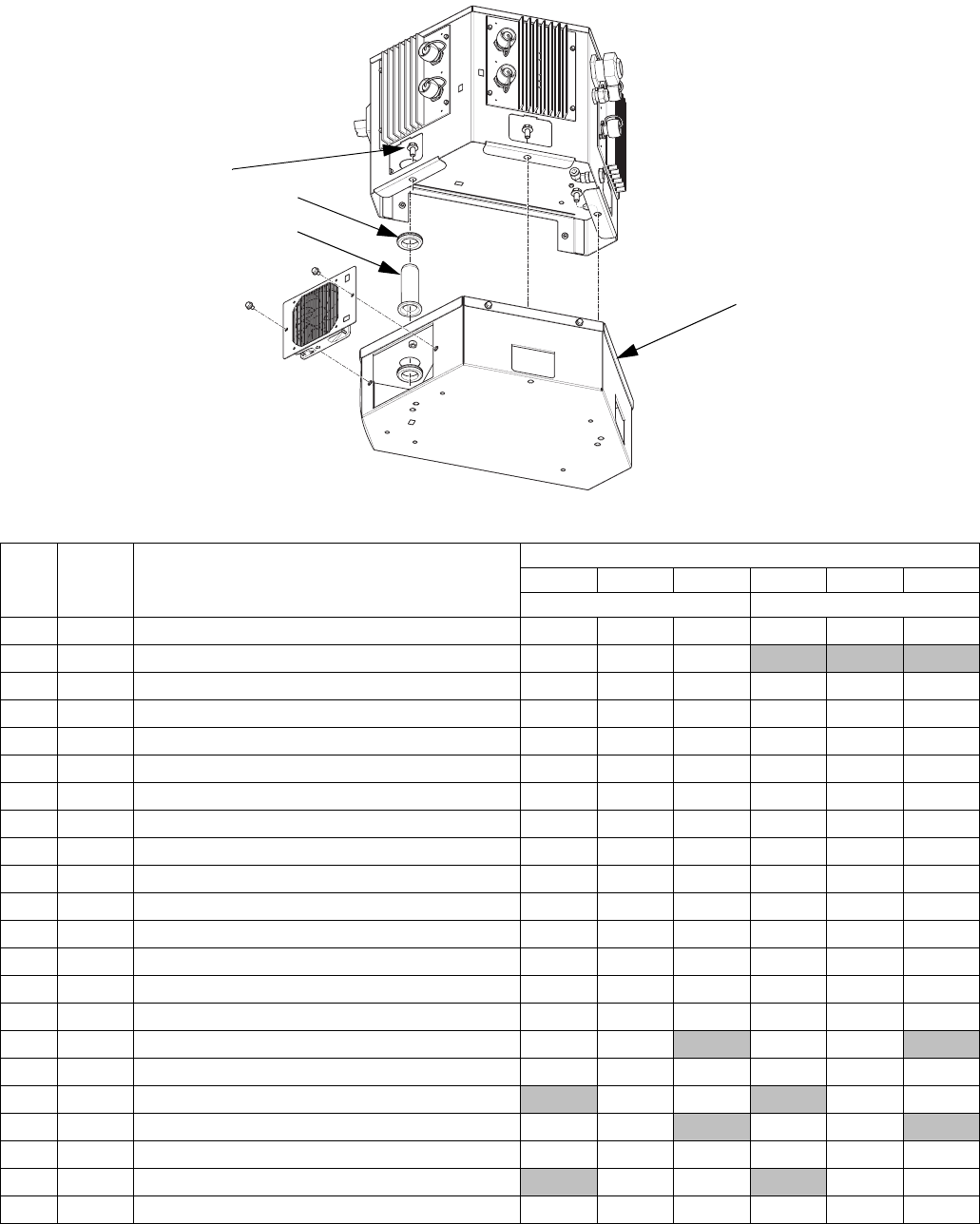

Electrical Enclosure Parts
WLD
142
141
137
140
Ref Part Description
Quantity
1 MZLP 2 MZLP 3 MZLP 1 MZLP 2 MZLP 3 MZLP
No Transformer 400/480 V Transformer
101
--- CABINET, controls
1 1 1 1 1 1
102
122030 CABLE, gca, m12-5p
1 1 1
103
--- HARNESS, MZLP1, AWB
1 1 1 1 1 1
104
123970 SWITCH, disconnect, 40a
1 1 1 1 1 1
105
126839 CONTACT, n-pole
1 1 1 1 1 1
106
120858 BUSHING, strain relief, m40 thread
1 1 1 1 1 1
107
120859 NUT, strain relief, m40 thread
1 1 1 1 1 1
108
104641 FITTING, bulkhead
1 1 1 1 1 1
109
121141 FITTING, elbow, swivel, 3/8t 1/4mnpt
1 1 1 1 1 1
110
114421 BUSHING, strain relief
1 1 1 1 1 1
111
117666 TERMINAL, ground
1 1 1 1 1 1
112*
--- MODULE, MZLP with daughter board
1 1 1 1 1 1
112a
24R042 KIT, board, daughter
1 1 1 1 1 1
113
16T440 CAP, souriau, uts14
2 4 6 2 4 6
114
125856 SCREW, 8-32, serrated flange
12 12 12 12 12 12
116
24P175 PLATE, blank, sgl mztcm
2 1 2 1
117
115942 NUT, hex, flange head
1 1 1 1 1 1
118
24V510 MODULE, gca, MZLP
1 2 1 2
119
--- GASKET, foam, mztcm
2 1 2 1
120
--- PIN, dowel
1 1 1 1 1 1
121
16T087 CABLE, board, male/male, 21 in.
1 2 1 2
123
127768 CABLE, can, female/female 1.5 m
1 1 1 1 1 1
