Air Schematic
82 333347F

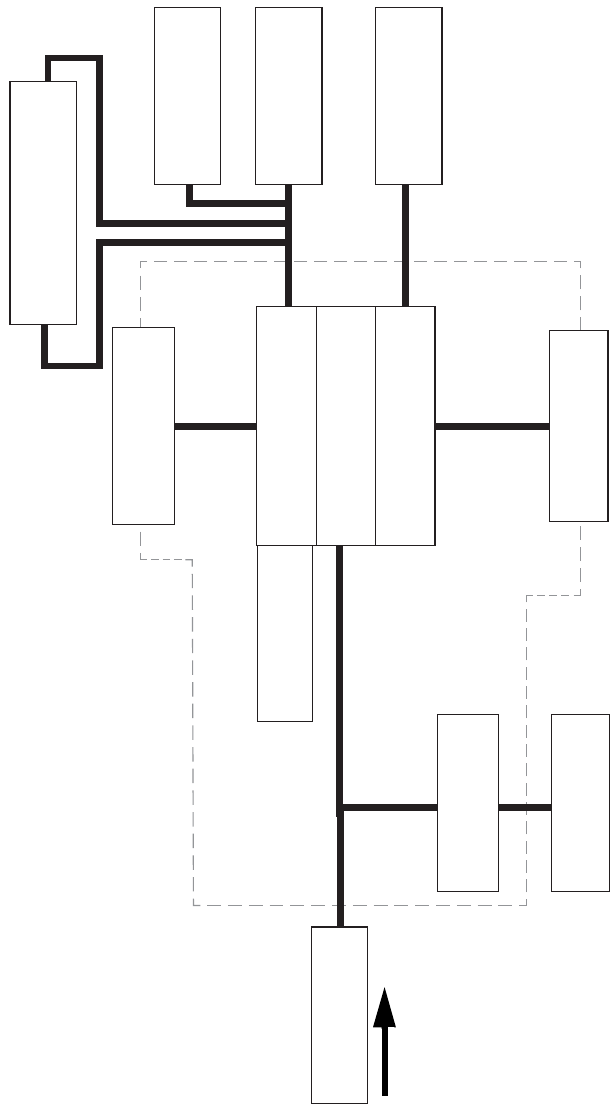

Air Schematic
NOTE: Install an optional ramp up/down controller to
limit air to the air motor and slow down the system dis-
pense rate.
Level Sensor
Restrictor
Level Air Sensor
Refill Gauge
Air Control Manifold
Refill Control Solenoid
Air Motor Control Solenoid
Air Motor Gauge
Pressure Relief
Valve
Air Motor
Feed Wand
Line Air Inlet
Under Control Box
Optional Ramp Up/Down
Controller
Safety Pop Off Valve
