Troubleshooting

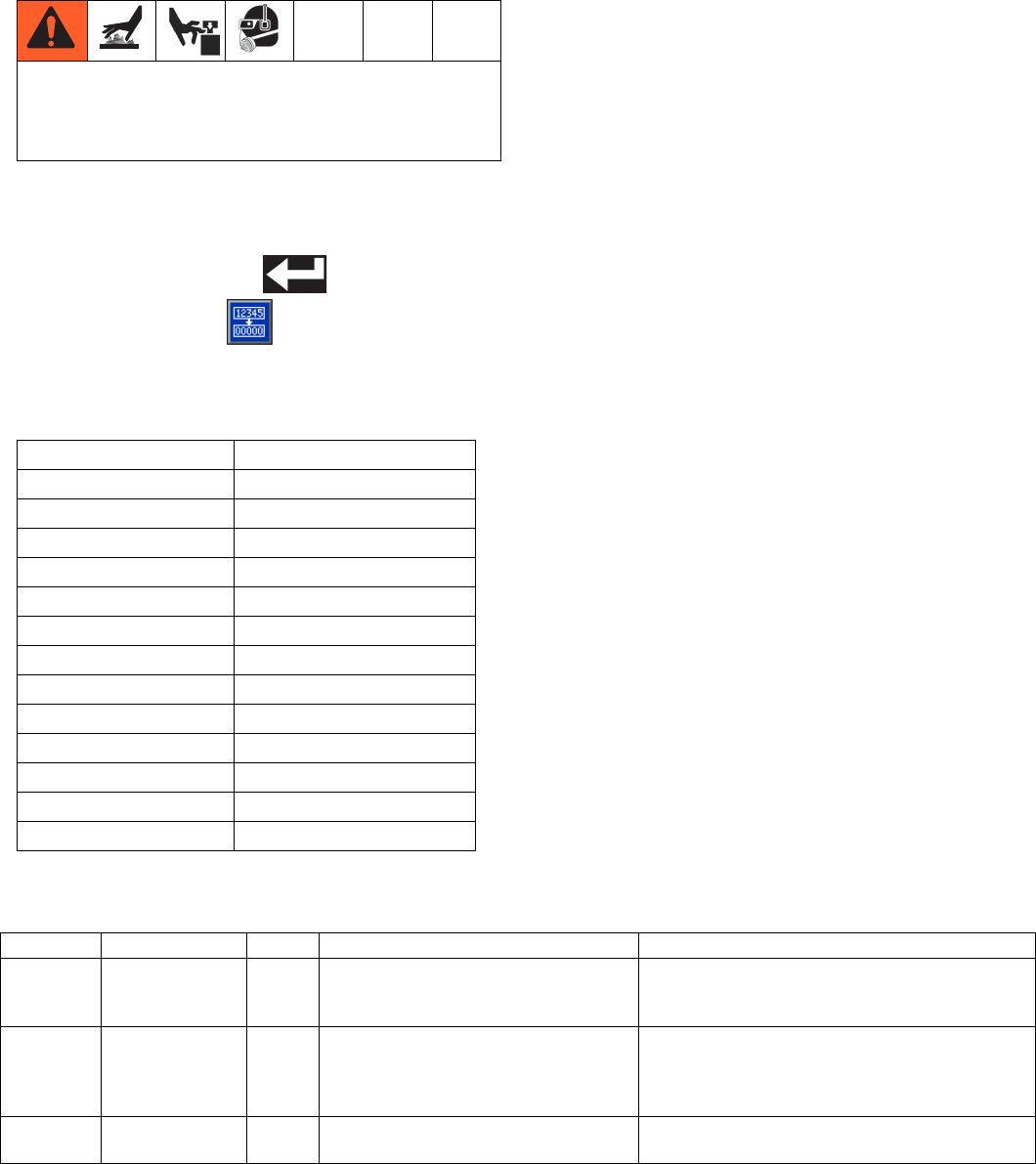

ADM Error Code Table
When an error occurs, press to acknowledge the error. If a Maintenance error occurs, navigate to the Mainte-
nance screen and press to clear the error.
The last digit of the error code indicates the melter, applicator (gun), or hose to which the error applies. The “_”
(underscore) character indicates the code applies to multiple items.
An alarm will disable the heating system and pump. A deviation or advisory will not disable the heating system and
pump.
To avoid injury due to unexpected machine operation
initiated by a remote controller, disconnect the cus-
tomer I/O cable from the system prior to troubleshoot-
ing.
Last Digit in Code Code Relates to:
0Melter
1 Applicator (Gun) 1
2 Hose 1
3 Applicator (Gun) 2
4 Hose 2
5 Applicator (Gun) 3
6 Hose 3
7 Applicator (Gun) 4
8 Hose 4
9 Applicator (Gun) 5
A Hose 5
B Applicator (Gun) 6
C Hose 6
Code Description Type Cause Solution
A1D0 Low Current
Melter
Advi-
sory
Melter current is less than 500mA. Faulty melter heater(s). Check heater resistance
and resistance to ground. Replace faulty
heater(s).
A1D_ Low Current
Gun X
Advi-
sory
Applicator current is less than 500mA. Faulty applicator heater. Verify applicator heater
has a minimum wattage of 90 Watts at 240 VAC.
Check heater resistance and resistance to
ground. Replace faulty heater.
A1D_ Low Current
Hose X
Advi-
sory
Hose current is less than 500mA. Faulty hose heater. Check heater resistance and
resistance to ground. Replace faulty hose.
