Accessories
333347F 101

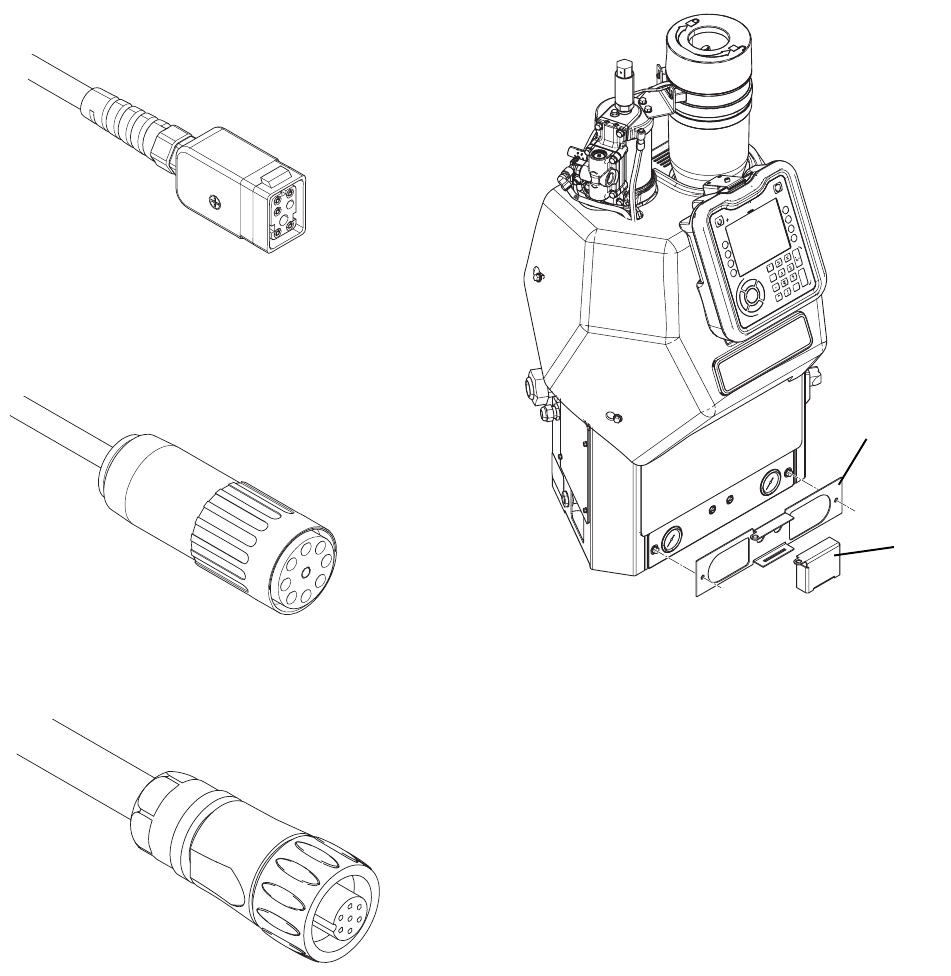

Non-Graco Applicator Adapter
Cables
16T916: For connecting to non-Graco applicators that
use a rectangular, 6-pin connector.
16T917: For connecting to non-Graco applicators that
use a circular, 9-pin connector.
16Y828: For connecting to non-Graco applicators that
use a circular, 6-pin connector. IPx6 rated.
Non-Graco Applicator Adapter Cable
Installation
See Attach Components on page 17.
Air Adjustment Lock, 24R084
Panel enables locking access to the air adjustment
screws.
Air Adjustment Lock Installation
1. Remove screws from system air panel.
2. Use screws to install panel (801).
3. Snap bracket (802) into panel (801).
4. Insert lock through hole in panel and bracket to lock
access to the air controls. Lock not included in kit.
ti21128a
ti21129a
WLD
Ref Part Description Qty
801 --- PANEL, lock, air control 1
802 --- BRACKET, lock, air control 1
WLD
NOTE: Screws are part of the base system and are
not included in the kit.
801
802
