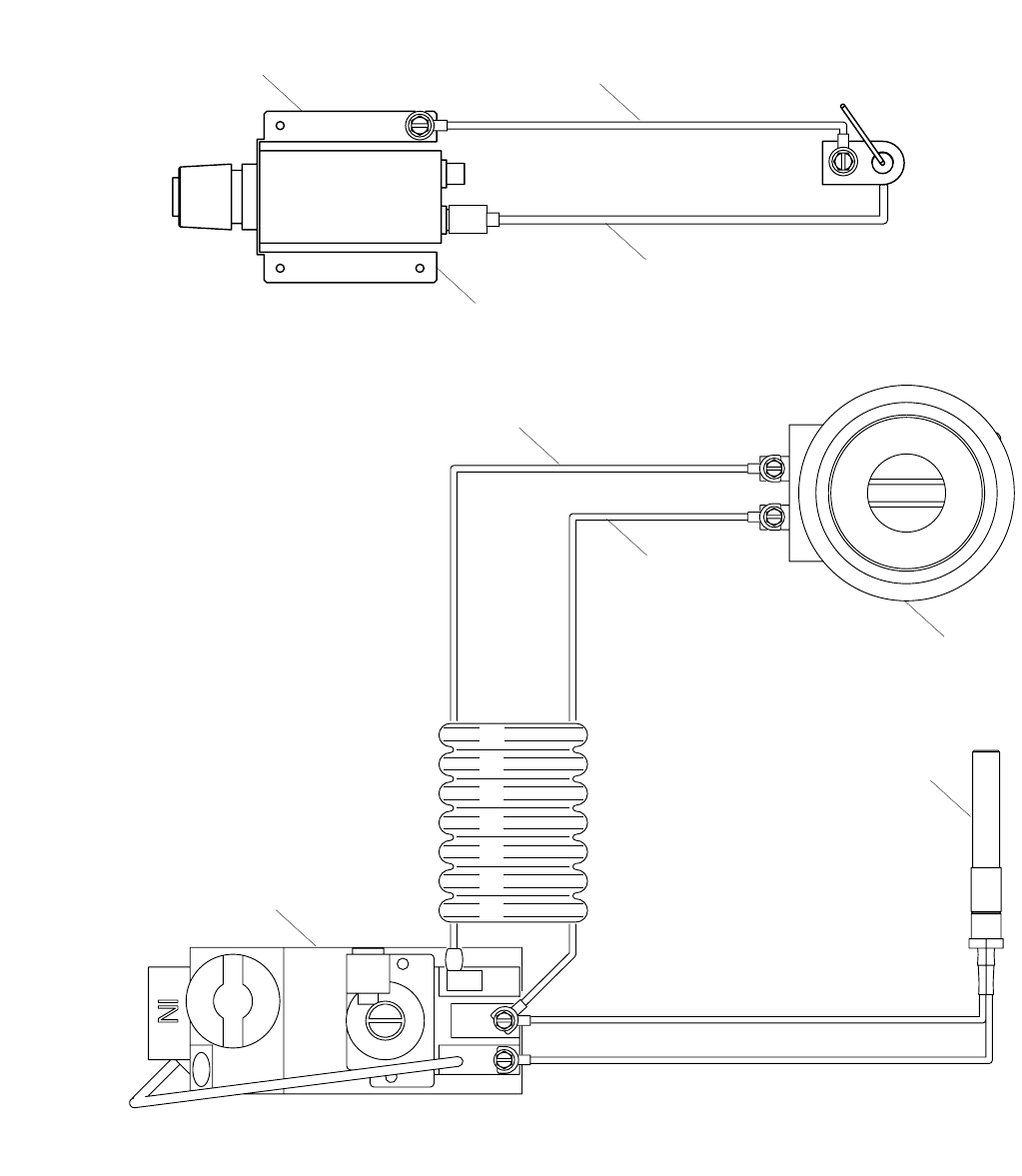

Wiring Diagram
16 313880D
Wiring Diagram
148
244
217
ti14265a
126
162
7
13
ti14266a
243
Ref. Part Description Qty.
7 122944 FITTING, thermopile 1
13 16A911 VALVE, gas LP 1
126 123085 CONTROL, igniter, pulse 1
148 122667 SCREW, drill, hex washer 3
162 24C397 KIT, control, temperature 1
217 123184 ELECTRODE 1
242 16A270 HARNESS, wire 1
243 16A271 HARNESS, wire 1
244 16A272 HARNESS, wire 1
242
