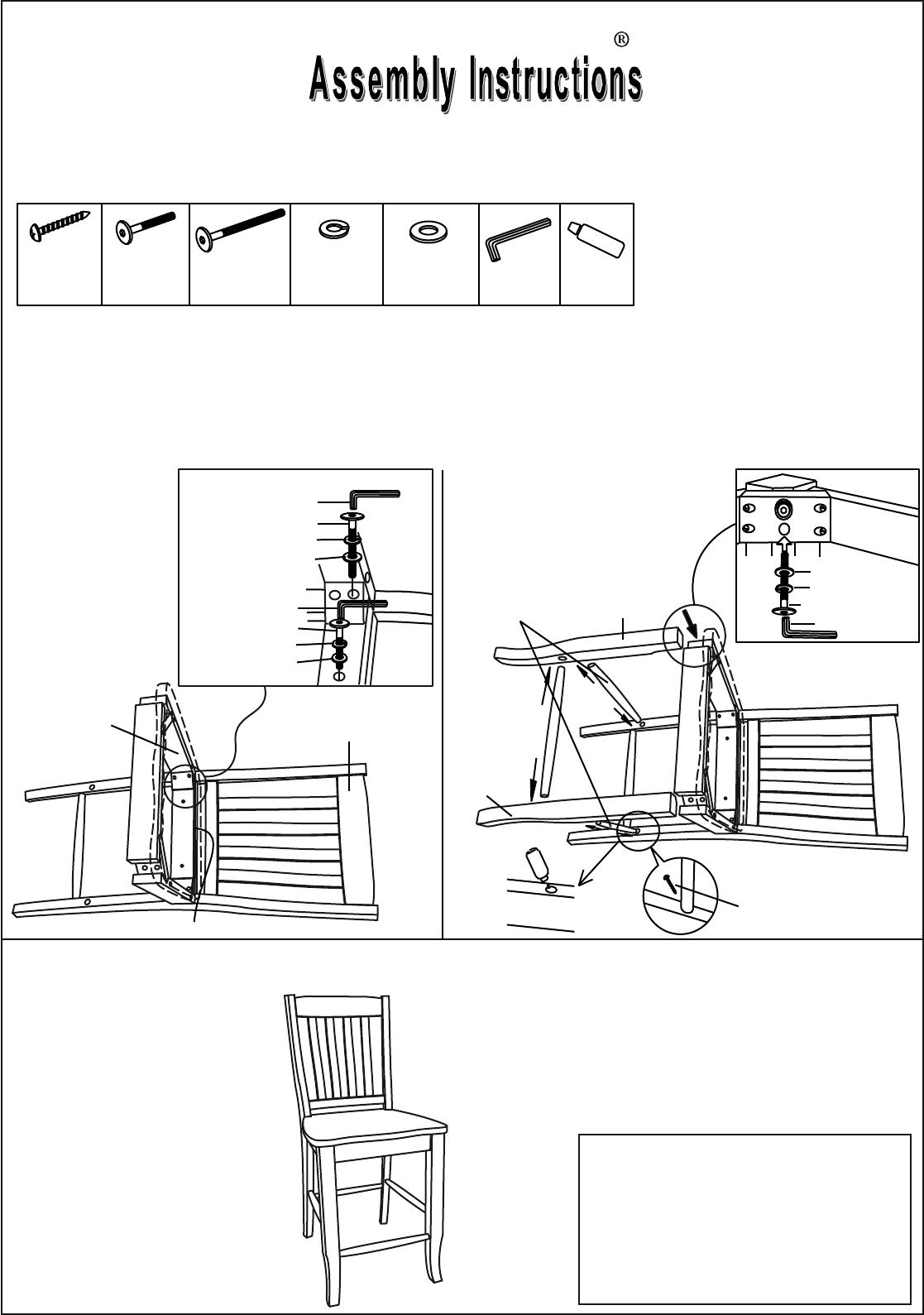

Installation & Assembly

HARDWARE PARTS :
JCBC Bolt
2 pcs
M6x40mm
Pan Head
Screw
6 pcs
8x1.1/4"
JCBC Bolt
8 pcs
M6x70mm
Lock Washer
10 pcs
M6x13mm
Flat Washer
10 pcs
M6.5x16.5mm
Allen Key
1 pce
Glue
1 pce
MADE IN MALAYSIA
Page 2 of 2
Turn the chair upright. Check its balance and tighten all screws and bolts to complete the assembly.
STEP 3
ASSEMBLY:
1. Attach the Wood Seat with Frame to the Chair Back using the provided hardware as shown in Fig 1.
2.Attach side Stretcher (Left/Right) to Chair back using the provided hardware as shown in Fig 2.2.
Attach Front Stretcher to front legs using the provided hardware as shown in Fig.2.
Attach Front legs (Left/RIght) to Wood Seat with Frame using the provided hardware as shown in Fig2.1.
Chair Back
Dowel
STEP 1
(Fig 1)
Allen Key
JCBC Bolt (70 mm)
Lock Washer
Flat Washer
Allen Key
JCBC Bolt (40 mm)
Lock Washer
Flat Washer
(Fig.1.1)
(Fig.1.2)
Box
System
Assembly
Flat Washer
Lock Washer
JCBC Bolt (70 mm)
Allen Key
(Fig.2.1)
STEP 2
Apply Glue and insert stretcher
with screw holes facing down.
Left Leg
Left & Right
Side Stretcher
Right Leg
Front
Stretcher
(Fig 2)
Apply Glue
CARE INSTRUCTION
~ Be sure to use the same type of polish consistently.
Your furniture will appear cloudy or streaky if oil
based or wax based polishes are interchanged.
~ Spray your furniture surface evenly. Wipe in a
circular motion with a soft clean cloth.
IMPORTANT NOTE :
~ Please keep all hardware out of the reach of
children.
(FIG.2.2)
Pan Head Screw
RAKE BACK BARSTOOL
