Datasheet

audio
GAC-2/foil CE halogenfree
Double shielded non corrosive installation cable
12
The European Choice in Professional Audio Wiring double shieldeddouble shielded
Construction
Technical Specifications
Ordering Data
audio
Foil shielded non corrosive installation cable
13
The European Choice in Professional Audio Wiring double shieldeddouble shielded
ConstructionTechnical Specifications
Ordering Data
FRNC
FRNC
FRNC
*
* FR NClame etarded on orrosive = Flame retarded per IEC-332-1 test standard
Order No. Type ø mm Colour Spool Size Weight /Spool Shipping Unit
10205 GAC-2/foil CE 3.0 black 800 m 16.5 kg 2 x 800 m
10206 GAC-2/foil CE 3.0 black 300 m 5.1 kg 4 x 300 m
Conductor resistance < 85 Ohm /km
Shielding resistance < 65 Ohm /km
Capacitance cond /cond < 75 nF /km
Capacitance cond /shield < 140 nF /km
Test voltage cond /cond 500 V eff.
Test voltage cond /shield 1500 V eff.
Temperature range (flex) - 5° to +50° C
Temperature range (fix) -30° to +70° C
Foil shielded halogen free installation cable using 7 x 0.20 mm tinned wires for IDT. Designed for wiring balanced
audio signals in a metal environment.
Aluminium foil is melt with the jacket and will come off automatically. The twisting of each of the 7 strands is so tight
that once peeled the insulation of the strands do not come apart and the cable can be installed without additional
handling.
The non corrosive material chosen, allows this cable to be used for fixed installations in public buildings
and in governmental installations where halogen free products are demanded. The jacket is
made of flame retarded polyolefine material.
1 Jacket Polyolefin, ø 3.0 mm, black
2 Shield Aluminium-Polyester foil
3 Drain wire Stranded tinned OF copper wires, 7x0.20 mm (0.22 mm²)
4 Insulation PE, ø 1.1 mm twisted, black and red conductors
5 Conductor Stranded tinned OF copper wires, 7x0.20 mm (0.22 mm²)
Balanced
Installation
Halogen free
GAC-2/1 CE halogenfree
* FR NClame etarded on orrosive = Flame retarded per IEC-332-1 test standard
Order No. Type ø mm Colour Spool Size Weight /Spool Shipping Unit
10306 GAC-2/1 CE 3.5 black 300 m 6.3 kg 4 x 300 m
Conductor resistance < 92 Ohm /km
Shielding resistance < 20 Ohm /km
Capacitance cond /cond < 75 nF /km
Capacitance cond /shield < 130 nF /km
Characteristic impedance at 20 kHz 145 Ohm
Test voltage cond /cond 500 V eff.
Test voltage cond /shield 2000 V eff.
Operating voltage low voltage
Temperature range (flex) - 5° to +50° C
Temperature range (fix) -30° to +70° C
Professional halogen-free installation cable like GAC-2/1 with PE-insulation for low capacity. Ideal for fixed
installations and rack-wirings.
The non corrosive material chosen, allows this cable to be used for fixed installations in public buildings and in
governmental installations where halogen free products are demanded.
The jacket is made of flame retarded polyolefine material.

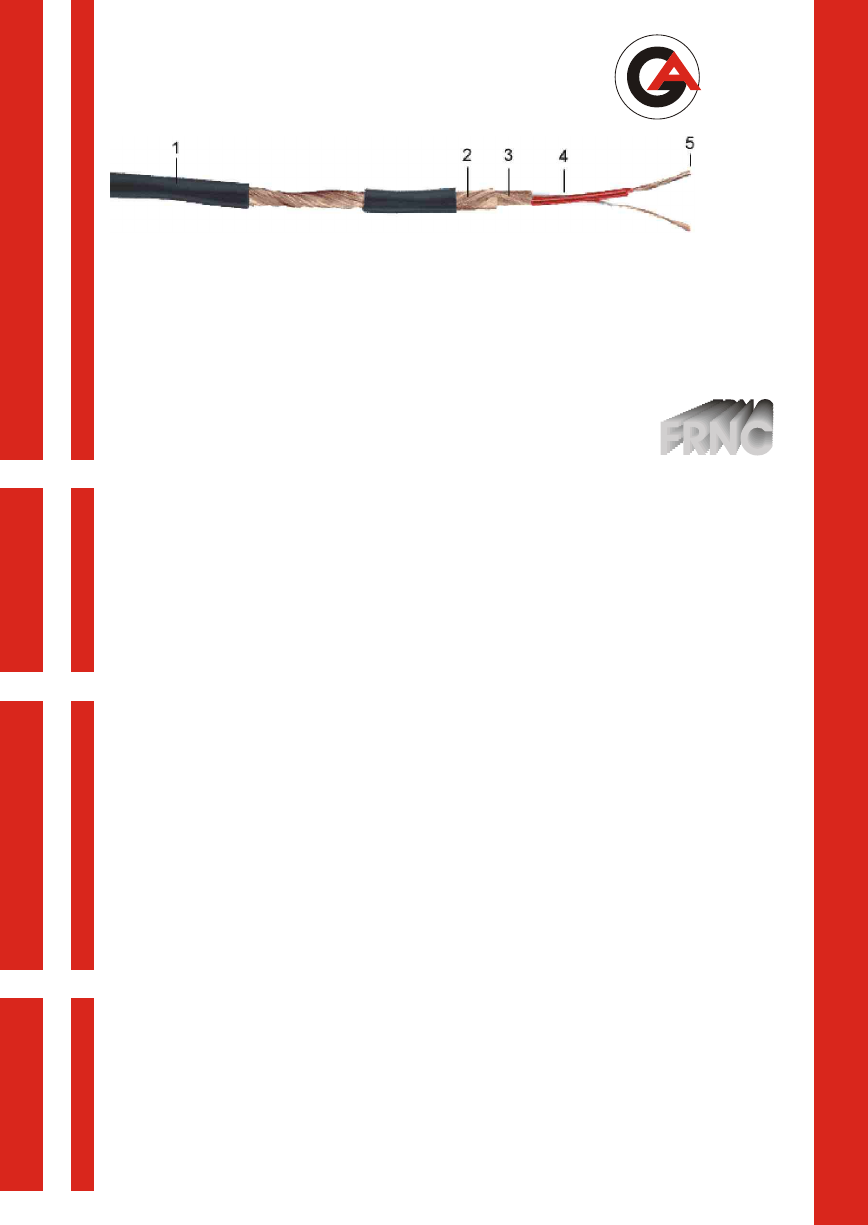

1 Jacket Polyolefine, ø 3.5 mm max., black
2 Shield No. 1 Bare OF copper wires (0.10 mm), 100% coverage
3 Shield No. 2 Bare OF copper wires (0.10 mm), 100% coverage
4 Insulation PE, ø 1.15 mm, conductors red and white wrapped
5 Conductor Stranded bare OF copper wires, 25x0.1 mm (0.20 mm²)
Double shielding
Balanced
Installation
FRNC
FRNC
FRNC
*
