Introduction
In the Generic circuit connection, the PowerVisa uses voltage channels A, B, C, and D
as differential inputs. Current probes are connected to channels A, B, C, and D.
Connection

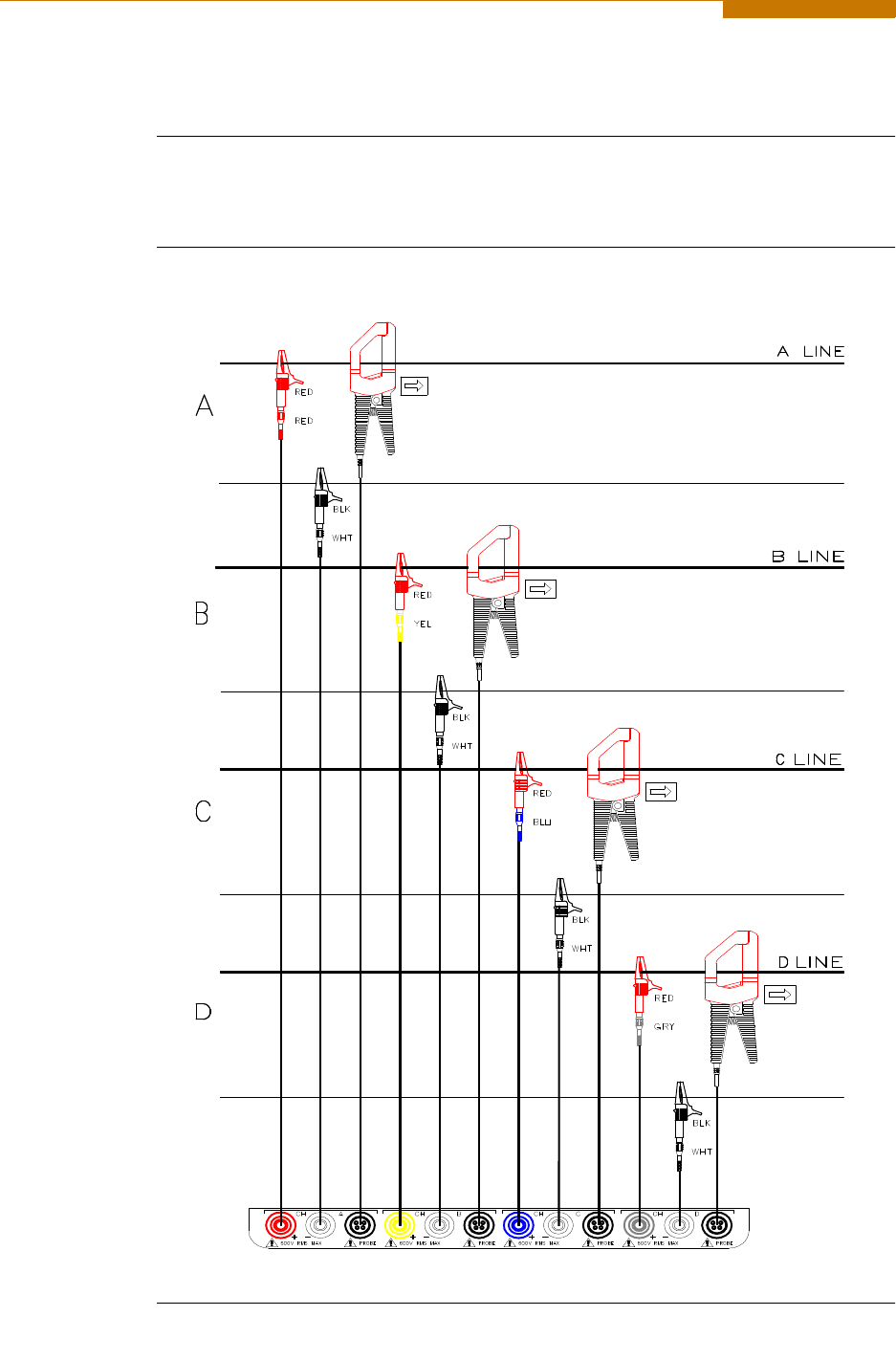

diagram
