Connecting Current Probes, continued
Typical current
probes
(continued)
Photos of DRANFLEX probes are also shown below. These types of probes are
available in lengths of 24, 36 and 48 inches and in two maximum ranges of 3000A
RMS and 6000A RMS. Contact Dranetz-BMI Customer Service Department for more
information on current probes, pricing and availability.
DRANFLEX Current Probes
DRANFLEX 3000XL/6000XL current probes allow current measurements in the range
of 0.5 to 3000 A full scale, or 0.5 to 6000 A full scale. Available in three sizes: 24”
probe length - conductor(s) up to 8” diameter; 36” probe length - conductor(s) up to 11”
diameter; 48” probe length - conductor(s) up to 17” diameter.
DRANFLEX 3-Phase Current Probes
DRANFLEX 3003XL/6003XL are 3-Phase current probes that allow current
measurements in 3 Phase circuits in the range of 0.5 to 3000 A full scale, or 0.5 to 6000
A full scale. Available in three sizes: 24” probe length - conductor(s) up to 8” diameter;
36” probe length - conductor(s) up to 11” diameter; 48” probe length - conductor(s) up
to 17” diameter.

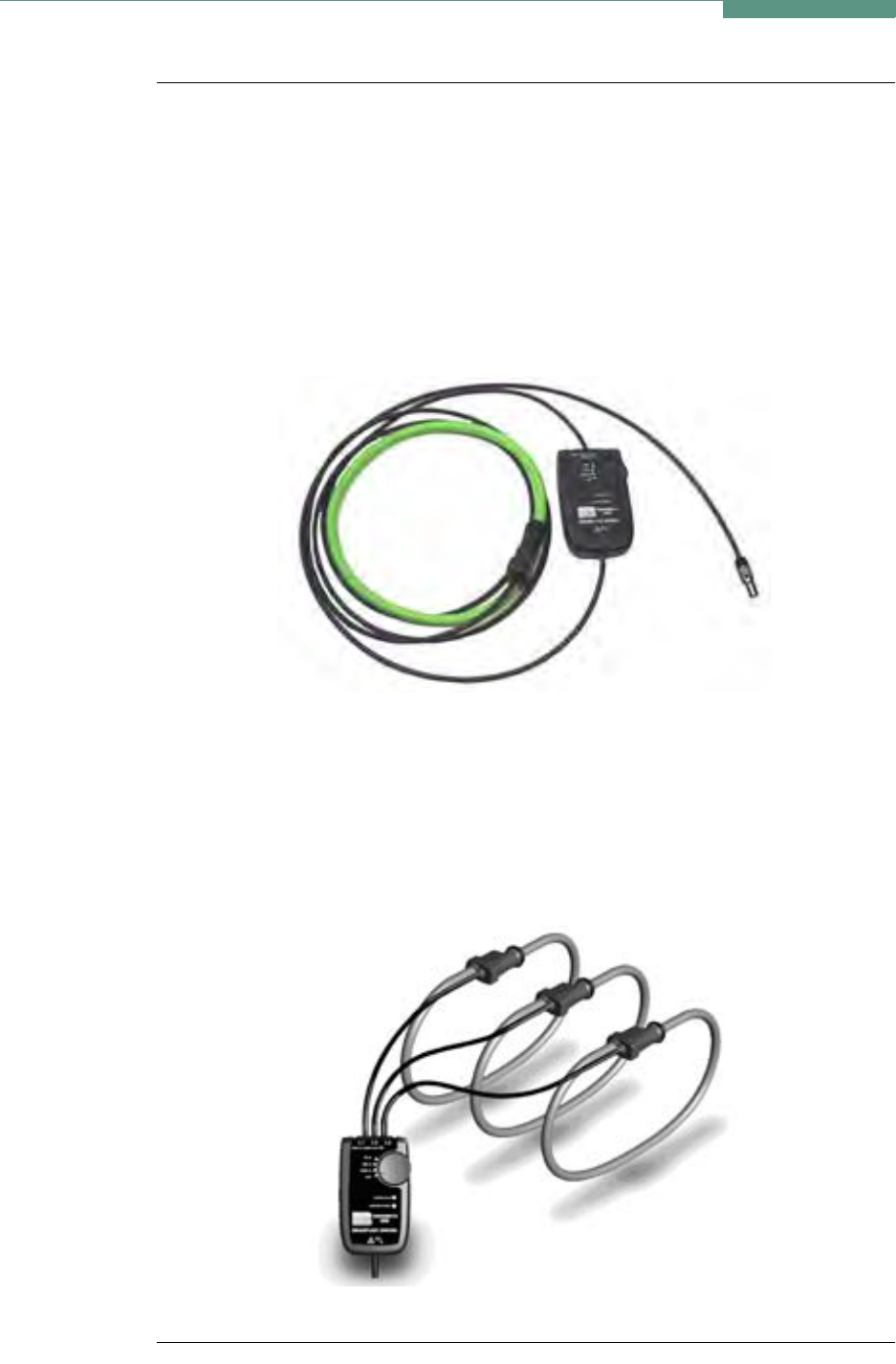

P/N 3000XL/24 (24” probe length)
P/N 3003XL/24 (24” probe length)
