CH 2/ Voltage Measurement Cables and Current Probe Connections
Typical current
probes
(continued)

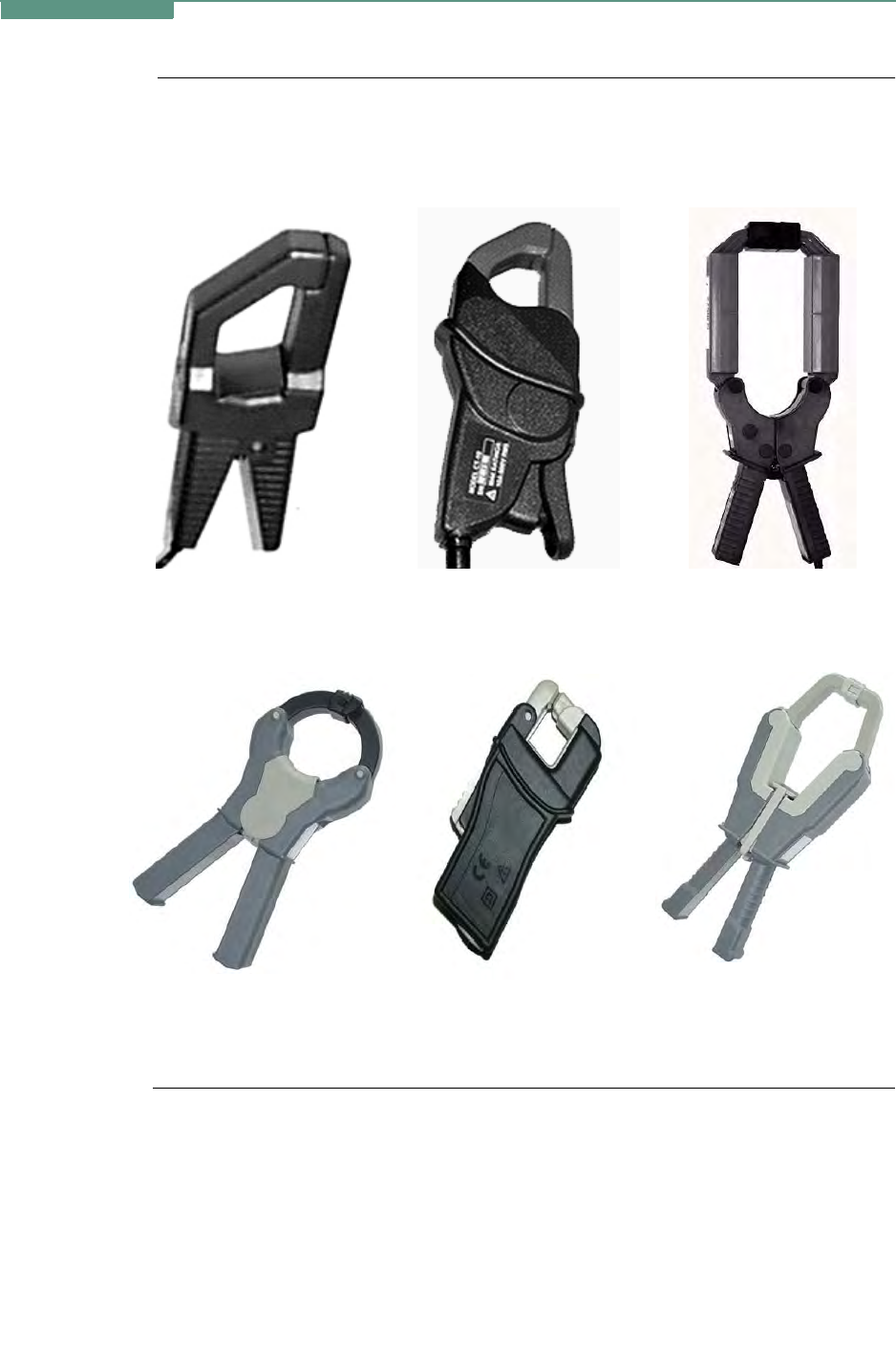

Actual photos of TR series probes and part numbers are shown below to aid users in
probe identification. Contact Dranetz-BMI Customer Service Department for more
information on current probes, pricing and availability.
Continued on next page
P/N TR-2510 P/N TR-2520
P/N TR-2500A P/N TR-2510A P/N TR-2520A
P/N TR-2500
