CH 7/ View Event Data
RMS settings
The Energy Platform provides setup options to measure rms data per second.

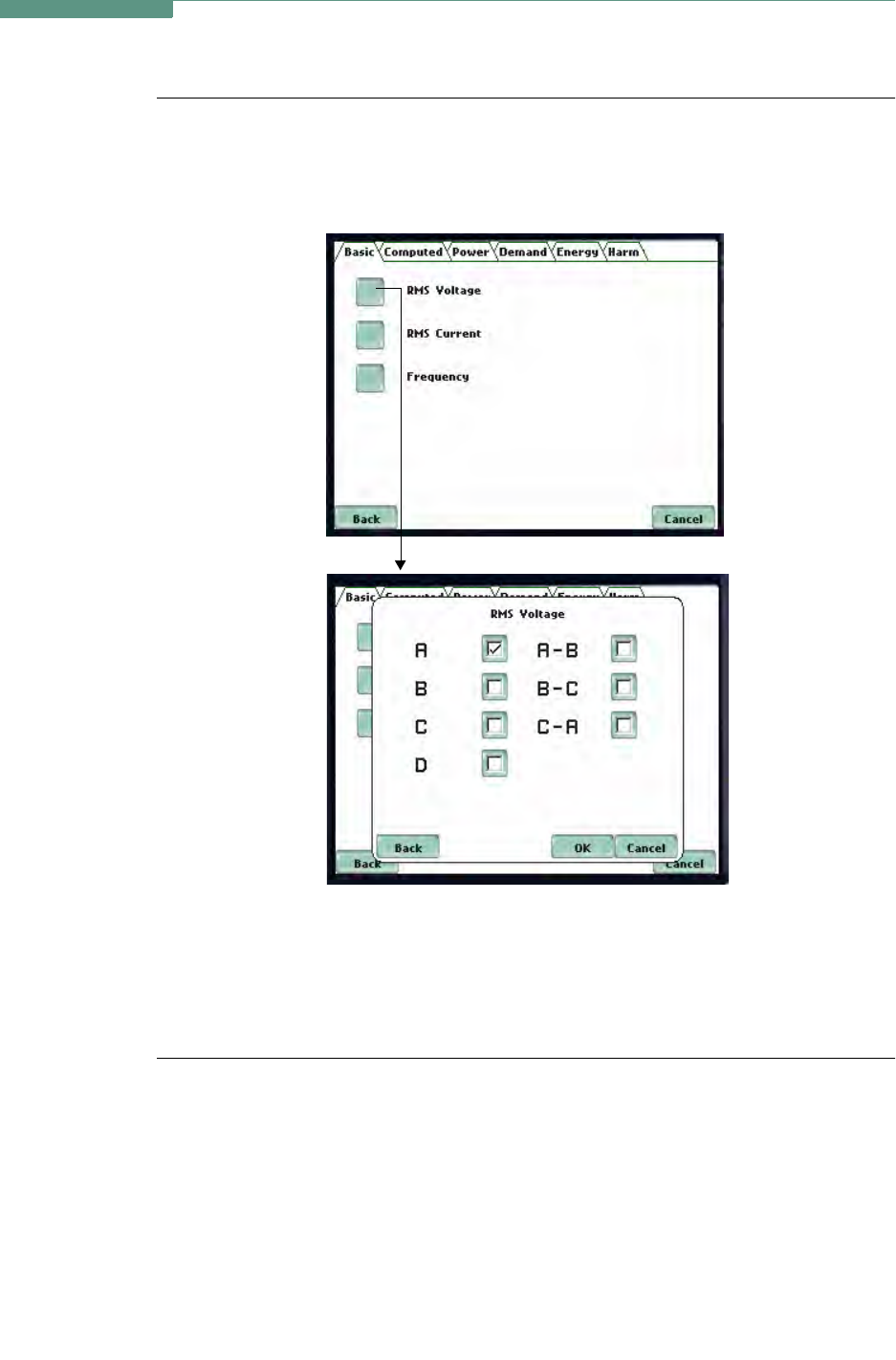

The RMS Voltage and RMS Current parameters are available under Journal Categories
- Standard List.
1-Sec RMS: Each rms value is computed over 1 second’s worth of data points (which
is 1/60th of a second @ 60 Hz).
NOTE: Data for 1-Sec sampling rates apply only to rms parameters.
EP436
EP436b
