Trend Setup, continued
Trend settings
(continued)
Action... Result...

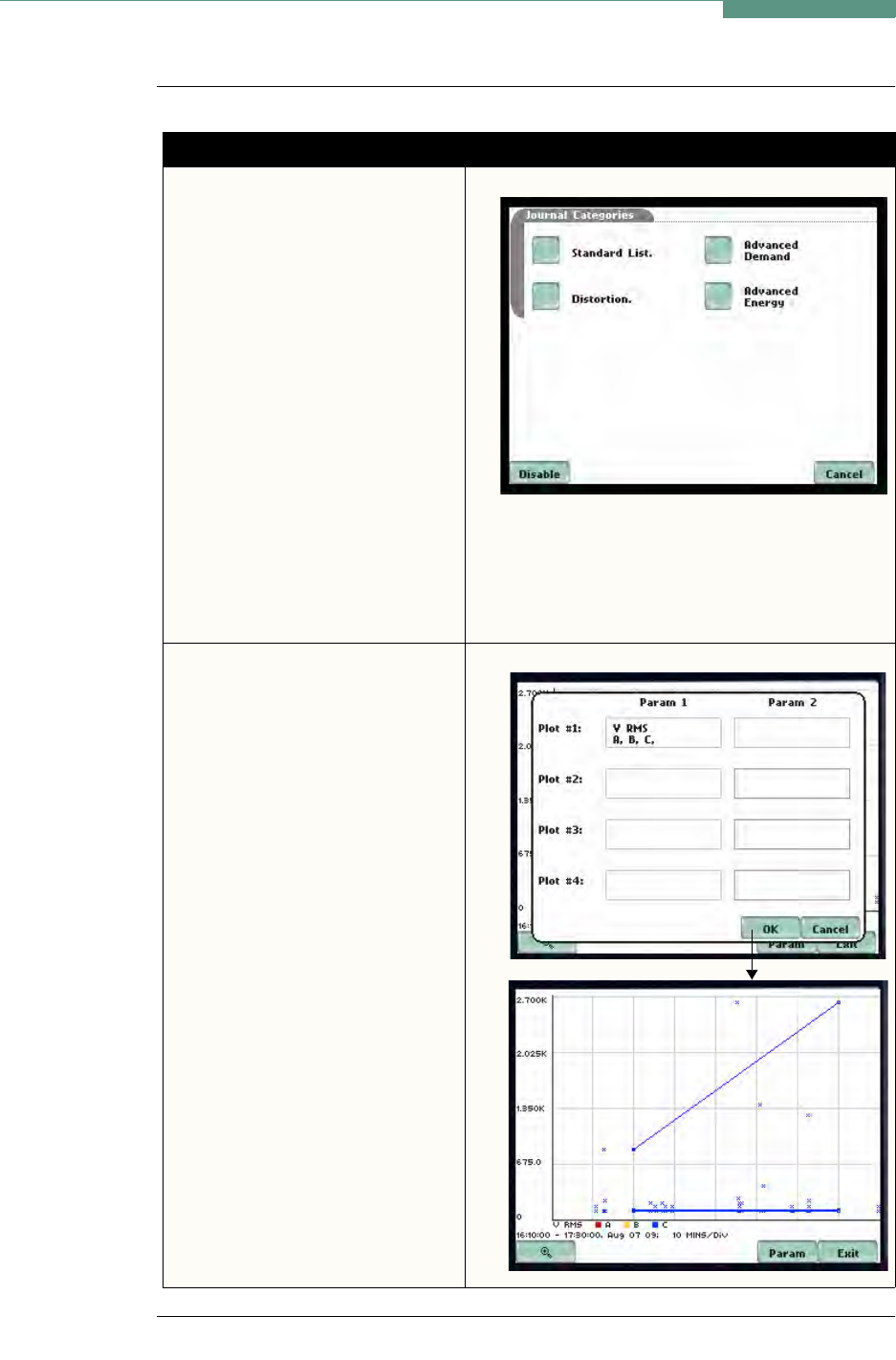

STEP 3: The Journal Categories
allow users to select parameters/
channels to trend for display.
•Press Disable to clear the
parameter display in Plot #2
(from Example in Step 2).
Proceed to Step 4.
• Users have the option to choose
a journal category from which
to select parameters/channels to
plot.
For Standard List - RMS
parameters, see RMS Settings
on page 7-9.
•Press Cancel to ignore changes
and return to the previous
screen.
EP433
STEP 4: Parameter/channels on
Plot #2 were disabled.
• Press OK to accept changes
and view new plot display. The
plot area will resize according
to the plot numbers enabled for
display. (Whereas the original
plot in Step 1 shows Plot #1
and Plot #2 on display, the
screen auto-adjusts when
parameters in Plot #2 were
disabled.)
•Press Cancel to ignore
parameter/channel changes and
return to the screen containing
the original plot.
EP434
