7-3
CH 7/ View Event Data
View data using
Events, Trend
Follow these steps to display event data.
In this chapter
This chapter covers the following topics.
Action... Result...

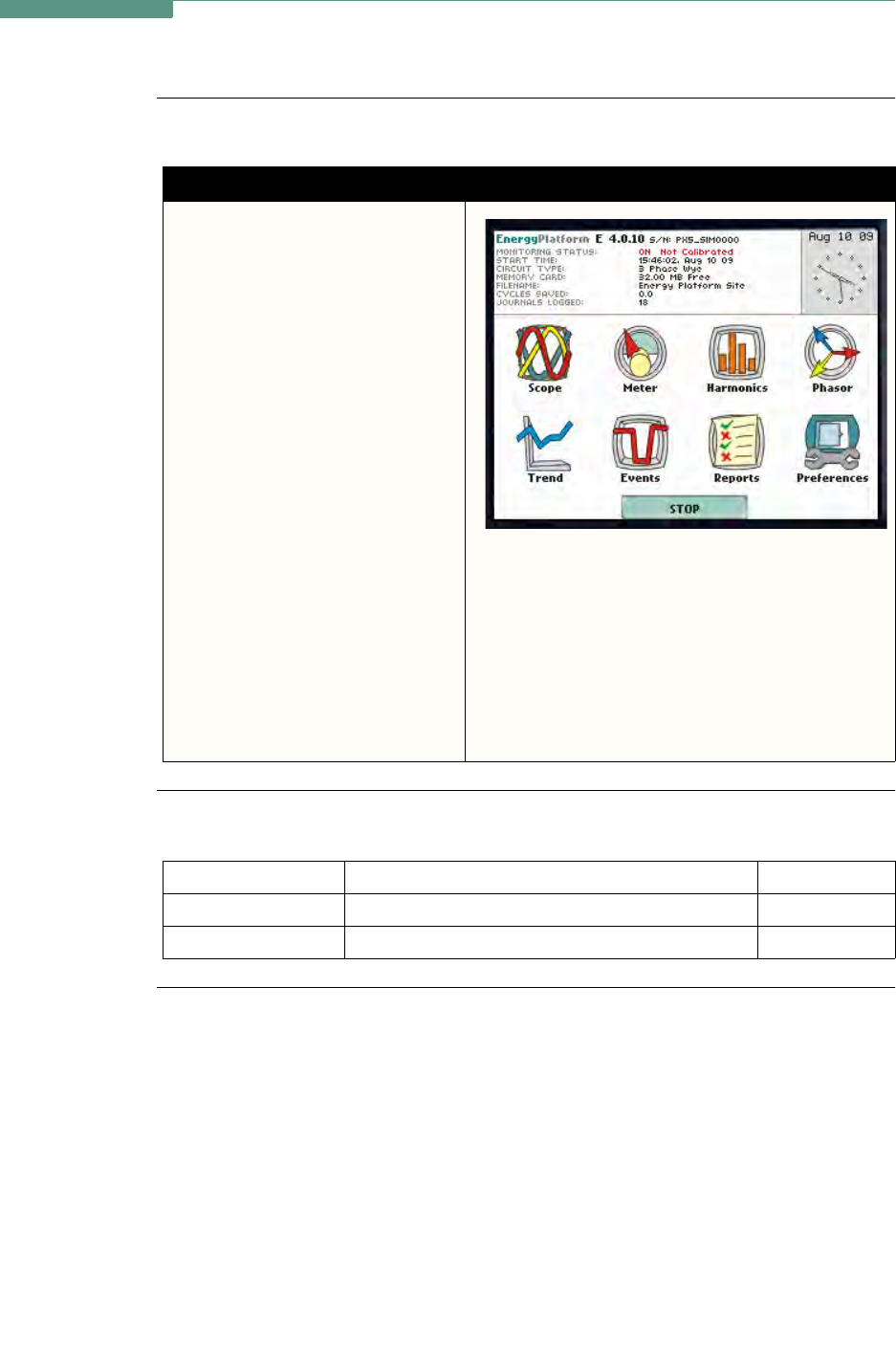

STEP 1: Events and Trend are
accessible from the Home screen.
Note that event data will be
available for display while
monitoring or upon reading a
stored file from the data card.
A monitoring status message
appears on the top section of the
screen. Refer to Chapter 5 Start
Menu - Section C Monitor Same
Circuit for the procedure on how
to capture events by turning
monitoring on.
•Press Events to view event list
display. Proceed to Section A -
Event List on page 7-4.
•Press Trend to trend journal
data and view time plots.
Proceed to Section B - Trend
on page 7-5.
EP122
Section Topics See Page
A Event List 7-4
B Trend 7-5
