RMS Variation Limit, continued
Procedure to
record rms
variation
Energy Platform allows users to enable/disable the trigger channels/parameters for rms
variations.
Action... Result...

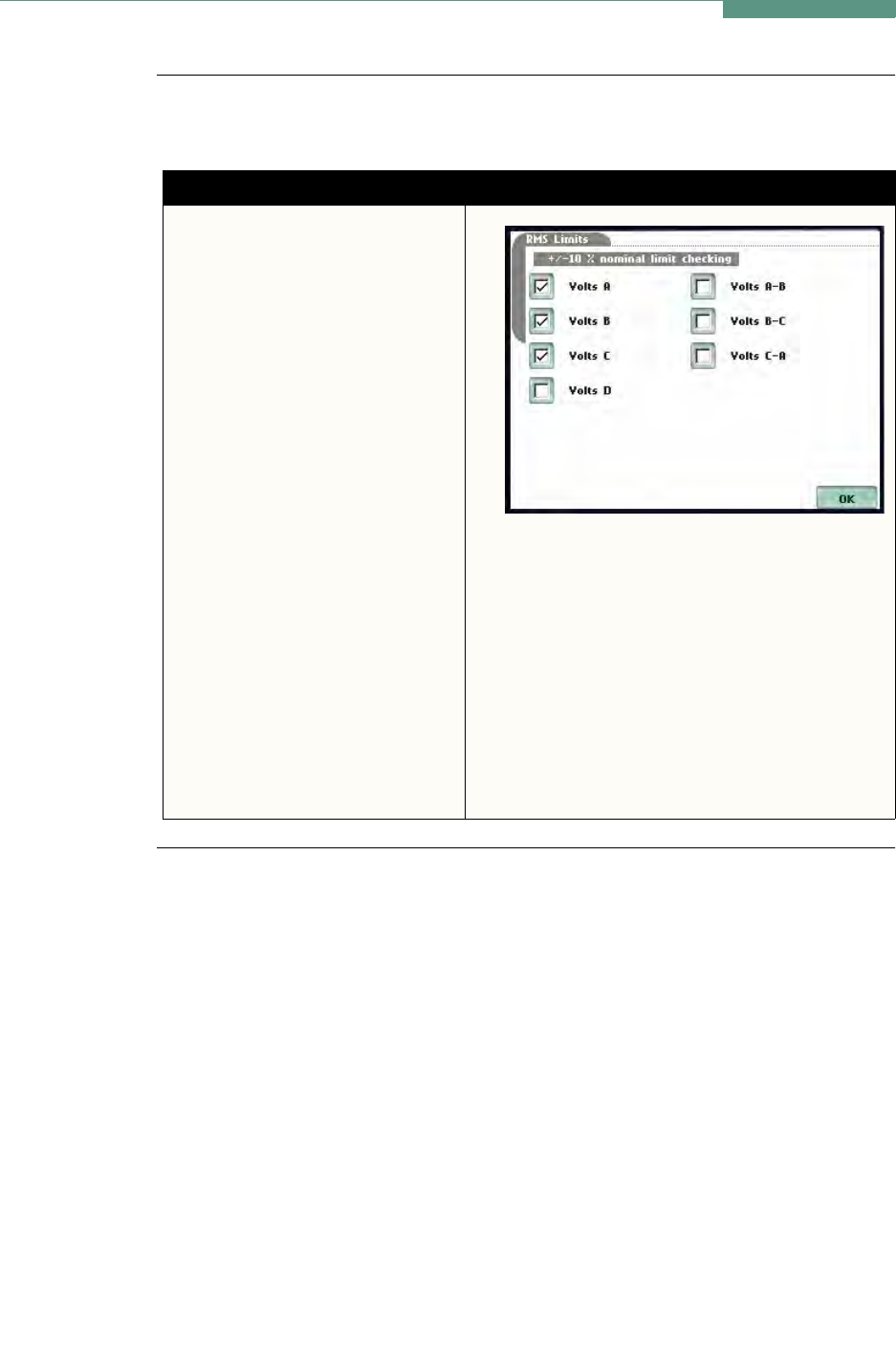

STEP 1: From the Advanced
Options screen, press RMS
Variation Limit.
The rms limits are set by the
system and not programmable by
the user.
• Users have the option to
Enable/Disable the trigger
channels/parameters set for rms
variation recording at +/- 10%
of nominal.
The enabled (checked) fields
show the channels that will
have data recorded should a
trigger occur. This prevents
recording of meaningless data
from unused (disabled)
channels.
•Press OK to accept changes in
the triggers set for rms
variation recording.
EP112_201
